Does this work with my FANUC 0-M / 0-T control?

Yes. FANUC LCD upgrade modules use the same connector pinout as the original CRT. Compatible with FANUC 0-M, 0-Mate and 0-T controls. Drop-in replacement — no parameter changes needed.

How long does installation take?

10-15 minutes. Power off the machine, unplug the old CRT, connect the new LCD module, secure with screws. No soldering required.

Image quality vs original CRT?

800x600 resolution, 350-450 cd/m² brightness, 50,000+ hr lifespan. Sharper image, no flicker, no high-voltage hazards.

What warranty and support?

2-Year warranty, lifetime technical support, worldwide shipping from Shenzhen factory.

Volume discounts available for 5+ units. Contact info@cncdisplay.com for a bulk quote.

FANUC

FANUC 0-M/0-T CRT to LCD Replacement | CNC Monitor Upgrade

Name: FANUC 0-M/0-T CRT Replacement | LCD Upgrade | Kongto
Brand: Kongto Technology
SKU: KONGTO-0M0T-LCD
Price: 255 USD
Availability: InStock

FANUC 0-M/0-T CRT to LCD replacement — 9-inch TFT, plug-and-play for FANUC 0-Mate and 0-T CNC controls. Same 20-pin Honda connector. 2-year warranty.

View Specs & Guide

$255 USD ✔️ In Stock — 2-Year Warranty

🛒 Buy Now

Unit Price:

Qty:

Ship to:

Total Wt:

Shipping: —

Total: —

Payment button loading...

🔒 Secure checkout via PayPal. Credit/debit cards accepted.

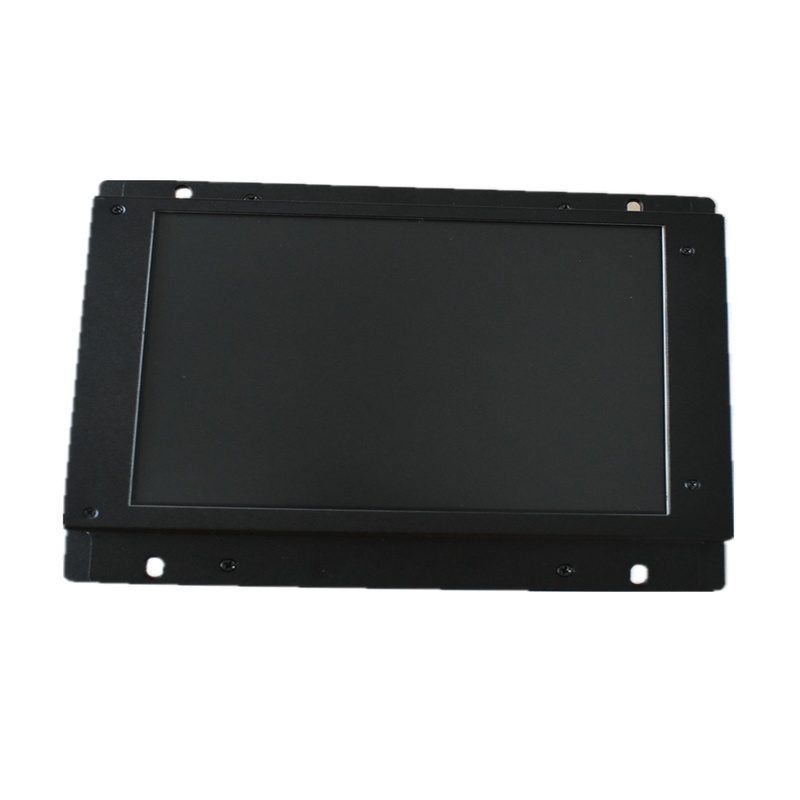

FANUC 0-M/0-T CRT to LCD replacement panel - front view

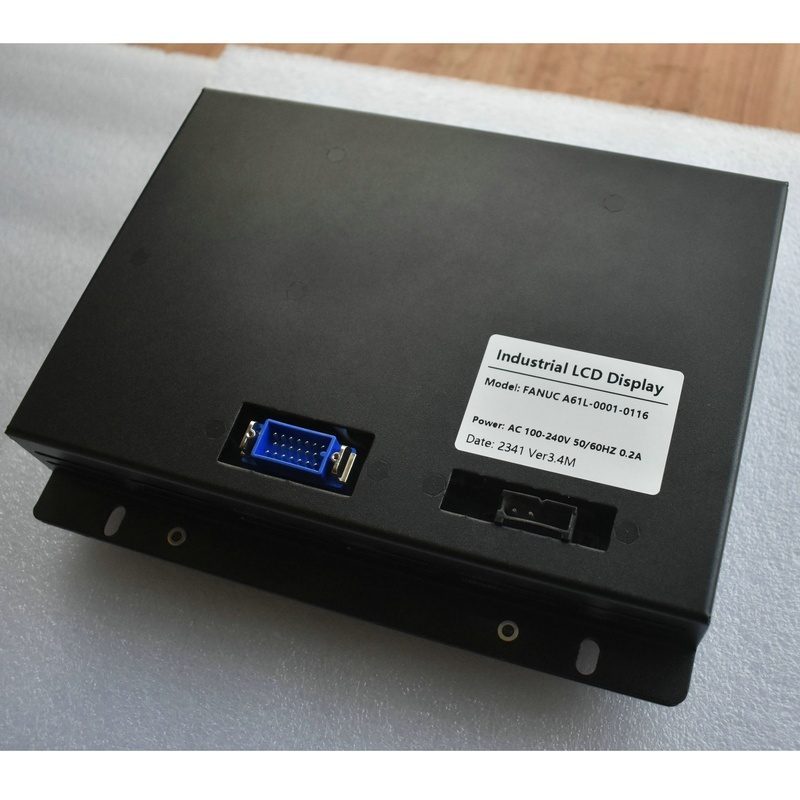

FANUC 0-M/0-T CRT to LCD replacement panel - back view

Specifications

Spec	Original CRT	Kongto LCD
Technology	9-inch Monochrome CRT	9-inch TFT-LCD Industrial Panel
Resolution	640x400 / 640x480	800x600
Brightness	~200 cd/m2	350-450 cd/m2
Lifespan	~15,000 hrs	50,000+ hrs
Power	DC 24V	DC 24V (original)
Interface	20-pin Honda MR-20M	20-pin Honda (direct compatible)
Safety	High voltage (10-15kV)	Low voltage DC
Weight	—	1.5 kg

Compatible Systems

FANUC 0-M / 0-Mate control
FANUC 0-T control
All CNC machines with FANUC 0-M/0-T series CRT display

Common CRT Failure Symptoms

Blank screen / no power — Flyback transformer failure, most common in aging CRTs
Dim or unreadable display — CRT phosphor wear after 15,000+ hours of operation
Flickering or image distortion — Capacitor degradation in sync circuits
No image / raster only — Video amplifier or electron gun failure
Intermittent display — Loose internal connections or cold solder joints

Our LCD module eliminates all CRT-related failure modes permanently. Higher brightness, lower power, no high voltage.

Frequently Asked Questions

Does this work with my FANUC control?

Is the connector compatible?

Installation time and difficulty?

Warranty and support?

What Our Customers Say

"CRT was too dim to read. LCD arrived fast, installed in 15 minutes. Crystal clear display."

— John D., USA (June 2026)

"Perfect plug-and-play. No modifications needed. Works great on our FANUC 0-Mate."

— Marco R., Milan, Italy (May 2026)

"After 20 years our CRT finally died. This LCD brought our machining center back to life."

— Akira T., Osaka, Japan (June 2026)

Warranty & Service

2-Year Warranty — Lifetime Technical Support — Worldwide Shipping
Factory direct from Shenzhen, China. Ships within 24 hours.
Email: [email protected] | WhatsApp: +86-13686889647
No CNC parameter changes needed — Plug and play, your machine programs and settings stay intact.

Ready to replace your CRT?

$255 — In Stock — Ships within 24 hours
