FANUC A61L-0001-0093 9-inch CRT to LCD Replacement (MDT947B-2A/2B, D9MM-11A)
FANUC A61L-0001-0093 8-inch TFT-LCD replacement — also written A61L 0001 0093. Factory direct, in-position swap, plug-and-play for FANUC 0/0i/16i/18i series. Also cross-referenced as MDT947B-2B / MDT947B-2A / Toshiba D9MM-11A / TX-1424AB.
$155
USD
✔️ In Stock — 2-Year Warranty
🛒 Buy Now
1
—
—
🔒 Secure checkout via PayPal. Credit/debit cards accepted.
Specifications
| Spec | Original CRT | Kongto LCD |
|---|---|---|

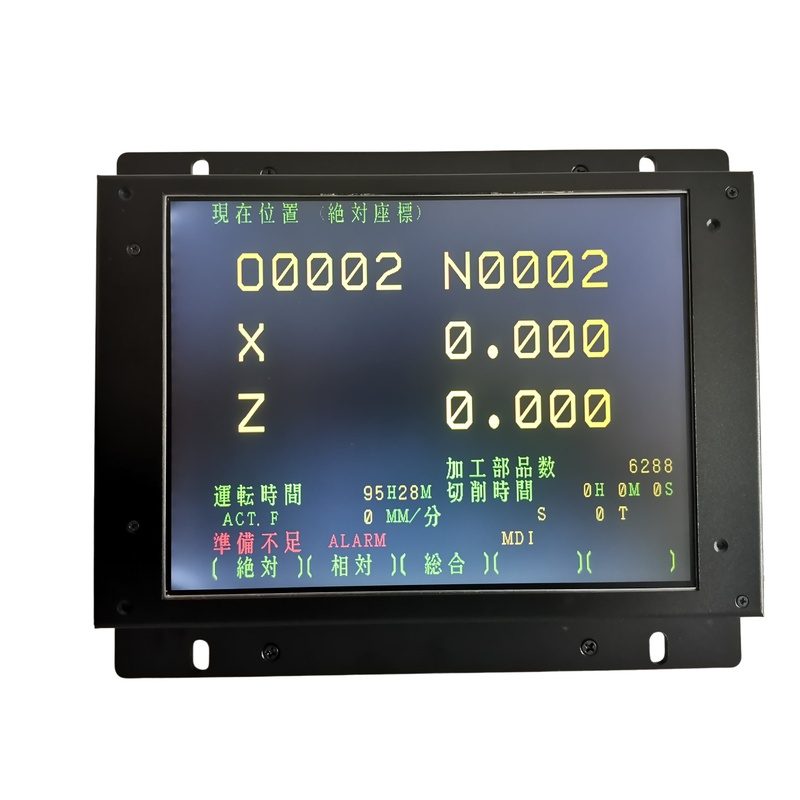

| Technology | 9-inch Monochrome CRT | 8-inch TFT-LCD Industrial Panel |
| Resolution | 640x400 / 640x480 | 800x600 |
| Brightness | ~200 cd/m2 | 350-450 cd/m2 |
| Lifespan | ~15,000 hrs | 50,000+ hrs |
| Power | DC 24V | DC 24V (original) |

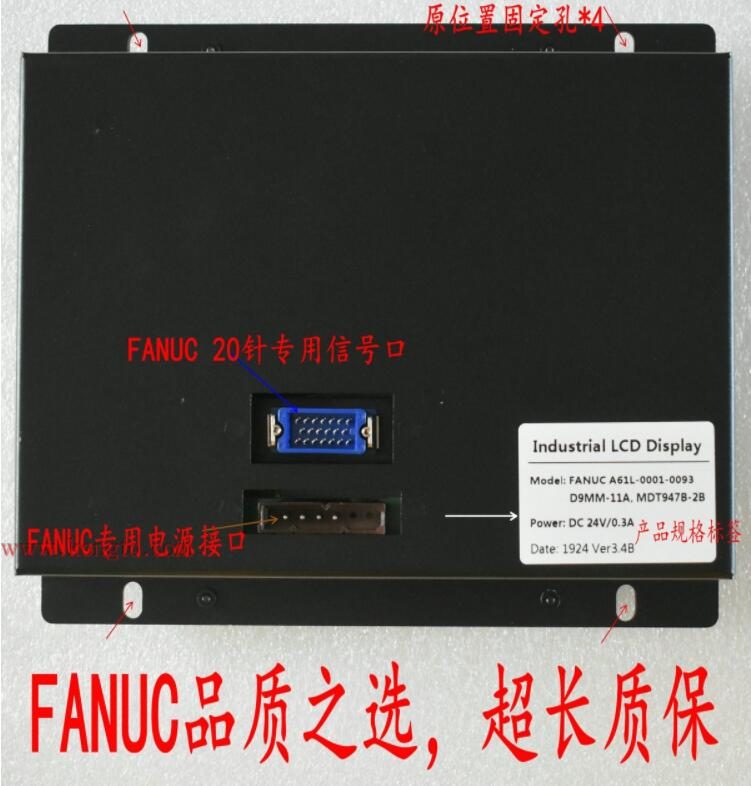

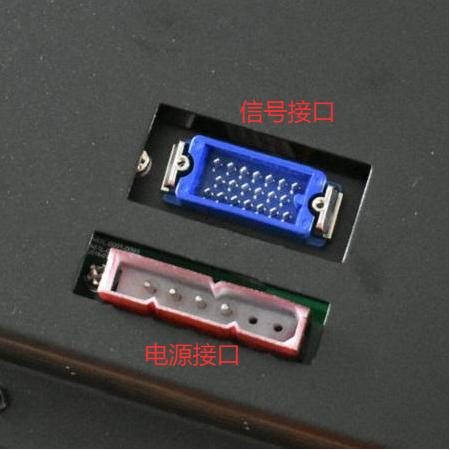

| Interface | 20-pin Honda MR-20M | 20-pin Honda (direct compatible) |
| Safety | High voltage (10-15kV) | Low voltage DC |
| Weight | — | 1.5 kg |
Market Price Comparison
| Supplier | Form | Price | Notes |
|---|---|---|---|
| Kongto Technology (CN) | LCD module, factory direct | $155 | 2-year warranty, ships in 24h from Shenzhen |
| Maxgeek (AliExpress) | LCD module | $188.85 | 62 sold, 4.8/5 rating |
| DNC Electronics (UK) | LCD module | £675 | 2-year warranty, UK supplier |
| CNC-Shopping (US) | CRT or LCD (new/used) | from $666 | 9/12/14-inch FANUC monitors |
| Monitech (US) | LCD upgrade kit | Quote required | Contact for pricing |
| Dynamic Displays (US) | 8.4" LCD | Quote required | 600:1 contrast, 450 nits |
| Fanucworld (US) | LCD replacement | Quote required | Call 615-471-9450 |
Prices from public listings verified 2026-09-02. Kongto sells factory-direct — no middleman markup, 2-year warranty included.
Compatible Systems
- FANUC Series 0 / 0-Mate / 0-TMate
- FANUC 0i-A / 0i-B / 0i-C / 0i-D
- FANUC Series 16i / 18i / 21i
- All CNC machines with FANUC A61L-0001-0093 display
OEM Part Number Cross-Reference

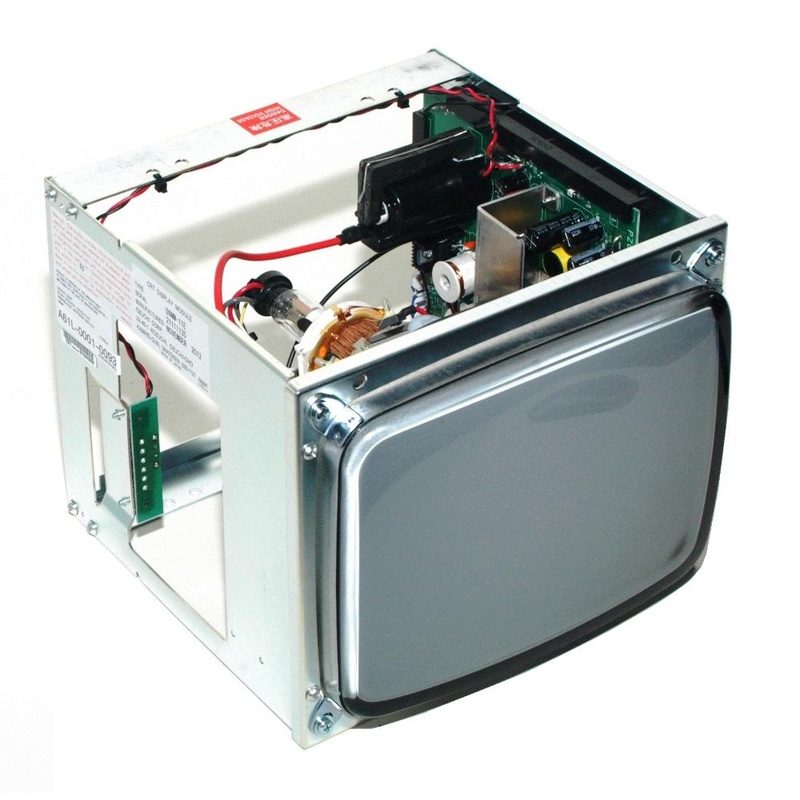

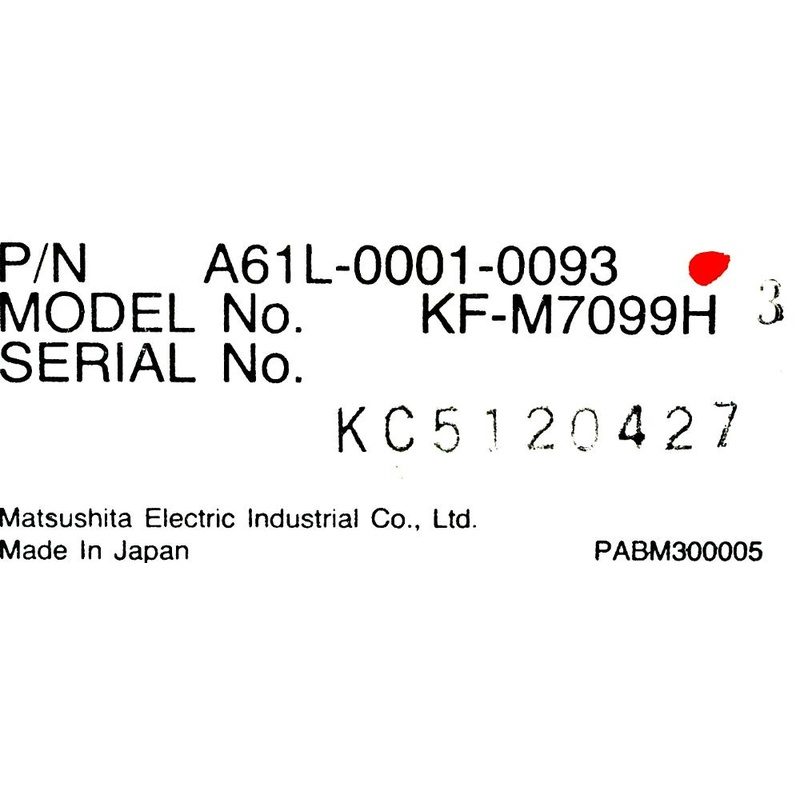

One 9-inch monochrome CRT, three OEM part numbers. They are the same display:
- FANUC A61L-0001-0093 — this page
- Matsushita KF-M7099H — the Matsushita part number for the same display
- Toshiba D9MM-11A — the Toshiba part number for the same display
Frequently Asked Questions
Does this work with my CNC machine?
Yes. Uses same connector as original CRT. Drop-in replacement. No parameter changes needed.
Installation time and difficulty?

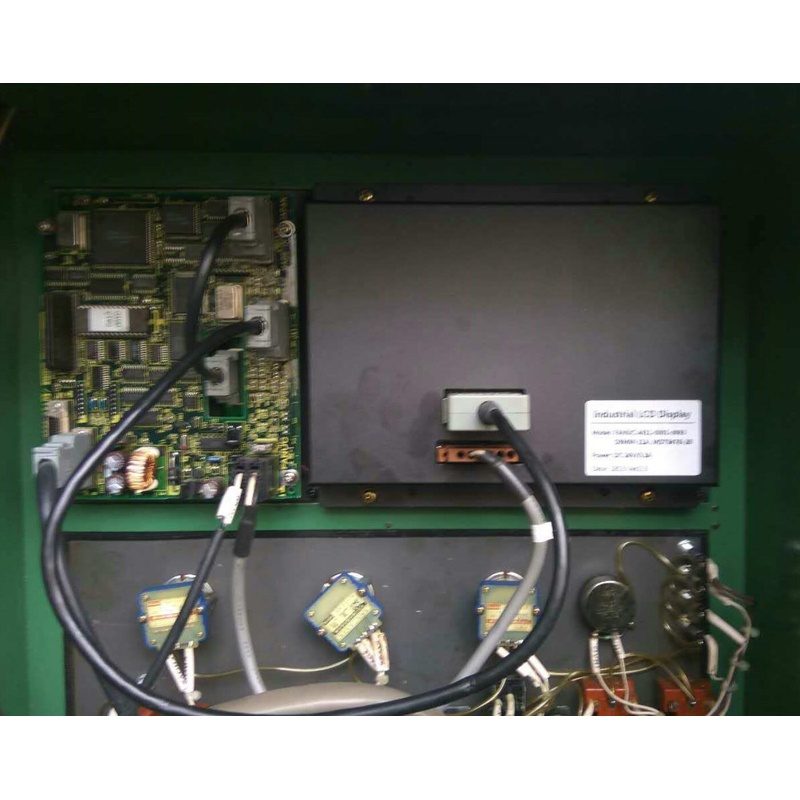

10-15 minutes: power off, remove screws, swap display, reconnect. No soldering required.
Image quality vs original CRT?
800x600 resolution, higher brightness, 50,000+ hr lifespan. Sharper image, no flicker.
Warranty and support?
2-Year Warranty, lifetime technical support, worldwide shipping from our Shenzhen factory.
Is A61L-0001-0093 the same display as Toshiba D9MM-11A?
Yes — same 9-inch display, two OEM part numbers. Toshiba D9MM-11A is the panel maker's number; FANUC A61L-0001-0093 is the FANUC number. Other cross-references: MDT947B-2A, MDT947B-2B, TX-1424AB.
Which FANUC systems use the A61L-0001-0093 / A61L 0001 0093 display?

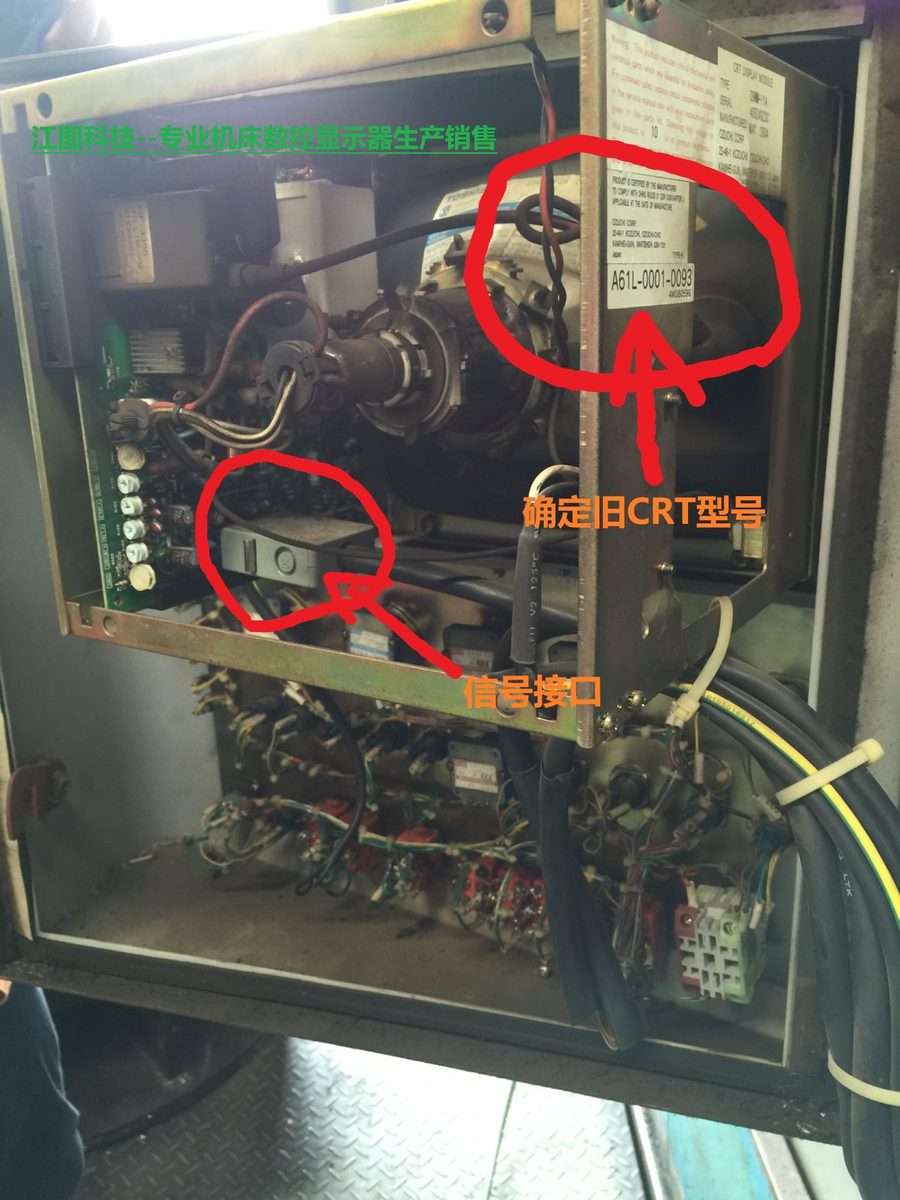

Written both ways — A61L-0001-0093 and A61L 0001 0093 are the same part. It is the 9-inch workshop-terminal display used on FANUC 0, 0i, 16i, 18i and 21i series controls. Check the label on the back of your CRT to confirm.
Warranty & Service
2-Year Warranty — Lifetime Technical Support — Worldwide Shipping
Email: [email protected] | WhatsApp: +86-13686889647
No CNC parameter changes needed — plug and play, your machine programs and settings stay intact.
CRT failure symptoms & repair cost · Customer results · Quality testing process
Email: [email protected] | WhatsApp: +86-13686889647
No CNC parameter changes needed — plug and play, your machine programs and settings stay intact.
CRT failure symptoms & repair cost · Customer results · Quality testing process
Ready to replace your CRT?
$155 — In Stock — Ships within 24 hours
