Siemens 6FC5103-0AB01
CRT to LCD Upgrade
LCD replacement module for Siemens 6FC5103-0AB01 CRT display on SINUMERIK 840D controls. DB-25 interface.
Compatible with: SINUMERIK 840D, 810D
Siemens 6FC5103 Series — Product Note
The 6FC5103-0AB01 is a CRT display unit used on SINUMERIK 840D CNC controls. It uses a DB-25 (25-pin D-sub) signal connector and typically operates on DC 24V power. Three variants exist:
- 6FC5103-0AB01 — Standard CRT display unit
- 6FC5103-0AB02 — Variant with alternative signal timing
- 6FC5103-0AB03 — Latest production variant
Important: Since this is a less common Siemens model, please contact us with your specific machine details for confirmed compatibility, pricing, and available images. We will respond within 24 hours with a matching solution.
Common Siemens 6FC5103 CRT Display Failures
The 6FC5103-0AB01 is a CRT display unit used on Siemens Sinumerik controls. Like all industrial CRTs, it develops characteristic failure modes after 20+ years:
- Blank screen / no display — Flyback transformer failure. The control powers up but the display remains dark.
- Dim or blurry image — CRT phosphor degradation or gun emission loss.
- Flickering / unstable raster — Capacitor aging in the deflection circuit.
- Distorted geometry — The image stretches, compresses, or rotates as the yoke driver components drift out of spec.

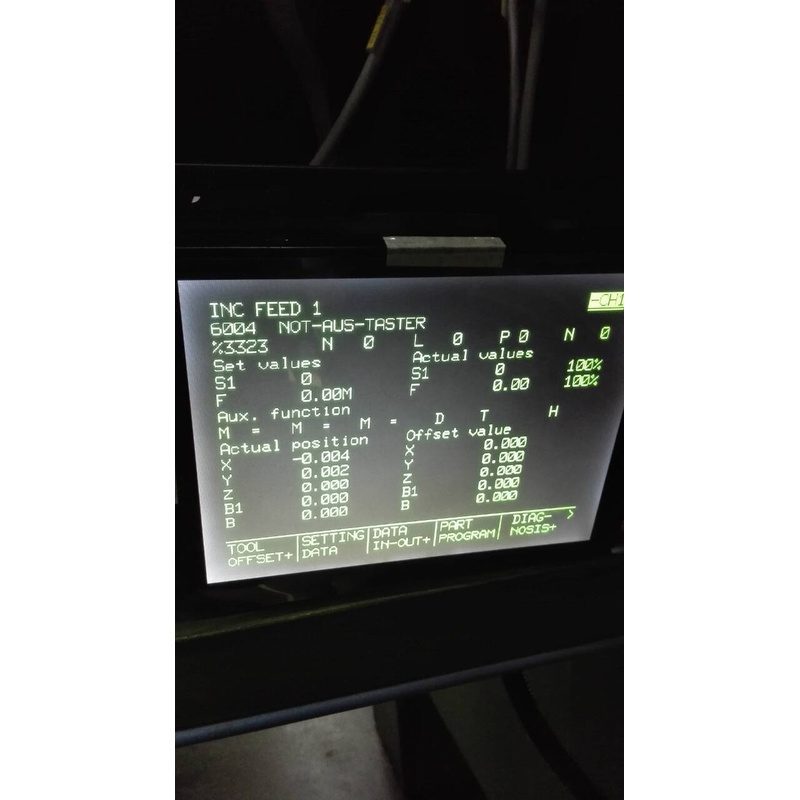

These are CRT hardware failures. The Siemens control is typically functional — our LCD module restores display without control modifications.
Signal Wiring (DB-25 Connector)
The Siemens 6FC5103 uses a DB-25 (25-pin D-sub) connector for video and sync — a different interface from the HONDA 20-pin used on most FANUC and Mitsubishi displays. Our LCD module includes the matching DB-25 connector.
| Pin | Signal | Description |
|---|---|---|
| 1 | GND | Signal Ground |
| 2 | Video | Monochrome video (TTL) |
| 3 | GND | Video Ground |
| 4 | HS | Horizontal Sync |
| 5 | VS | Vertical Sync |
| 6–9 | NC | Not Connected |
| 10 | +24V | DC Power Input |
| 11–25 | GND/NC | Spare / shield pins |
| Weight | ~3.5kg | ~3.5kg |
Note: DB-25 pinout may vary by Siemens machine variant. Verify against your machine's wiring diagram if unsure.
Cross-Reference: Similar Siemens Solutions
For the more common Siemens SINUMERIK CRT models, see these existing product pages:
- Siemens 6FC3988-7FA20 LCD Replacement — for SINUMERIK 850/880
- Siemens SINUMERIK Display Upgrade Guide — complete guide
- Siemens Upgrade Solutions Overview
Available Information
We are actively building the 6FC5103 product page. The following details are confirmed:

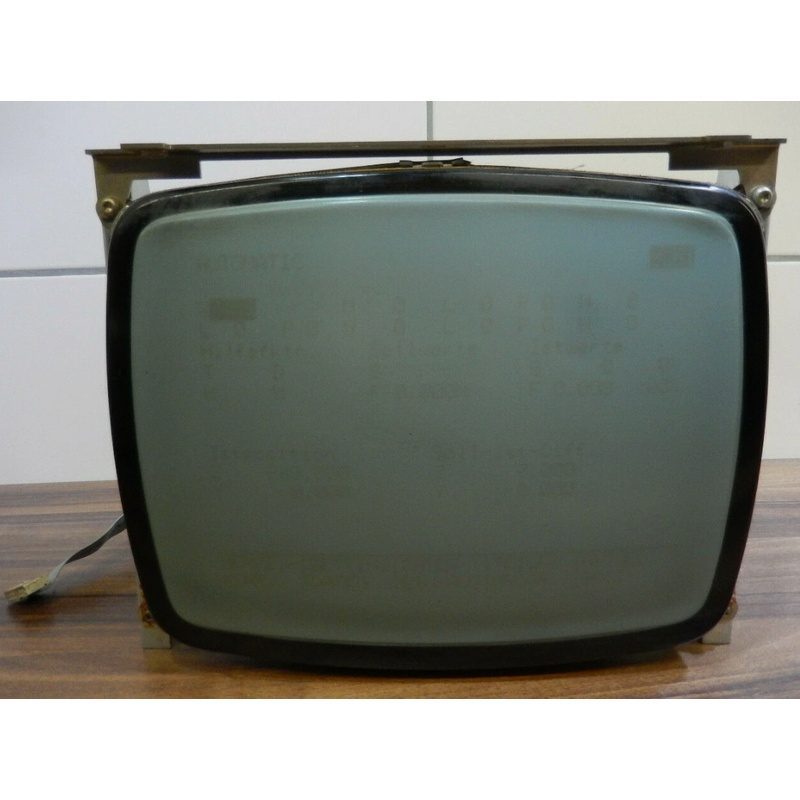

- Original: Siemens 6FC5103-0AB01 CRT Display Unit

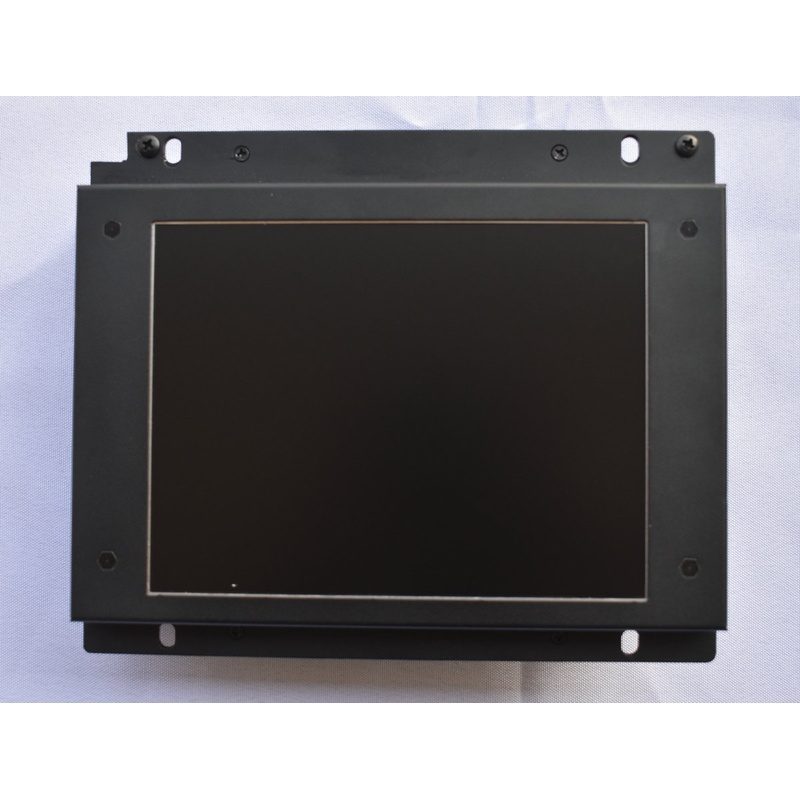

- Replacement: Kongto Industrial TFT-LCD Module
- Signal Interface: DB-25 (25-pin D-sub)
- Power: DC 24V
- Warranty: 18 months
- Status: In stock — contact for pricing
Product photos and detailed installation guide coming soon. Email us for immediate assistance.
