Siemens SM0901-579417-TA 9-Inch Monochrome Monitor
Siemens SM0901-579417-TA SINUMERIK LCD Display β From Legacy CRT to High-Performance LCD — Professional Upgrade Solution for SINUMERIK 802D / 810D / 840D / 840Di CNC Systems

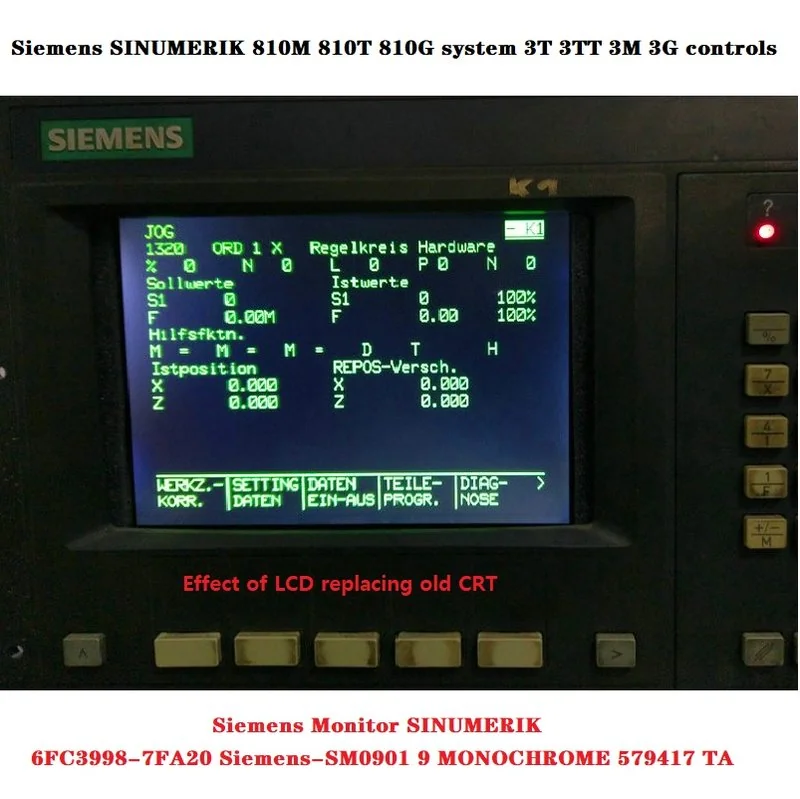

Siemens SM0901-579417-TA: 9-Inch Industrial Monochrome CRT Monitor
The Siemens SM0901-579417-TA (Siemens part number 6FC3988-7FA20) is a 9-inch monochrome CRT monitor widely used in Siemens SINUMERIK CNC systems. For over two decades, this monitor has served as the primary display interface for countless Siemens-equipped machining centers and CNC lathes worldwide.

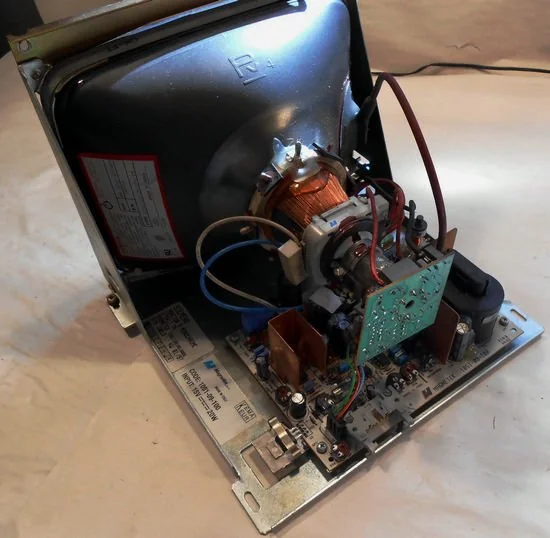

As these monitors age (many installed in the late 1990s and early 2000s), CRT technology limitations become increasingly apparent: electron gun aging, phosphor degradation, high-voltage transformer fatigue, and mechanical wear all contribute to declining display quality and reliability.

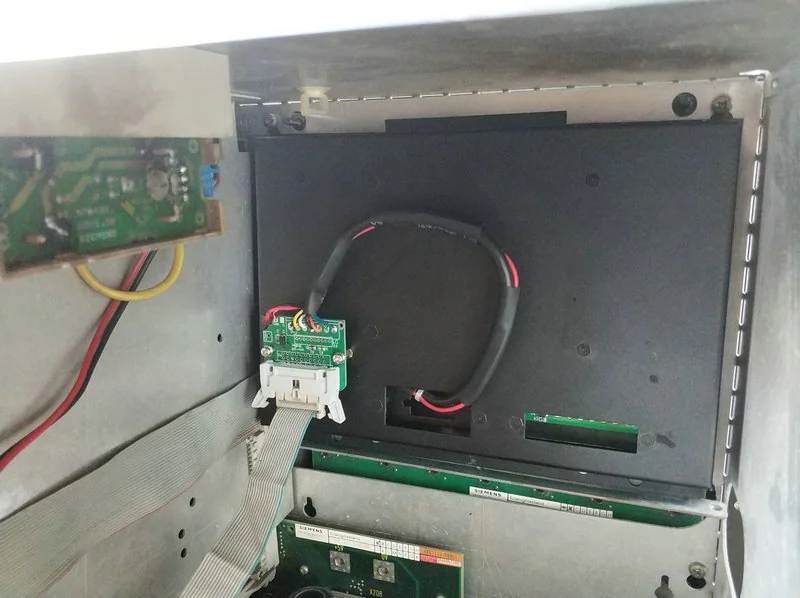

Whether your system is a SINUMERIK 802D, 810D, 840D, or 840Di, the SM0901-579417-TA / 6FC3988-7FA20 can be directly replaced with our TFT LCD upgrade kit — no modification to the machine cabinet or system configuration required.
Self-Diagnosis: Is Your SM0901-579417-TA Failing?
If your Siemens monitor shows any of the symptoms below, the CRT has reached end-of-life. Repairing aging CRTs is costly and yields only short-term results — replacement is the only reliable long-term solution.
Slow warm-up
Takes 5–10 minutes after power-on before the screen becomes readable; image remains unstable
Excessive dimming
Overall image is dim; maxing out brightness and contrast does not help; screen appears yellowish
Image distortion
Wavy lines, flickering, or partial display failure; text becomes difficult to read
Intermittent power loss
Monitor randomly turns off and on; requires multiple power cycles to start

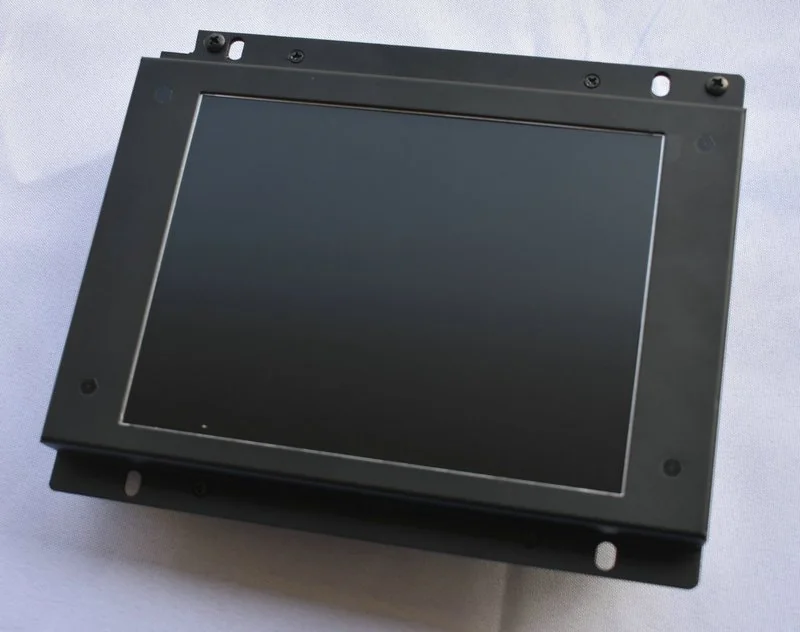

The LCD Upgrade Solution
Why Upgrade to LCD?
- Plug-and-Play — 100% compatible with original Siemens interface; no system reconfiguration needed
- Superior Image Quality — Industrial-grade TFT panel, high contrast, anti-glare, suitable for shop-floor lighting
- Long Service Life — TFT technology rated for 50,000+ hours; no electron gun or phosphor to degrade
- Low Power Consumption — Only 10W typical; 70% less power than the original CRT
- Shock & Vibration Resistant — Solid-state design; no fragile CRT glass; built for industrial environments
- Wide Operating Temperature — -10°C to 50°C; reliable in harsh conditions

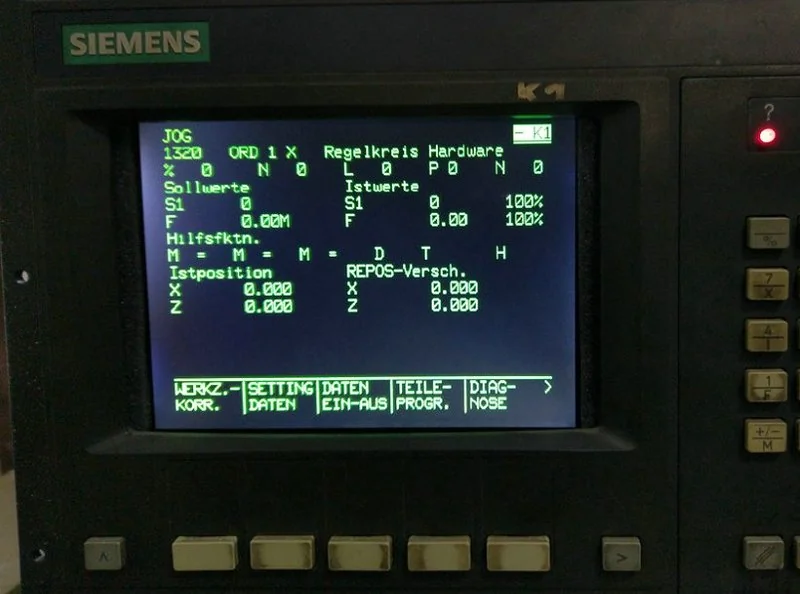

Before / After Comparison
| Feature | Original CRT (SM0901-579417-TA) | Kongto LCD Upgrade |
|---|---|---|
| Display Technology | CRT (Cathode Ray Tube) | TFT LCD (LED backlight) |
| Image Stability | Flickering, geometric distortion | Rock-steady, no flicker |
| Brightness | Dim, degrades over time | High brightness, consistent |
| Power Consumption | ~35W | ~10W |
| Expected Lifespan | 5–8 years (typical) | 10+ years (50,000+ hours) |
| Installation | Original equipment | Direct replacement, plug-and-play |
Full Specifications
| Display Type | 9-inch TFT Monochrome LCD |
| Resolution | 800 × 600 pixels (SVGA) |
| Compatible Part Numbers | 6FC3988-7FA20, SM0901, 579417-TA |
| Compatible CNC Systems | SINUMERIK 802D, 810D, 840D, 840Di |
| Interface | Standard Siemens display interface |
| Power Input | DC 12V / 24V (model dependent) |
| Operating Temperature | -10°C ~ 50°C |
| Power Consumption | ≤ 10W |
| Backlight Lifespan | 50,000+ hours |
| Installation | Direct replacement, plug-and-play |
Compatible SINUMERIK Systems — Detailed Reference
- SINUMERIK 802D — Entry-level CNC for standard machine tools; widely used in lathes and machining centers
- SINUMERIK 810D — Compact CNC for mid-range machine tools; commonly found in 3-axis to 5-axis machining centers
- SINUMERIK 840D — High-end CNC for complex machine tools; supports up to 31 axes; used in high-precision applications
- SINUMERIK 840Di — PC-integrated version of 840D; combines CNC and PLC in a single platform
Note: The SM0901-579417-TA / 6FC3988-7FA20 monitor is specifically designed for the above Siemens SINUMERIK systems. It is NOT compatible with Mitsubishi (M64/E60/M500/M520) or FANUC CNC systems, which use different display interfaces.
Why Choose Kongto Technology?
- Industrial-Grade Quality — Built to withstand harsh factory environments (dust, vibration, temperature swings)
- 100% Compatibility Guaranteed — Every unit is tested with real Siemens SINUMERIK systems before shipment
- Plug-and-Play Installation — No system modification, no software changes, no parameter adjustments
- Technical Support — Expert support team with 10+ years of CNC display upgrade experience
- Warranty — 2-year warranty with free technical support
- Stable Supply — In stock; fast shipping worldwide
