Siemens 579417-TA (SM0901) 9-inch CRT to 8-inch LCD | OEM Label Cross-Reference

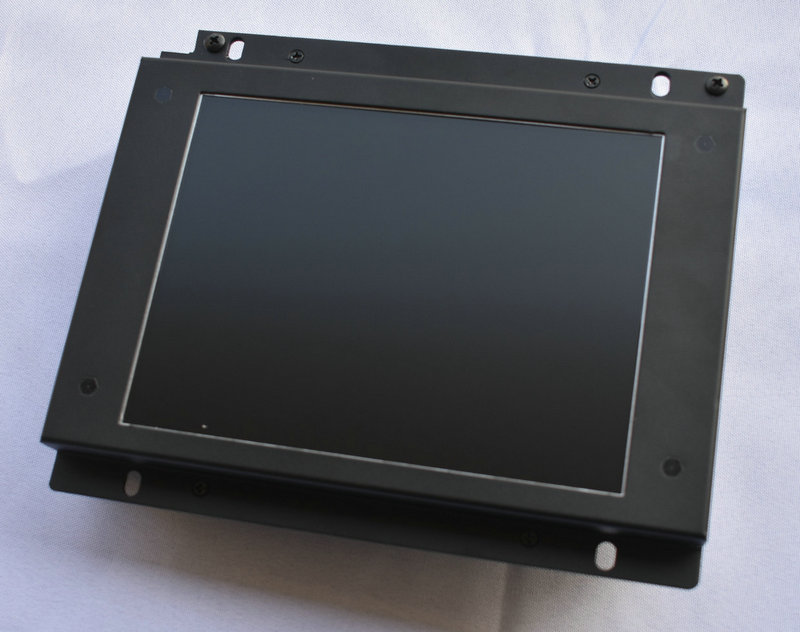

579417-TA, 579417TA and SM0901 are three labels for the same 9-inch monochrome CRT. Check the label on your display against the cross-reference below, then drop in the matching 8-inch TFT-LCD module over the original connector.
$399
USD
✔️ In Stock — 2-Year Warranty
🛒 Buy Now
1
—
—
🔒 Secure checkout via PayPal. Credit/debit cards accepted.
Specifications
| Spec | Original CRT | Kongto LCD |
|---|---|---|
| Technology | 9-inch Monochrome CRT | 8-inch TFT-LCD Industrial Panel |
| Resolution | 640x400 / 640x480 | 800x600 |
| Brightness | ~200 cd/m² | 350-450 cd/m² |
| Lifespan | ~15,000 hrs | 50,000+ hrs |
| Power Supply | Via signal cable | Via signal cable |
| Interface | Siemens 2-row 16-pin | Siemens 2-row 16-pin (direct compatible) |
| Signal Type | RGB analog | TTL |
| Safety | High voltage (10-15kV) | Low voltage DC |
| Weight | — | 2.5 kg |
OEM Labels This Module Replaces

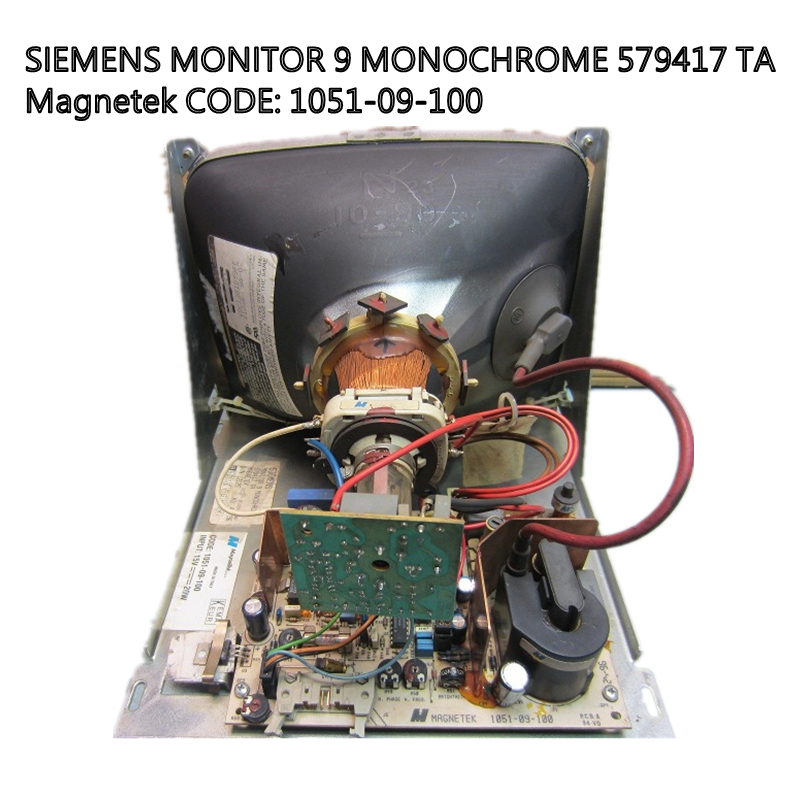

- Siemens 579417-TA / 579417TA — MagneTek-built 9-inch green monochrome CRT
- Siemens SM0901 / SM-0901 — the same display under its other label
- Siemens 6FC3988-7AF01, 6FC4600-0AR04, QDM-9WD-120
- MagneTek 1051-09-100 / 105109100
Frequently Asked Questions
Is 579417-TA the same monitor as SM0901?
Yes — they are two labels for the same 9-inch green monochrome CRT. Which number your machine shows depends only on which label the factory fitted, and the specifications are identical, so one replacement module covers both.
How do I confirm which label my display carries?
Read the metalwork label on the back of the display. It can be printed SM0901, SM-0901, 579417-TA / 579417TA, 6FC3988-7AF01, 6FC4600-0AR04, QDM-9WD-120 or MagneTek 1051-09-100 — every one of those is the 9-inch monochrome unit this module replaces. If you are unsure, send us a photo of the label before ordering.

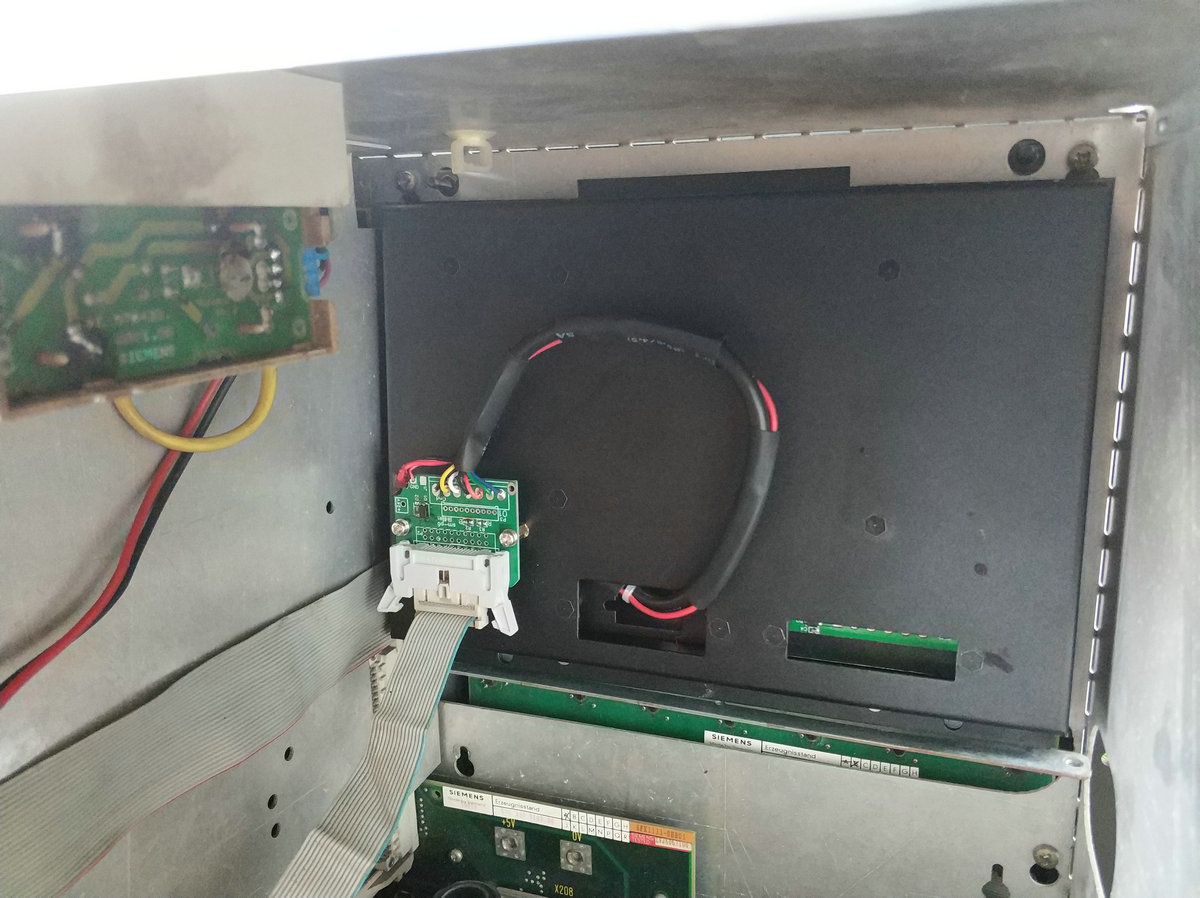

Does it keep the original connector?
Yes. It uses the same 2-row 16-pin IDC connector, with power taken from the signal cable exactly as on the original CRT — no adapter, no rewiring. Image quality rises to 800×600 at 350-450 cd/m² with a 50,000+ hour lifespan and no flicker.
Warranty and support?
2-Year Warranty, lifetime support, worldwide shipping.
Warranty & Service
2-Year Warranty — Lifetime Technical Support — Worldwide Shipping
Email: [email protected] | WhatsApp: +86-13686889647
No CNC parameter changes needed — plug and play, your machine programs and settings stay intact.
