FANUC Series 0-P A02B-0099-C094 CRT to LCD - Complete CRT to LCD Upgrade Guide
Model: A02B-0099-C094-LCD | Compatibility: FANUC Series 0, 0-Mate, 0-P, 0-T CNC controls | Reading time: 8 min
Overview
The FANUC Series 0-P (also known as the A02B-0099-C094) is a monochrome green-phosphor CRT display assembly used on the classic FANUC 0 series and 0-Mate CNC controls. This 9-inch PBM (Panel Built-in Monitor) unit was standard equipment on countless machine tools from the 1980s through 1990s.

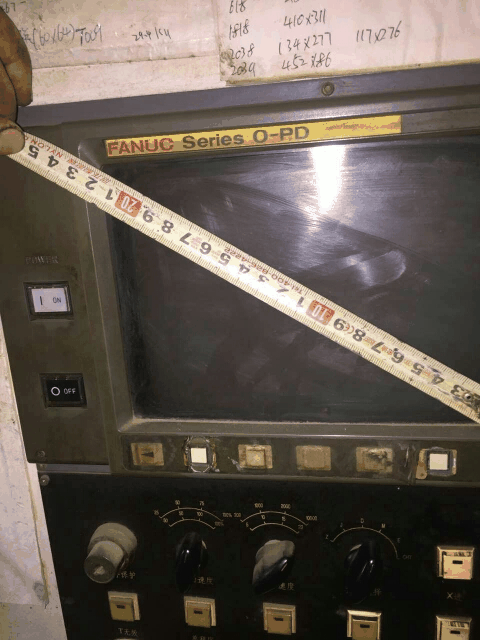

Original CRT Display
The original CRT display in the A02B-0099-C094-LCD is a 9-inch CRT unit with 20-pin Honda MR-20M interface. Key characteristics of the original CRT include:
- Resolution: 640x400 or 640x480 pixels
- Brightness: Approximately 200 cd/m² (degrades over time)
- Lifespan: 15,000-20,000 hours typical
- Power: DC 24V, approximately 40-60W
- Signal: TTL-level RGB via 20-pin Honda MR-20M
Common Failure Modes
After 15-25 years of service, the A02B-0099-C094-LCD CRT display will exhibit one or more of these failure modes:
| Symptom | Root Cause | LCD Upgrade |
|---|---|---|
| Blank screen / no display | Flyback transformer failure (most common) | Permanent fix |
| Dim / unreadable display | CRT phosphor wear, electron gun aging | Permanent fix |
| Flickering / rolling image | Capacitor failure in sync circuits | Permanent fix |
| No power / dead unit | Internal power supply failure | Permanent fix |
LCD Replacement Solution
Our LCD replacement module for the Series 0-P offers a drop-in upgrade: same 9-inch form factor, same 20-pin Honda connector, same DC 24V power. The LCD uses a high-contrast green monochrome TFT panel that preserves the classic CRT aesthetic while delivering 800×600 resolution, no flicker at any refresh rate, and 50,000+ hour reliability. No machine parameter changes, no wiring modifications, no bracket fabrication required.
Specification Comparison
| Spec | Original CRT | Kongto LCD |
|---|---|---|
| Display Type | CRT | TFT-LCD Industrial |
| Resolution | 640x400 | 800x600 |
| Brightness | ~200 cd/m² | 350-450 cd/m² |
| Lifespan | 15,000 hrs | 50,000+ hrs |
| Power Consumption | 40-60W | ~12W |
| Installation | N/A | 15-30 min, plug-and-play |
| Warranty | Obsolete | 2-Year Warranty |
Installation Guide
- Power off the CNC machine and lockout/tagout per safety procedures
- Remove CRT housing: Unscrew the 4 mounting screws, disconnect signal and power cables
- Mount LCD module: Position the LCD module in the same opening, secure with original screws
- Connect cables: Plug the original signal cable into the LCD module port, reconnect DC 24V power
- Power on and test: Restore power. The LCD will display automatically. Adjust brightness/contrast using OSD buttons if needed
Note: No CNC parameter changes, no wiring modifications, no special tools required. Total installation time: 15-30 minutes.
Ordering Information
Price: $$299 USD | Stock: In Stock | Warranty: 2 Years
Contact: [email protected] | +86-13686889647 | Request Quote
