What is a Panasonic 9-inch green CRT monitor?

Panasonic manufactured 9-inch green phosphor CRTs for industrial CNC applications. The green P39 phosphor reduced operator eye strain during long shifts.

What LCD replaces a Panasonic 9-inch green CRT?

The KTV804 is a direct drop-in replacement for Panasonic 9-inch green CRTs. Same signal interface and DC 24V power. 15-minute install, no parameter changes.

Is Matsushita 9-inch CRT the same as Panasonic?

Yes. Matsushita is Panasonic's former brand name. They are the same company. The 9-inch green CRT was manufactured under both names.

Panasonic (Matsushita) 9-Inch Green Phosphor CRT to KTV804 LCD Replacement

The Panasonic (Matsushita) 9-inch green phosphor CRT monitor is a distinctive industrial display known for its characteristic green-tinted screen. These CRTs use P39 phosphor, which produces a green monochrome image preferred in factory environments for reducing operator eye fatigue during extended shifts. Found on various CNC equipment and industrial control panels, these 9-inch green monitors are now aging out — dim displays, flicker, and complete failure are common. The KTV804 TFT LCD is the engineered replacement: a drop-in module using the original signal interface with modern brightness and reliability.

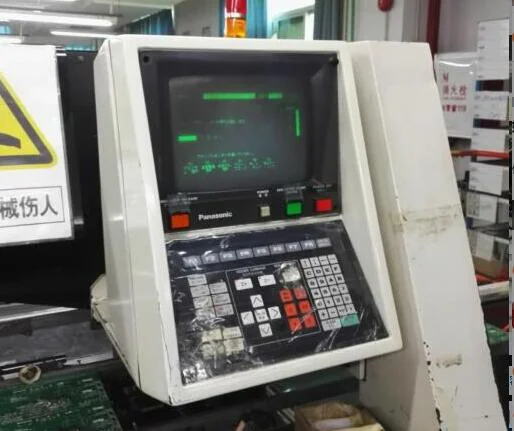

Panasonic 9-inch green CRT monitor front

Panasonic (Matsushita) 9-inch green phosphor CRT monitor — front view showing distinctive green screen

The Challenge

The customer operated a Matsushita/Panasonic green CRT on their CNC equipment. After 15+ years, the P39 phosphor had degraded below 30% brightness — the green image was barely visible even in a dim workshop. OEM replacement CRTs were discontinued. A full panel replacement was quoted at over $4,000. The customer needed a practical LCD upgrade matching the original signal and mounting.

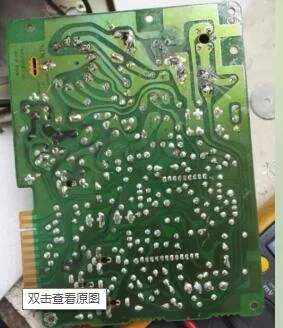

Panasonic 9-inch green CRT — top view showing housing

Panasonic 9-inch green CRT monitor — model label

The Solution — KTV804 LCD Module

We supplied a KTV804 9-inch TFT LCD module configured for Panasonic/Matsushita 9-inch CRT replacement. The KTV804 (800x600 resolution, 400 cd/m2, LED backlight) accepts the same RGB video and DC 24V power. The mounting matches the original cutout — no panel modification needed. The upgrade is completely reversible with zero changes to the host equipment.

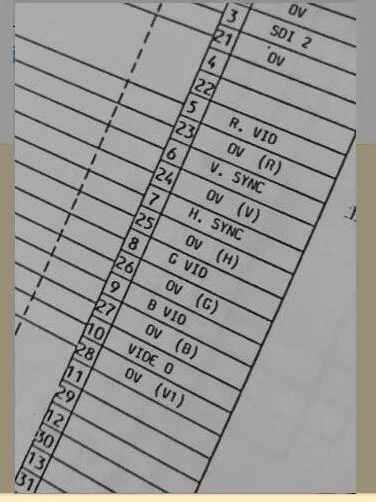

Panasonic 9-inch green CRT — rear view with connectors

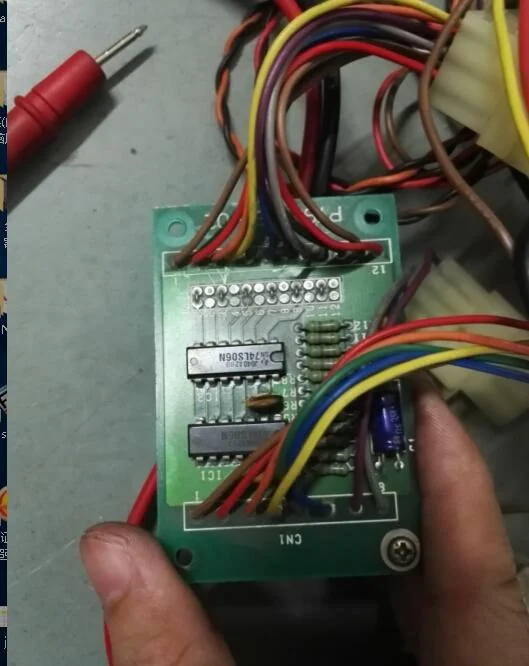

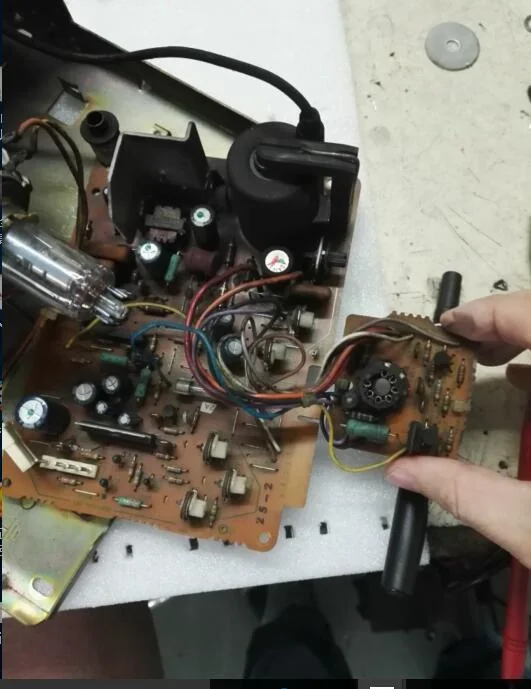

Panasonic 9-inch green CRT — disassembly for removal

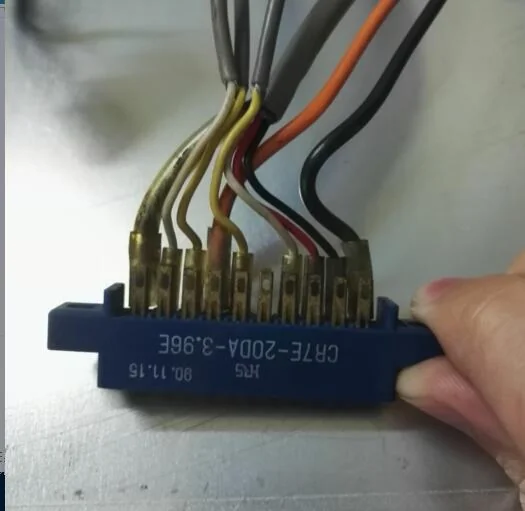

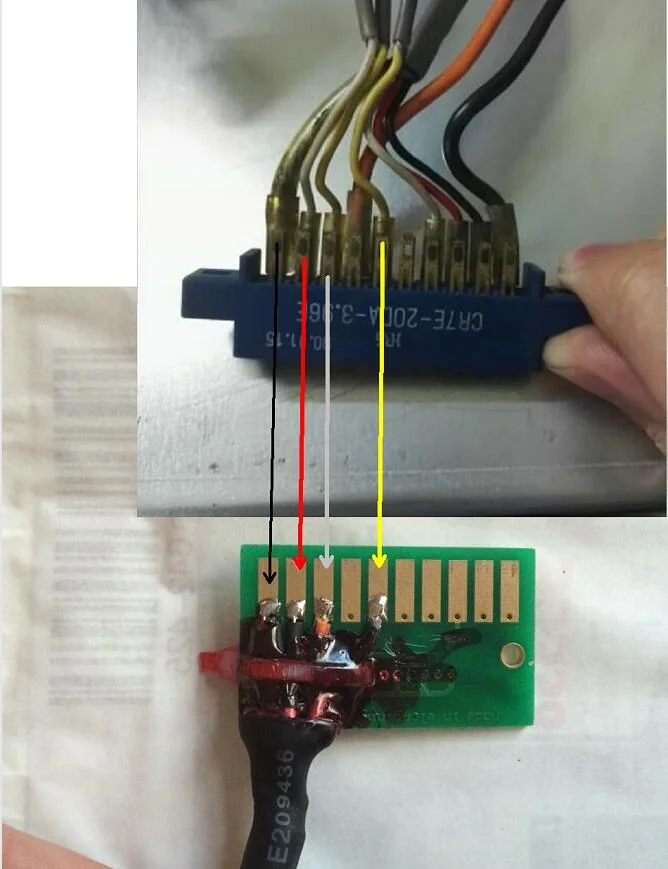

Panasonic 9-inch green CRT — signal connector detail

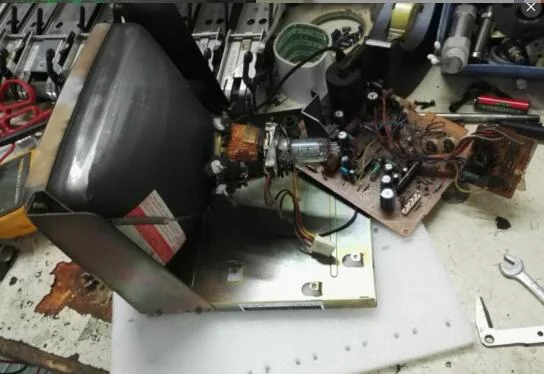

Panasonic 9-inch green CRT — chassis and internal view

Installation

CRT removal and LCD installation took approximately 20 minutes. The original mounting holes and bezel opening accepted the KTV804 directly. Original signal cable and DC power connected without any adapter. On power-up, the familiar green-tinted interface appeared on a bright, crisp TFT panel at 400 cd/m2 — more than double the brightness of the aged CRT.

KTV804 LCD module installation in original Panasonic housing

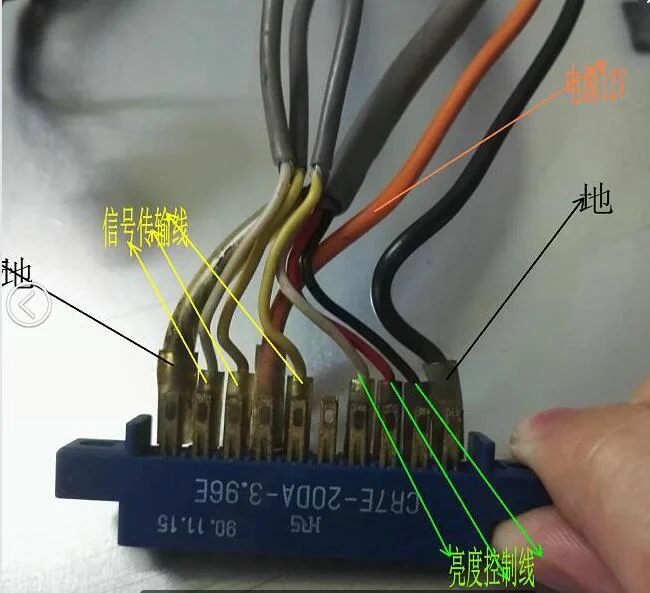

KTV804 LCD — signal and power connection

KTV804 LCD installed in original Panasonic bezel

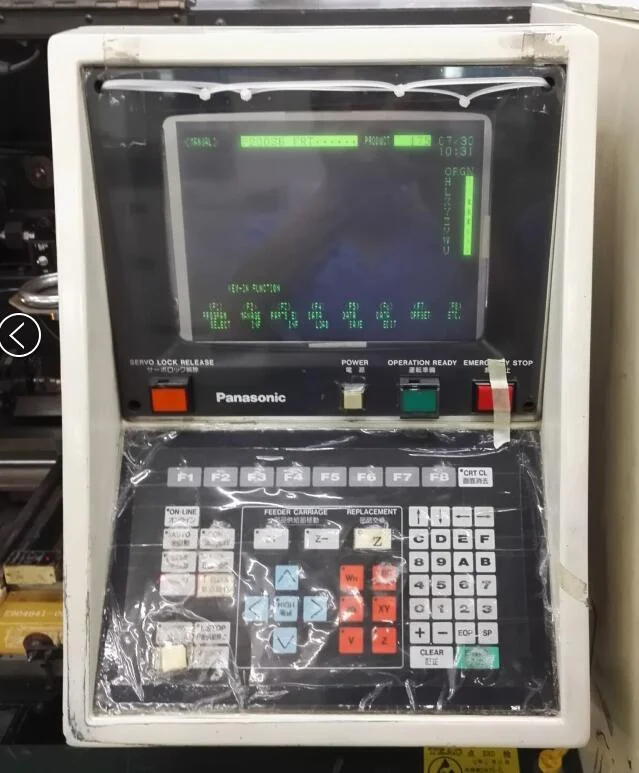

KTV804 LCD running — Panasonic green CRT replacement in action

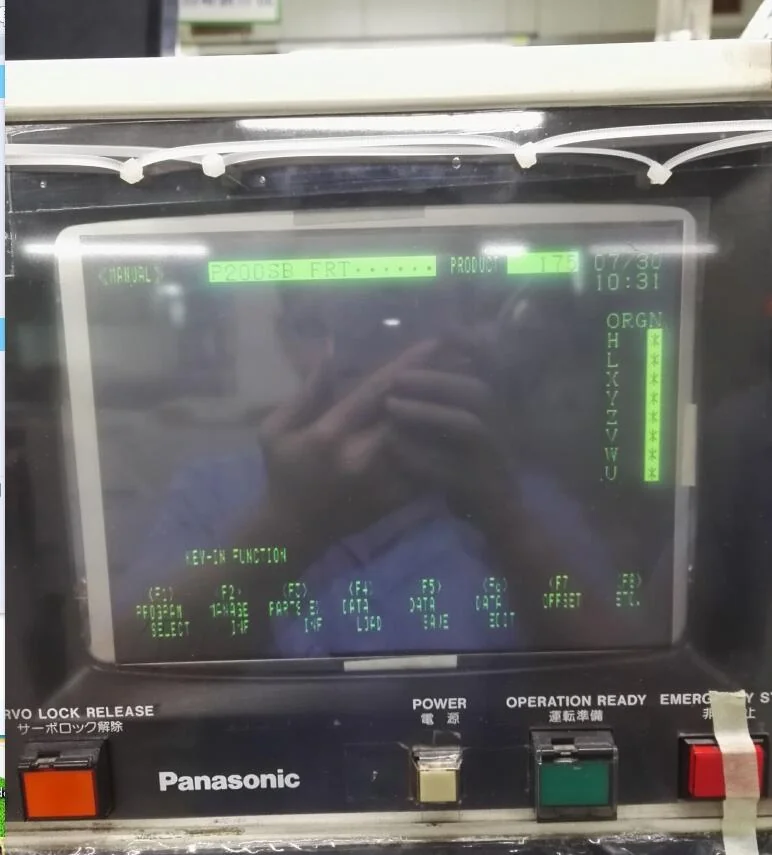

KTV804 LCD replacement — close-up showing bright display

Technical Comparison

Parameter	Panasonic 9" Green CRT	KTV804 LCD
Display type	9" green P39 CRT	9" TFT-LCD
Brightness	~150 cd/m2 (aged)	400 cd/m2
Resolution	640x400	800x600
Backlight life	Phosphor ~15,000 h	LED 50,000+ h
Power	DC 24V ~30W	DC 24V ~12W

Key Takeaways

Panasonic/Matsushita 9-inch green CRT replaced with KTV804 LCD
Preserved the familiar green interface — operators adapted immediately
2.6x brightness improvement (150 to 400 cd/m2)
Zero modifications, fully reversible
LED backlight rated 50,000+ hours
