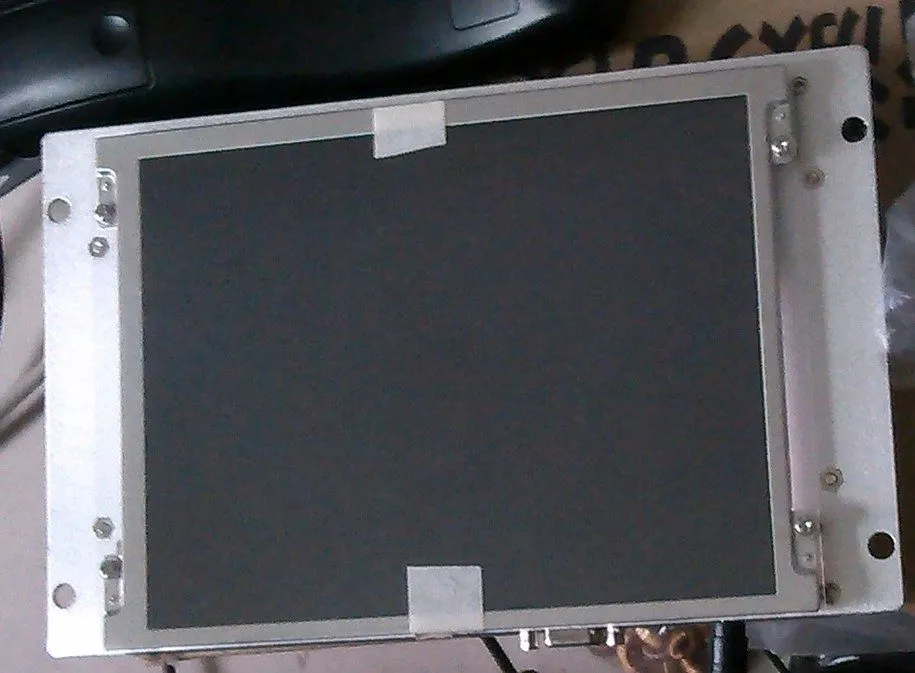

Panasonic 9" Green CRT to LCD Replacement
$265 Ships worldwide · Shipping calculated at checkout
| Original CRT | 9-inch green phosphor monochrome CRT (Panasonic/Matsushita) |
| LCD Panel | KTV804 8.4-inch TFT-LCD, 800x600 resolution, 400 cd/m² |
| Connector | 10-pin IDC / Honda MR-20 (varies by model) |
| Signal Interface | Customisable — VGA / HDMI / DVI standard, or matched to your original RGB interface |
| Frequency | H: 15-45 kHz, V: 50-75 Hz |
| Viewing Angle | 140° H / 120° V |
| Power | DC 24V (from CNC control) |
| Operating Temp | -10°C to 55°C |
| Compatible With | Panasonic/Matsushita CNC controls with 9" green CRT |
| Installation | 15 minutes — remove CRT, plug in LCD, no parameter changes |
| Warranty | 2-Year Warranty + lifetime technical support |
KTV804 8.4" module | Customisable signal interface | DHL shipping worldwide
