Matsushita
KF-M7099H 9-inch CRT to LCD Upgrade | FANUC 0093 Compatible
KF-M7099H 9-inch CRT to 8-inch TFT-LCD upgrade. Same as FANUC A61L-0001-0093 replacement. Factory direct, plug-and-play. Ships from stock.
$155
USD
✔️ In Stock — 2-Year Warranty
🛒 Buy Now
1
—
—
🔒 Secure checkout via PayPal. Credit/debit cards accepted.
Specifications
| Spec | Original CRT | Kongto LCD |
|---|---|---|

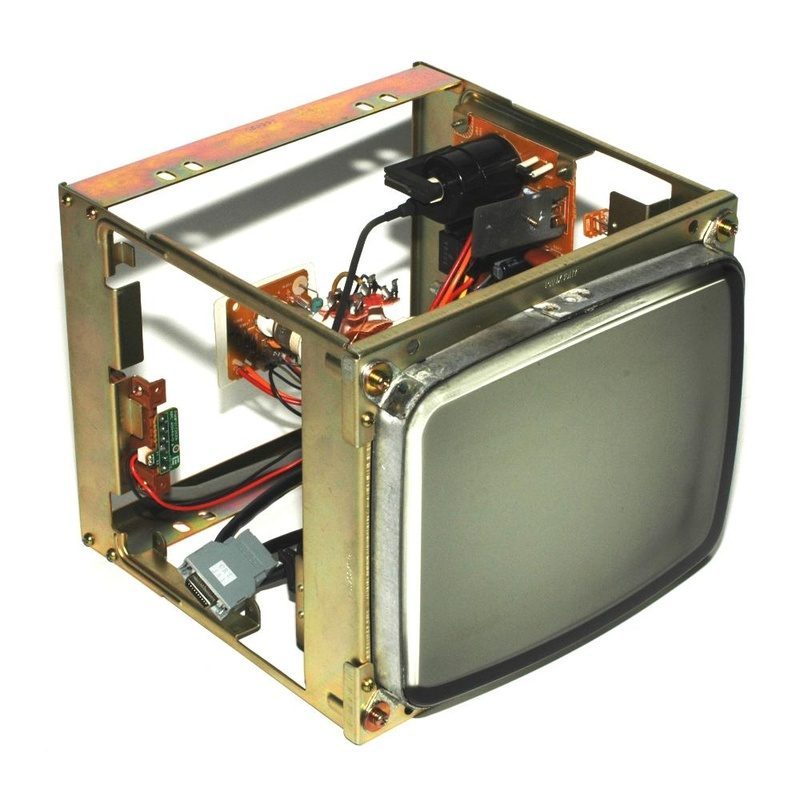

| Technology | 9-inch Monochrome CRT | 8-inch TFT-LCD Industrial Panel |
| Resolution | 640x400 / 640x480 | 800x600 |
| Brightness | ~200 cd/m² | 350-450 cd/m² |
| Lifespan | ~15,000 hrs | 50,000+ hrs |
| Power Supply | DC 24V | DC 24V (compatible) |
| Interface | 20-pin Honda MR-20M | 20-pin Honda MR-20M (direct compatible) |
| Signal Type | RGB analog | TTL |
| Safety | High voltage (10-15kV) | Low voltage DC |
| Weight | — | 1.5 kg |
Compatible Systems
- FANUC Series 0 / 0-Mate
- FANUC 0i-A / 0i-B / 0i-C / 0i-D
- FANUC Series 16i / 18i / 21i
OEM Part Number Cross-Reference
One 9-inch monochrome CRT, three OEM part numbers. They are the same display:
- Matsushita KF-M7099H — this page
- FANUC A61L-0001-0093 — the FANUC part number for the same display
- Toshiba D9MM-11A — the Toshiba part number for the same display
Frequently Asked Questions
Does this work with all FANUC CNC models?
Yes. Uses same 20-pin Honda connector as original CRT. Drop-in for FANUC 0/0i/16i/18i/21i. No parameter changes needed.
Installation time and difficulty?
10-15 minutes: power off, remove 4 screws, swap display, reconnect. No soldering.

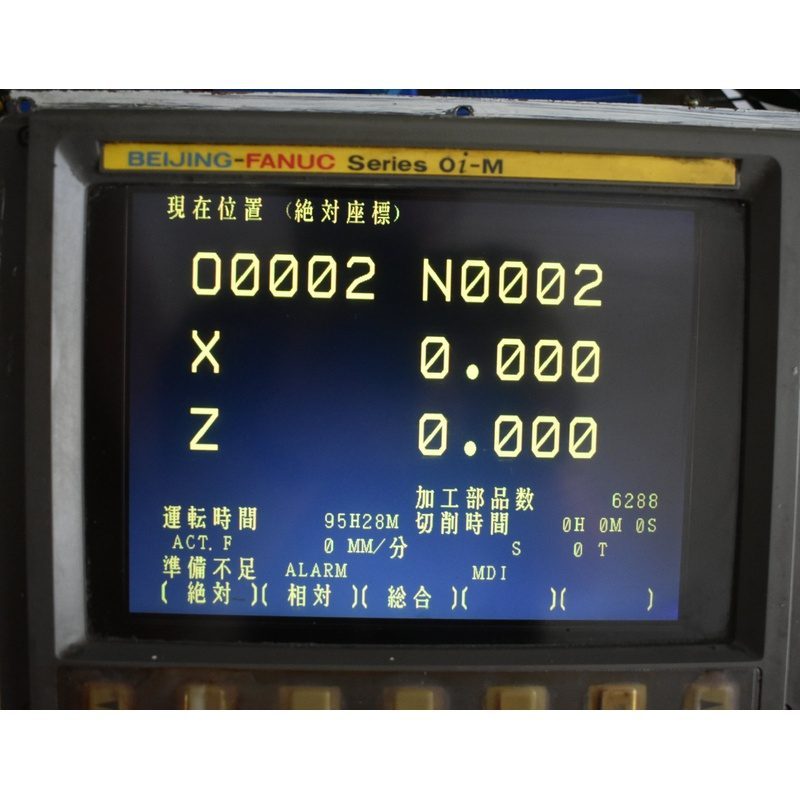

Image quality vs original CRT?
800×600 resolution, 350-450 cd/m² brightness, 50,000+ hr lifespan. Sharper, no flicker.
Warranty and support?
2-Year Warranty, lifetime support, worldwide shipping.
Warranty & Service
2-Year Warranty — Lifetime Technical Support — Worldwide Shipping
Email: [email protected] | WhatsApp: +86-13686889647
No CNC parameter changes needed — plug and play, your machine programs and settings stay intact.
CRT failure symptoms & repair cost · Customer results · Quality testing process
Email: [email protected] | WhatsApp: +86-13686889647
No CNC parameter changes needed — plug and play, your machine programs and settings stay intact.
CRT failure symptoms & repair cost · Customer results · Quality testing process
Ready to replace your CRT?
$155 — In Stock — Ships within 24 hours
