FANUC

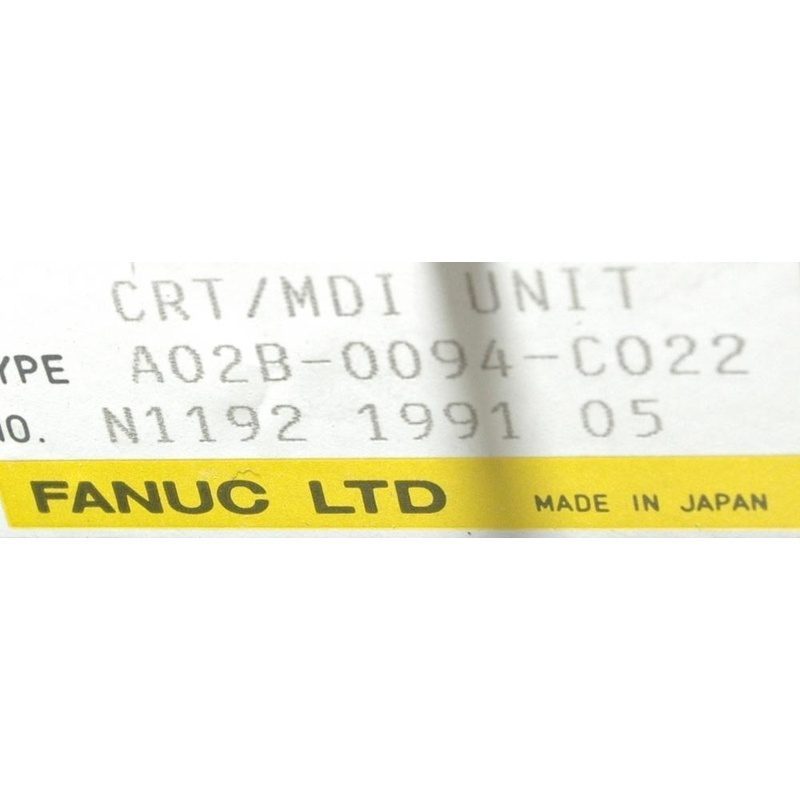

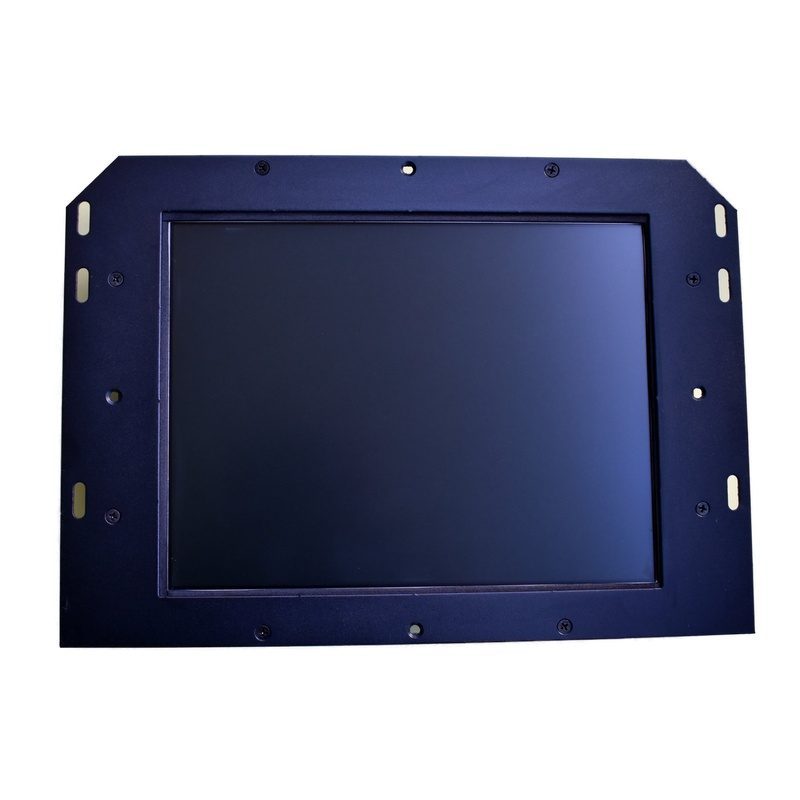

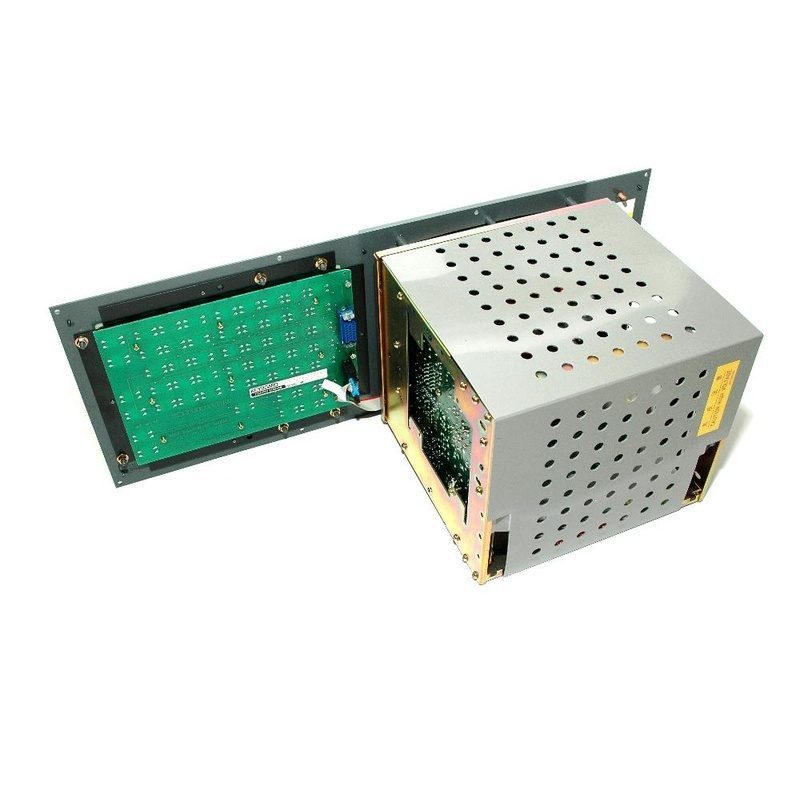

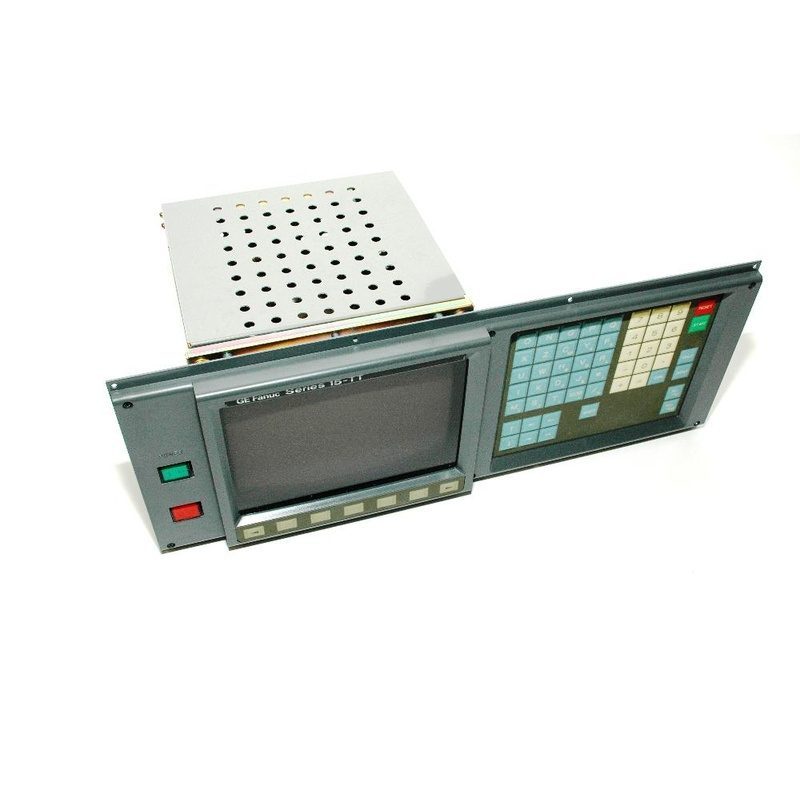

FANUC A02B-0094-C022 14-inch Color CRT to 12.1-inch LCD Upgrade | CNC Display Replacement
FANUC A02B-0094-C022 14-inch Color CRT to 12.1-inch TFT-LCD upgrade. Factory direct, plug-and-play for FANUC Series O-P. Ships today.
$480
USD
✔️ In Stock — 2-Year Warranty
🛒 Buy Now
1
—
—
🔒 Secure checkout via PayPal. Credit/debit cards accepted.
Specifications
| Spec | Original CRT | Kongto LCD |
|---|---|---|
| Technology | 14-inch Color CRT | 12.1-inch TFT-LCD Industrial Panel |
| Resolution | 640x480 | 800x600 |
| Brightness | ~200 cd/m2 | 350-450 cd/m2 |
| Lifespan | ~15,000 hrs | 50,000+ hrs |
| Power | DC 24V | DC 24V (original) |
| Interface | 20-pin Honda MR-20M | 20-pin Honda (direct compatible) |
| Safety | High voltage (10-15kV) | Low voltage DC |
| Weight | — | 1.5 kg |
Compatible Systems
- FANUC Series 0i-A / 0i-B / 0i-C / 0i-D
- FANUC Series 16i / 18i / 21i
- All CNC machines with FANUC A02B-0094-C022 display
Common CRT Failure Symptoms
- Color distortion / missing colors — CRT phosphor degradation, most common in color CRTs after 10,000+ hours
- Dim display — Electron gun wear reduces brightness
- Screen flicker / image jitter — Flyback transformer or capacitor degradation
- Focus blur / convergence error — Aging CRT yoke or deflection board
- No display / blank screen — High-voltage failure or CRT heater burnout
Our LCD module eliminates all CRT-related failure modes permanently. 70% lower power, no high voltage, no flicker.
Frequently Asked Questions
Does this work with my CNC machine?
Yes. Uses same connector as original CRT. Drop-in replacement. No parameter changes needed.
Installation time and difficulty?
10-15 minutes: power off, remove screws, swap display, reconnect. No soldering required.
Image quality vs original CRT?
800x600 resolution, higher brightness, 50,000+ hr lifespan. Sharper image, no flicker.
Warranty and support?
2-Year Warranty, lifetime technical support, worldwide shipping from our Shenzhen factory.
What Our Customers Say
"Far better than repairing the old CRT. Half the price of OEM. Highly recommended."
"Quick shipping, well packaged. LCD looks great, install took 20 minutes."
"Just what we needed. Plug-and-play as advertised. Great customer service."
Warranty & Service
2-Year Warranty — Lifetime Technical Support — Worldwide Shipping
Factory direct from Shenzhen, China. Ships within 24 hours.
Email: [email protected] | WhatsApp: +86-13686889647
No CNC parameter changes needed — Plug and play, your machine programs and settings stay intact.
Factory direct from Shenzhen, China. Ships within 24 hours.
Email: [email protected] | WhatsApp: +86-13686889647
No CNC parameter changes needed — Plug and play, your machine programs and settings stay intact.
Ready to replace your CRT?
$350 — In Stock — Ships within 24 hours
