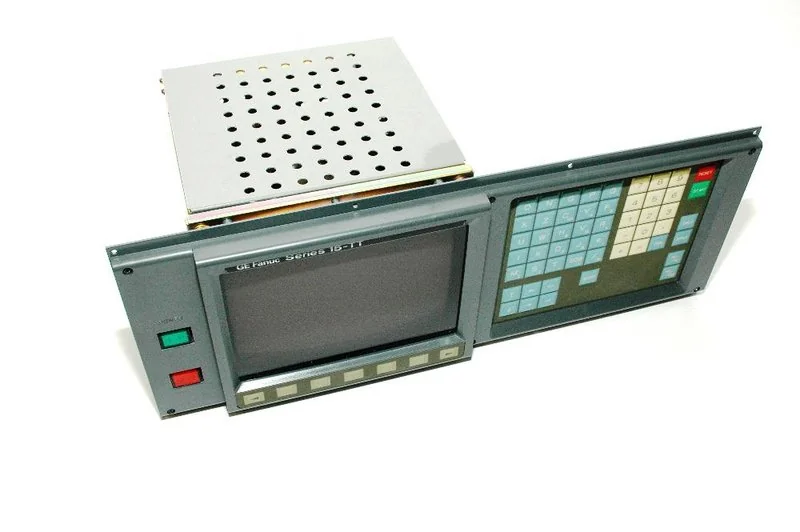

FANUC A02B-0094-C022 CRT/MDI一体机改LCD
FANUC A02B-0094-C022 是一款CRT显示与MDI（手动数据输入）键盘一体机单元，用于FANUC 0系列、0i系列、16i、18i等数控系统。该一体机将9英寸CRT显示器与操作员数据输入键盘整合在同一机箱内。
$$499 USD
In Stock — 2-Year Warranty
Specifications
| Spec | Original CRT | Kongto LCD |
|---|---|---|
| Technology | CRT Monochrome/Color | TFT-LCD Industrial Panel |
| Screen Size | 9-inch | 9-inch LED-backlit LCD |
| Resolution | 640x400 / 640x480 | 800x600 |
| Brightness | ~200 cd/m2 | 350-450 cd/m2 |
| Lifespan | ~15,000 hrs | 50,000+ hrs |
| Power | DC 24V | DC 24V (original) |
| Interface | Honda MR-20M 20-pin / MDI parallel | Honda MR-20M 20-pin / MDI parallel (direct compatible) |
| Safety | High voltage (10-15kV) | Low voltage DC |
Compatible Systems
- FANUC 0, 0i-A/B/C/D, 16i, 18i Series
Common CRT Failure Symptoms
- Blank screen / no power — Flyback transformer failure, the most common CRT failure mode
- Dim or unreadable display — CRT phosphor wear after extended operation (15,000+ hours)
- Flickering or image distortion — Capacitor degradation in horizontal/vertical sync circuits
- Color shift or missing colors — Aging electron gun or video amplifier circuit failure
Our LCD module eliminates all CRT-related failure modes permanently. Plug-and-play replacement, no rewiring or parameter changes needed.
Warranty & Service
2-Year Warranty — Lifetime Technical Support — Free Worldwide Shipping
Email: [email protected] | Phone: +86-13686889647 | WhatsApp
Ready to replace your CRT?
$$499 — In Stock — Ships within 24 hours
