EUM-1491A (Mitsubishi) 14" Color CRT
to KTV148 LCD Upgrade
Display type: Mitsubishi 14-inch Color CRT | Reading time: 8 min
The EUM-1491A is a Mitsubishi 14-inch color CRT display commonly found on industrial CNC equipment. After 15-25 years of continuous service, these CRTs commonly fail — dim image, color shift, flicker, or complete black screen. OEM replacements are no longer available. The KTV148 12.1-inch TFT LCD is the engineered replacement: it uses the existing 9-pin signal and DC 24V power with zero parameter changes.
Figure: EUM-1491A Mitsubishi 14-inch color CRT display with model label | Source: Kongto Technology
Understanding the EUM-1491A CRT
The EUM-1491A is a 14-inch shadow-mask color CRT running at 640×480 (VGA) resolution with a 15.7 kHz horizontal scan rate. It uses a 9-pin D-Sub (DB-9) connector carrying R, G, B, HSYNC, VSYNC, and DC power. The CRT is heavy (~4-5 kg), generates significant heat, and draws ~30W of power. After years of continuous operation, common failure modes include:
- Dim image / low brightness — CRT phosphor degradation, typically below 40% after 10+ years
- Color drift / poor convergence — aging shadow mask and deflection yoke misalignment
- Screen flicker / jitter — failing flyback transformer or aging electrolytic capacitors
- Complete no-display — high-voltage section failure or CRT tube exhaustion
Figure: EUM-1491A 14-inch color CRT — front view showing the display area | Source: Kongto Technology
KTV148 Replacement Solution
The KTV148 is a 12.1-inch industrial TFT-LCD specifically engineered to replace Mitsubishi 14-inch color CRTs. Key specifications:
- Size: 12.1-inch diagonal TFT-LCD (SVGA 800×600)
- Signal: Direct DB-9 input — accepts Mitsubishi 9-pin RGB video natively
- Power: DC 24V (same rail as the original CRT, ~12W vs 30W)
- Brightness: 350-450 cd/m² (nearly double the original CRT)
- Temperature: −20°C to 70°C — rated for machine shop environment
- Mounting: Panel mount with included adapter bracket for the larger cutout
Figure: KTV148 12.1-inch TFT LCD replacement module — front view | Source: Kongto Technology
Signal Interface — Why It Works
Mitsubishi 14-inch CRTs use a 9-pin D-Sub connector for RGB video. The pinout carries R, G, B, HSYNC, VSYNC, and DC 24V power. Unlike generic monitors that expect VGA analog signals, the Mitsubishi interface uses TTL-level RGB (0-5V logic) with separate composite sync — a signal modern LCDs cannot read without conversion.
The KTV148 is built to decode this exact protocol: it reads the Mitsubishi 9-pin RGB/TTL signal directly, converts it internally to LVDS, and drives the TFT panel at its native 800×600 resolution. No external converter, no video scaler, no software change.

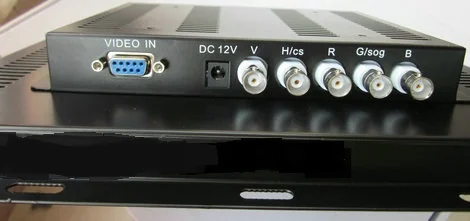

Figure: KTV148 Mitsubishi 9-pin DB-9 connector interface — direct plug-and-play | Source: Kongto Technology
Side-by-Side Comparison
| Parameter | Original EUM-1491A CRT | KTV148 LCD |
|---|---|---|
| Display type | 14-inch color CRT | 12.1-inch TFT-LCD |
| Resolution | 640×480 (VGA) | 800×600 (SVGA) |
| Brightness | ~200 cd/m² | 350-450 cd/m² |
| Signal interface | 9-pin D-Sub / DB-9 | DB-9 direct (plug-and-play) |
| Power | DC 24V ~30W | DC 24V ~12W |
| Lifespan | ~15,000 hours | 50,000+ hours |
| Weight | ~4-5 kg | ~1.5 kg |
| High voltage | Up to 25 kV (anode) | None (DC 24V only) |
| 3-Year Cost Estimate | ||
| Initial display cost | $0 (existing CRT) | $399 (KTV148 one-time) |
| Repair cost (3 yr) | $800-2,500 (1-2 repairs) | $0 |
| Downtime loss (est.) | $3,000-8,000 | $0 (15 min install) |
| Total 3-year cost | $3,800-10,500 | $399 |
Installation Guide
- Power down the CNC and disconnect AC supply. Lock out / tag out.
- Remove the old CRT housing (typically 4-6 screws). The CRT weighs ~4-5 kg — use two hands.
- Disconnect the DB-9 signal cable and DC 24V power connector from the CRT.
- Mount the KTV148 using the included adapter plate. Secure with the provided screws.
- Reconnect the DB-9 cable and DC 24V to the KTV148. Connectors are keyed — single orientation.
- Power on the CNC. The KTV148 will display the control screen immediately with no parameter changes.
- Fine-tune brightness, contrast, and position via the on-screen display (OSD) menu.
Total hands-on time: 15-20 minutes. Difficulty: intermediate — basic hand tools and LOTO required.
Cost Analysis
A single KTV148 LCD replacement at $399 eliminates the recurring cost of CRT repairs ($800-2,500 per repair) and removes the high-voltage hazard permanently. Over 3 years, the LCD solution saves an estimated $3,400-10,000 compared to maintaining the original CRT.
Compatibility
This KTV148 LCD replacement is designed for Mitsubishi 14-inch color CRT displays using a DB-9 RGB/TTL interface. To confirm compatibility with your specific machine, email [email protected] with your CRT model number and control type.
FAQ
What CNC equipment uses the EUM-1491A CRT?
The EUM-1491A is a Mitsubishi 14-inch color CRT display. To verify compatibility with your specific machine, contact our support team with the CRT model number and control type.
Can the EUM-1491A be replaced with a standard LCD monitor?
Not directly. Mitsubishi uses a proprietary 9-pin signal interface. The KTV148 is specifically designed to accept this signal natively — no external converter needed.
Does the KTV148 fit the same mounting hole pattern?
The KTV148 is 12.1 inches vs the original 14-inch CRT, so the cutout is smaller. A mounting adapter plate is included to cover the bezel gap.
What warranty does the KTV148 carry?
2-year warranty with lifetime support. All units 100% tested before shipping.
Ordering Information
Email [email protected] or request a quote for current pricing and lead time. KTV148 units are in stock and ship within 24 hours.
