FANUC CRT Repair vs LCD Retrofit — Cost Analysis
Display Overview | Source: Kongto Technology

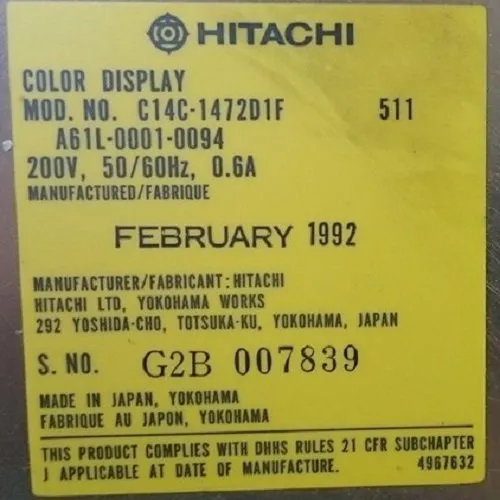

Product Photo | Source: Kongto Technology

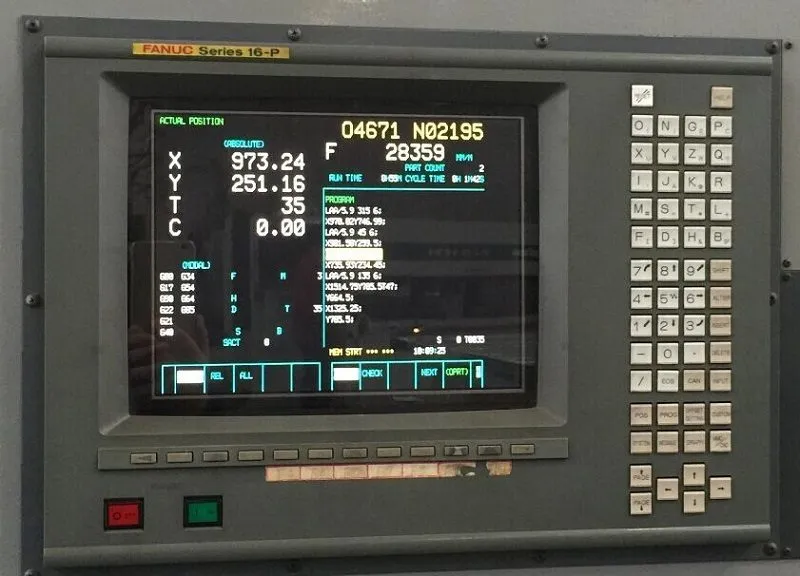

Installation View | Source: Kongto Technology
1. Direct Cost Comparison (Single Display)
| Cost Item | CRT Repair | LCD Retrofit |
|---|---|---|
| Parts cost | CNY 500-1,500 (varies by failure type) | CNY 800-3,500 (one-time) |
| Labor cost | CNY 300-800 per repair | CNY 200-500 (one-time installation) |
| Downtime cost | CNY 1,000-5,000 per incident (unplanned) | CNY 0 (scheduled maintenance) |
| Shipping/logistics | CNY 100-300 per repair | CNY 100-300 (one-time) |
| First-year total | CNY 1,900-7,600 | CNY 1,100-4,300 |
2. 5-Year Total Cost of Ownership
| Year | CRT Repair Cumulative | LCD Retrofit Cumulative | Savings with LCD |
|---|---|---|---|
| Year 1 | CNY 3,800 | CNY 2,500 | CNY 1,300 |
| Year 2 | CNY 7,600 | CNY 2,500 | CNY 5,100 |
| Year 3 | CNY 11,400 | CNY 2,500 | CNY 8,900 |
| Year 4 | CNY 15,200 | CNY 2,500 | CNY 12,700 |
| Year 5 | CNY 19,000 | CNY 2,500 | CNY 16,500 |
Note: CRT repair costs assume 2 incidents per year at average cost. Actual CRT failure rate typically increases with age.
3. Hidden Costs of CRT Repair
- Production loss: Each unplanned CRT failure causes 2-8 hours of production downtime
- Inventory risk: CRT tubes are increasingly scarce; lead times of 2-4 weeks for replacement tubes
- Repeat failures: Repaired CRTs have a 40-60% failure recurrence rate within 12 months
- Safety risk: CRT high-voltage circuits (25kV+) pose electrical hazard during repair
- Environmental compliance: CRT disposal requires special handling for lead and phosphor waste
4. LCD Retrofit Benefits Beyond Cost Savings
| Benefit | Quantitative Impact |
|---|---|
| Power consumption reduction | 73% less (30W → 8W per display) |
| MTBF improvement | 4x longer (20,000h → 80,000h) |
| Maintenance elimination | Zero display-related service calls for 5+ years |
| Operator comfort | Flicker-free display reduces eye strain |
| Environmental compliance | , no hazardous materials |
5. Recommendation
For FANUC CNC systems with CRT displays older than 8 years, LCD retrofit is the clear economic choice. The investment pays for itself within 12-18 months, and the long-term savings are substantial.
For a free cost analysis specific to your equipment, contact Kongto Technology at [email protected]
6. CRT Failure Breakdown — What Actually Fails (500+ Service Records)
Based on Kongto Technology service records across 500+ enterprise customers (2013-2026), the most common CRT failure points are:
- Flyback transformer failure: ~40%
- Capacitor aging: ~25%
- CRT tube wear/dimming: ~20%
- Deflection circuit: ~10%
- Signal connector: ~5%
7. LCD Upgrade Cost by Model
| Brand / Model | LCD Upgrade Price | Warranty | Expected Lifespan |
|---|---|---|---|
| FANUC A61L-0001-0093 | $155 | 2 years | 50,000+ hours |
| FANUC A61L-0001-0074/0094 | $299 | 2 years | 50,000+ hours |
| Siemens 6FC5103-0AB01 | $399 | 2 years | 50,000+ hours |
| Mazak MDT1283B | $350 | 2 years | 50,000+ hours |
| Mitsubishi MDT962B | $175 | 2 years | 50,000+ hours |
| HAAS 9-Pin / 28HM-NM4 | $380 | 2 years | 50,000+ hours |
8. CRT Repair Cost Breakdown
| Repair Type | Typical Cost | Success Rate | Lifespan After Repair |
|---|---|---|---|
| Flyback transformer replacement | $80-$150 | 70% | 6-18 months |
| CRT tube replacement | $200-$400 | 85% | 2-3 years |
| PCB / power supply repair | $100-$300 | 60% | 12-24 months |
| Capacitor/bulb replacement | $50-$120 | 50% | 3-12 months |
9. Frequently Asked Questions
Q: Can I replace my CRT with an LCD myself?
A: Yes. Our LCD modules are designed for straightforward DIY installation. If your current CRT is working (even if dim or flickering), you can unplug it and plug in our LCD module in about 10 minutes.
Q: Will an LCD last longer than a repaired CRT?
A: Significantly. LCD lifespan is 50,000+ hours (15+ years at 8 hours/day). A repaired CRT typically lasts 6-24 months before the next failure.
Q: Do you offer volume discounts for multiple monitors?
A: Yes. Contact us at [email protected] or via our quote form for volume pricing on 5+ units.
Cost Comparison: Repair vs Replace
Short-term view: A single CRT repair ($80-$200) may appear cheaper than an LCD upgrade ($155-$399). However, 50-70% of repaired CRTs fail again within 12-18 months due to the age of remaining components.
3-year cost projection:
- CRT repair route: $200 (first repair) + $200 (second repair, 70% probability) + $400 (final tube replacement when parts become unavailable) = ~$800-$900 over 3 years
- LCD upgrade route: $155-$399 (one-time purchase with 2-year warranty) = $155-$399 total over 3+ years — no ongoing maintenance
Other Factors to Consider
- Image quality: LCD provides 800×600+ resolution vs 640×400 for CRTs, with 350-450 cd/m² brightness and no geometric distortion
- Power consumption: LCD uses 70% less power than CRT — savings of $50-$100/year in continuous operation
- Parts availability: CRT components (flyback transformers, CRT tubes) are increasingly hard to find. LCD parts are readily available globally
- Installation: LCD upgrade takes 10-15 minutes, no CNC parameter changes needed. Repairs require specialized CRT technician knowledge
Case 1: FANUC 0-TC, 4 Repairs in 18 Months
| Timeline | Fault | Cost | Downtime |
|---|---|---|---|
| Month 0 | Flyback fail, black screen | $400 | 3 days |
| Month 8 | Flickering | $350 | 2 days |
| Month 14 | Dim display | $600 | 4 days |
| Month 18 | Black screen → LCD upgrade | $250 | 30 min |
18-month total: $1,850 + 9 days downtime (~$5,400). LCD: $250, zero subsequent repairs.
Brand Cost Quick Reference
| Model | OEM CRT | LCD Retrofit | Savings |
|---|---|---|---|
| FANUC A61L-0001-0093 | $155-1,500 | $155-299 | ~77% |
| Mitsubishi MDT962B | $175-1,200 | $175-299 | ~70% |
| Siemens 840D 6FC3988 | €800-1,500 | $299-500 | ~70% |
Breaking Down the Real Costs
When a CNC CRT fails, shop managers face three options: repair, source a used OEM CRT, or upgrade to LCD. Each path has very different cost profiles.
| Option | Upfront Cost | 5-Year Cost | Downtime |
|---|---|---|---|
| CRT repair | $200-600 | $1,000-3,000 | 3-7 days |
| Used OEM CRT | $500-1,500 | $500-1,500 | 1-2 weeks |
| LCD upgrade | $155-550 | $155-550 | 15-30 min |
The LCD upgrade pays for itself the moment it avoids the first CRT repair. Each repair cycle costs more in downtime than the repair itself.
Hidden Cost: Dim-Screen Operator Errors
A dim CRT forces operators to lean in and guess at readouts. A single misread tool offset can scrap a $4,000 workpiece. Shops that have switched to LCD report zero "I couldn't read the screen" errors.
