Haas

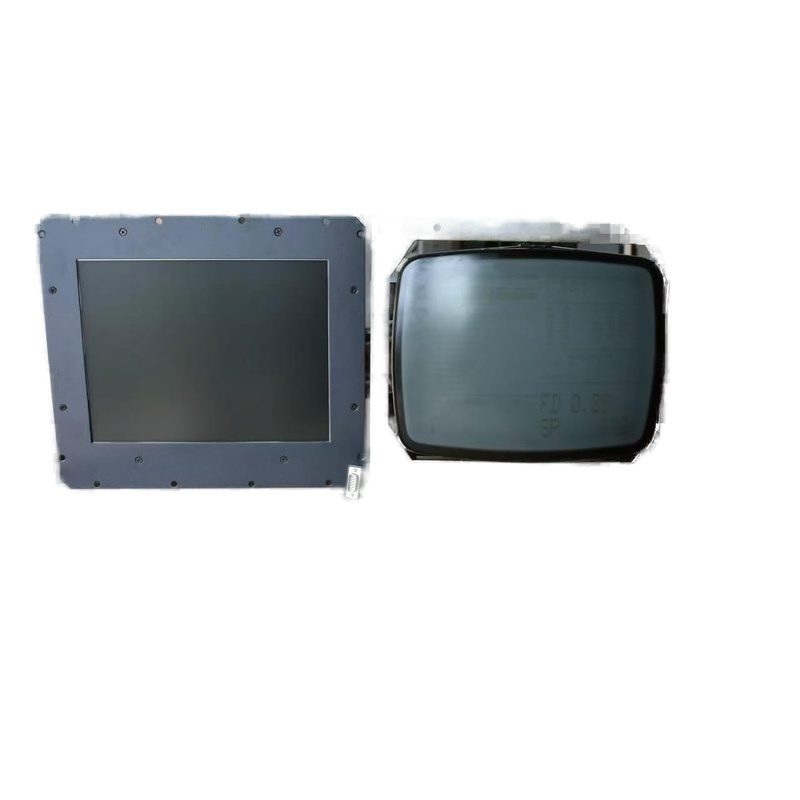

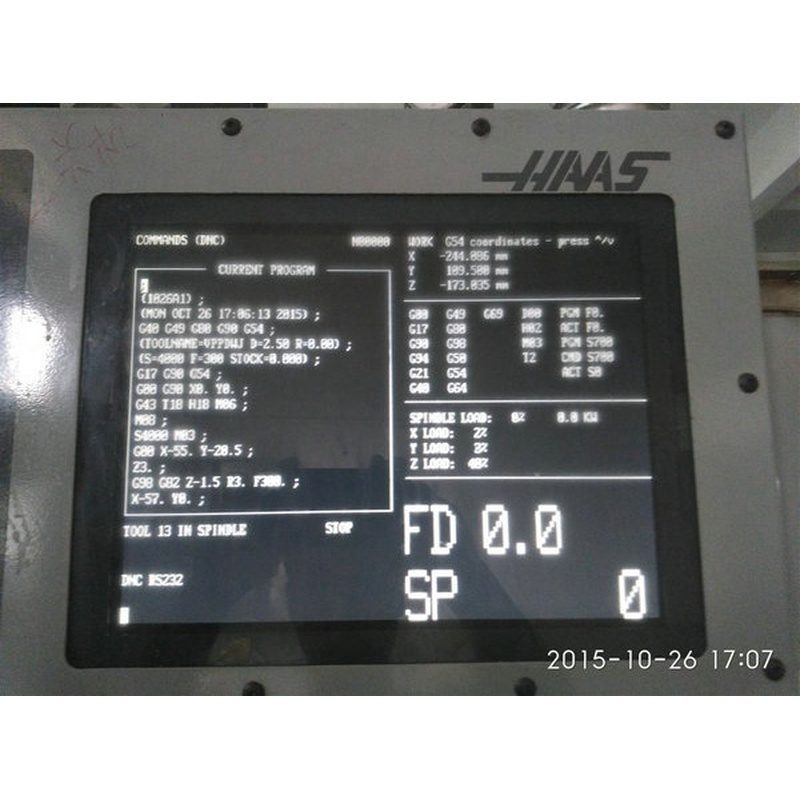

HAAS 9-pin Monochrome CRT to 8-inch LCD Upgrade | VF Series CNC Display
HAAS 9-pin monochrome CRT to 8-inch TFT-LCD upgrade. Compatible with HAAS VF1, VF2, VF3 CNC systems. Factory direct, plug-and-play.
$380
USD
✔️ In Stock — 2-Year Warranty
🛒 Buy Now
1
—
—
🔒 Secure checkout via PayPal. Credit/debit cards accepted.
Specifications
| Spec | Original CRT | Kongto LCD |
|---|---|---|
| Technology | 9-inch Monochrome CRT | 8-inch TFT-LCD Industrial Panel |
| Resolution | 640x400 / 640x480 | 800x600 |
| Brightness | ~200 cd/m² | 350-450 cd/m² |
| Lifespan | ~15,000 hrs | 50,000+ hrs |
| Power Supply | AC 100-240V | AC 100-240V (compatible) |

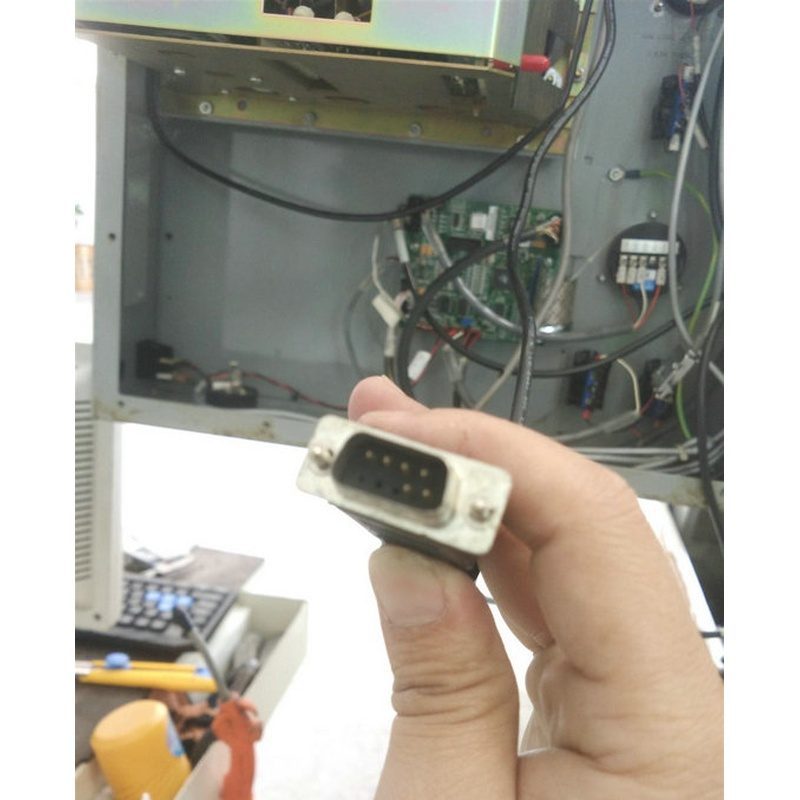

| Interface | 9-pin D-sub | 9-pin D-sub (direct compatible) |
| Safety | High voltage (10-15kV) | Low voltage DC |
| Weight | — | 3.5 kg |
Compatible Systems
- Haas CNC systems with 9-pin CRT display
Frequently Asked Questions
Which CNC systems is this upgrade compatible with?
Haas CNC systems with a 9-pin CRT display. Uses the same connector as your original CRT — plug-and-play drop-in, no parameter changes needed.
Installation time and difficulty?
10-15 minutes: power off, remove 4 screws, swap display, reconnect. No soldering.
Image quality vs original CRT?
800×600 resolution, 350-450 cd/m² brightness, 50,000+ hr lifespan. Sharper, no flicker.
Warranty and support?
2-Year Warranty, lifetime support, worldwide shipping.
Warranty & Service
2-Year Warranty — Lifetime Technical Support — Worldwide Shipping
Email: [email protected] | WhatsApp: +86-13686889647
No CNC parameter changes needed — plug and play, your machine programs and settings stay intact.
CRT failure symptoms & repair cost · Customer results · Quality testing process
Email: [email protected] | WhatsApp: +86-13686889647
No CNC parameter changes needed — plug and play, your machine programs and settings stay intact.
CRT failure symptoms & repair cost · Customer results · Quality testing process
Ready to replace your CRT?
$380 — In Stock — Ships within 24 hours
