HAAS 28HM-NM4 LCD Replacement

HAAS 28HM-NM4

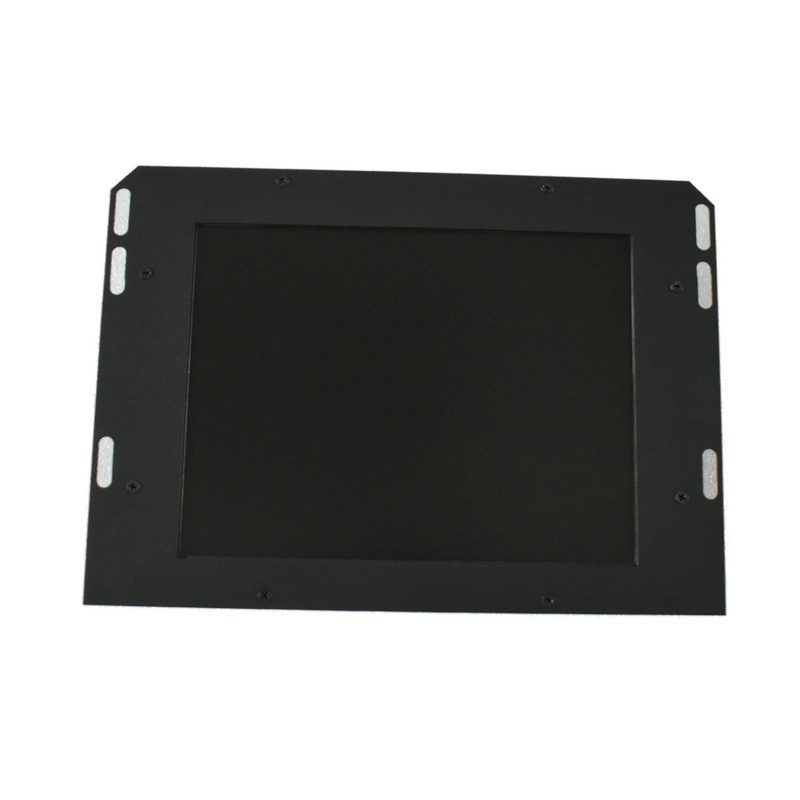

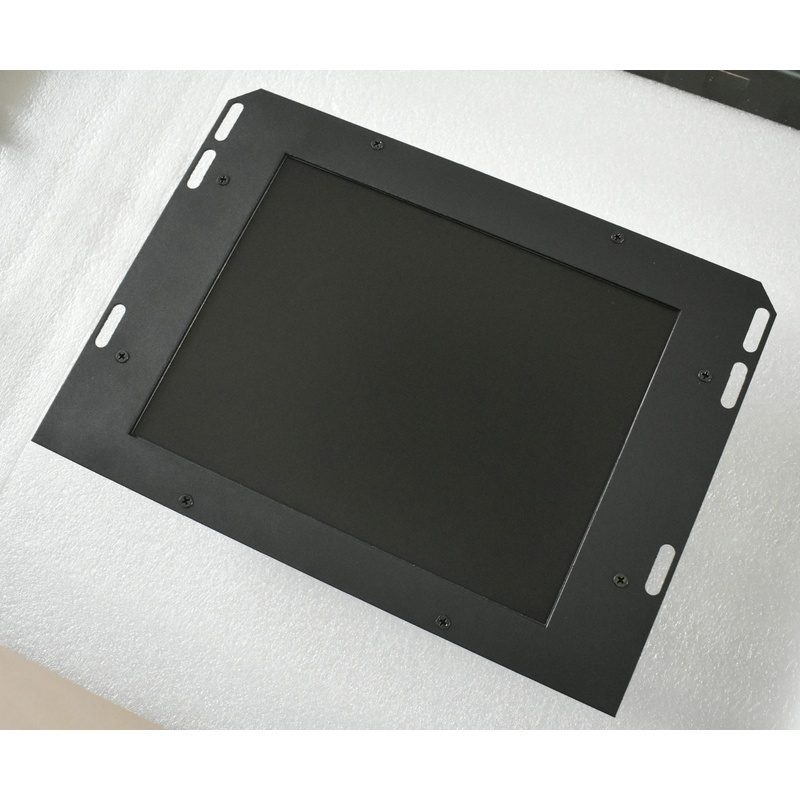

LCD Replacement Display

10.4-inch TFT TFT-LCD plug-and-play replacement. No modifications needed. 15-30 minute installation.

$399 USD

In Stock — 2-Year Warranty

Get a QuoteInstallation Guide

🛒 Buy Now

1
—
—

Payment button loading...

🔒 Secure checkout via PayPal. Credit/debit cards accepted.

Specifications: Original CRT vs Kongto LCD

SpecOriginal CRTKongto LCD
Technology12-inch Monochrome CRTTFT-LCD Industrial Panel
Screen Size12-inch12.1" LED-backlit LCD
Resolution640x400 / 640x480800x600
Brightness~200 cd/m2350-450 cd/m2
Lifespan~15,000 hrs50,000+ hrs
PowerDC 12VDC 12V (original)
Interface9-pin D-Sub9-pin D-Sub (direct compatible)
SafetyHigh voltage (10-15kV)Low voltage DC
Weight~2.5kg~2.5kg

Compatible Systems

Common HAAS 28HM NM4 CRT Display Failures

The HAAS 28HM NM4 is a CRT display found on HAAS VF-series CNC machines, 12-inch monochrome.

  • Blank screen — HAAS monochrome CRT flyback failure. The machine powers up but the screen is dark.
  • Dim / hard to read — CRT phosphor degradation. Common on older VF-series machines.
  • Flickering or collapsed image — Capacitor failure in the deflection circuit.
  • Burn-in — Permanent ghost image from years of displaying the same tool position screen.

CRT hardware failures only. The HAAS control is typically functional — our LCD restores display without modifications.

Signal Wiring

Our LCD module connects directly to the existing CRT connector — no adapter or rewiring needed.

PinSignalDescription
1GNDSignal Ground
2VideoMonochrome video (composite)
3GNDVideo Ground
4HSHorizontal Sync
5VSVertical Sync
6+24VDC Power
7GNDPower Ground

Note: HAAS CRTs use a 9-pin D-Sub connector with TTL video and separate sync. Our LCD includes the matching connector.

Frequently Asked Questions

Will this work with HAAS VF-1 through VF-6?

Yes. The 28HM-NM4 CRT was used across VF-1 through VF-6 series machines. Our LCD replaces it in all of them.

Does this also fit 93-5220C or 93-5220?

Yes. These are alternate part numbers for the same HAAS CRT.

Installation time?

10–15 minutes. Power off, swap displays, reconnect connectors, power on.

Warranty?

2-Year Warranty, lifetime support, worldwide shipping.

What Our Customers Say

"CRT was too dim to read. LCD arrived fast, installed in 15 minutes. Crystal clear. Great upgrade."

— John D., USA (June 2026)

"Perfect plug-and-play replacement. No modifications needed. Works great. Ordering more."

— Marco R., Italy (May 2026)

"After 20+ years our CRT died. This LCD brought our CNC back to life. Excellent quality."

— Akira T., Japan (June 2026)

Warranty & Service

2-Year Warranty - Lifetime Technical Support - Free Shipping Worldwide
