Does this work with my FANUC CNC machine?

Yes. FANUC LCD upgrade modules use the same connector pinout as the original CRT. Compatible with FANUC 0/0i/16i/18i/21i series. Drop-in replacement — no parameter changes needed.

How long does installation take?

10-15 minutes. Power off the machine, unplug the old CRT, connect the new LCD module, secure with screws. No soldering required.

Is it compatible with my FANUC CNC control?

Yes. Direct replacement for FANUC A61L CRT displays and compatible with FANUC 0/0i/16i/18i/21i series controls.

What warranty and support?

2-Year warranty, lifetime technical support, worldwide shipping from Shenzhen factory.

Volume discounts available for 5+ units. Contact info@cncdisplay.com for a bulk quote.

FANUC

FANUC A61L-0001-0096 14-inch Color CRT to 12.1-inch LCD Upgrade | CNC Display Replacement

Name: FANUC A61L-0001-0096 14-inch Color CRT to 12.1-inch LCD Upgrade | CNC Display Replacement
Brand: Kongto Technology
SKU: KTO-FANUC-0096
Price: 350 USD
Availability: InStock

FANUC A61L-0001-0096 14-inch color CRT to 12.1-inch TFT-LCD upgrade. Factory direct, plug-and-play, in-position install.

View Specs & Guide

$350 USD ✔️ In Stock — 2-Year Warranty

🛒 Buy Now

Unit Price:

Qty:

Ship to:

Total Wt:

Shipping: —

Total: —

Payment button loading...

🔒 Secure checkout via PayPal. Credit/debit cards accepted.

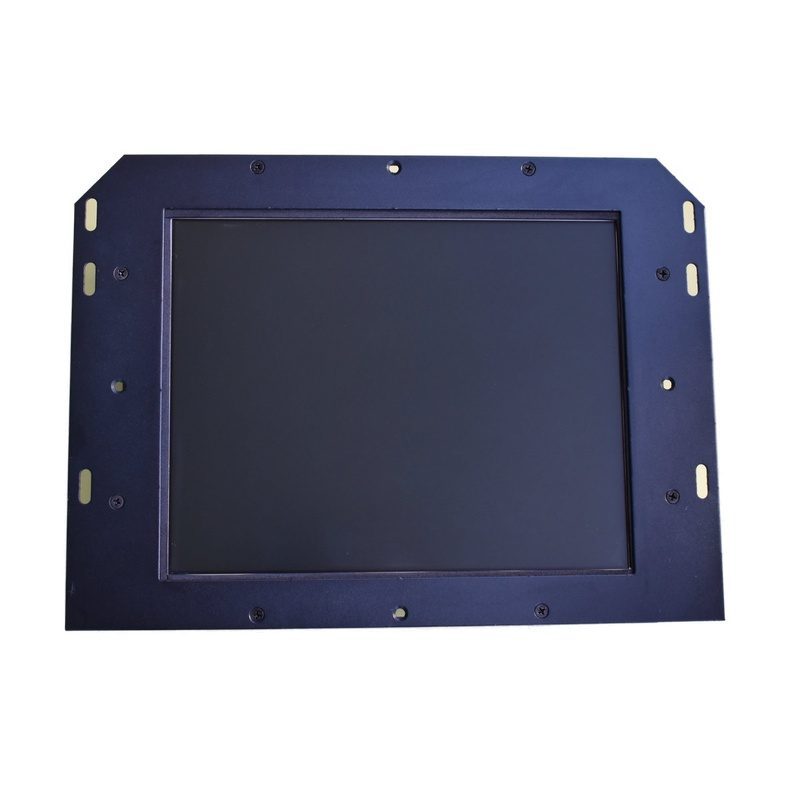

FANUC A61L-0001-0096 14-inch Color CRT LCD replacement panel - front view

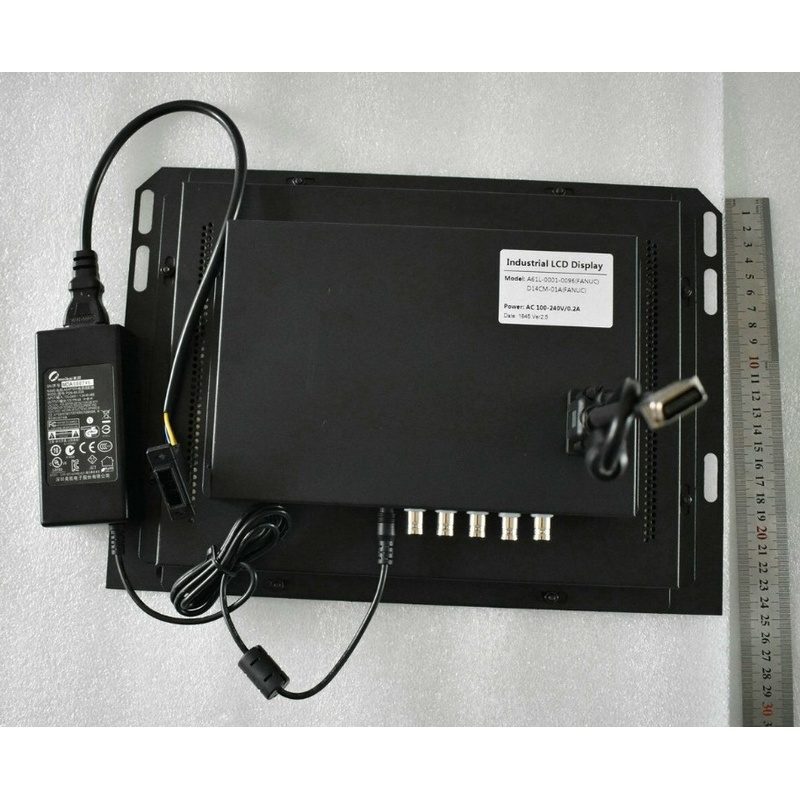

FANUC A61L-0001-0096 14-inch Color CRT LCD replacement panel - back view

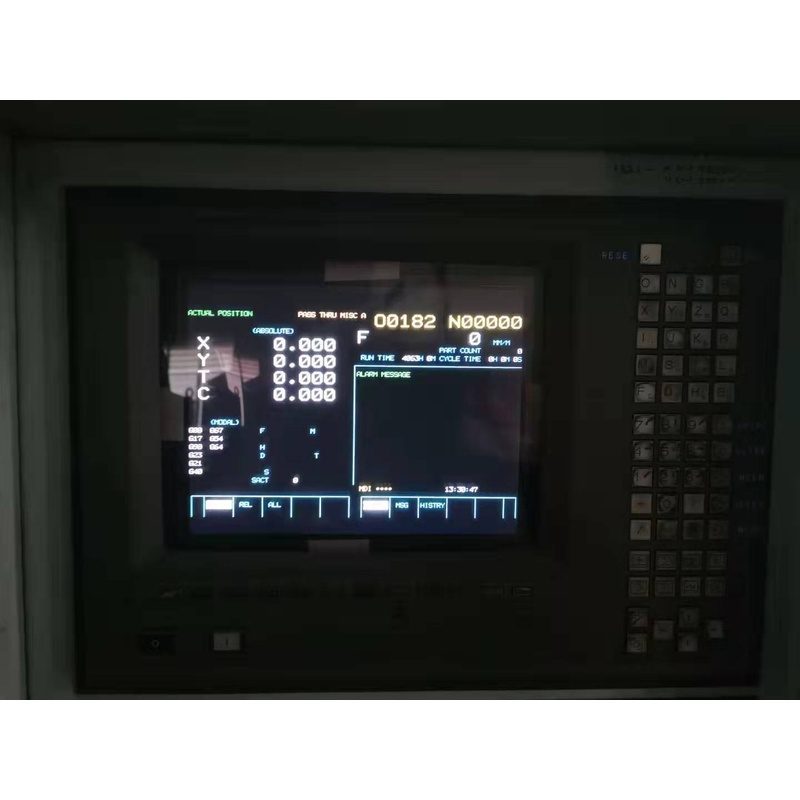

FANUC A61L-0001-0096 14-inch Color CRT LCD upgrade installation effect

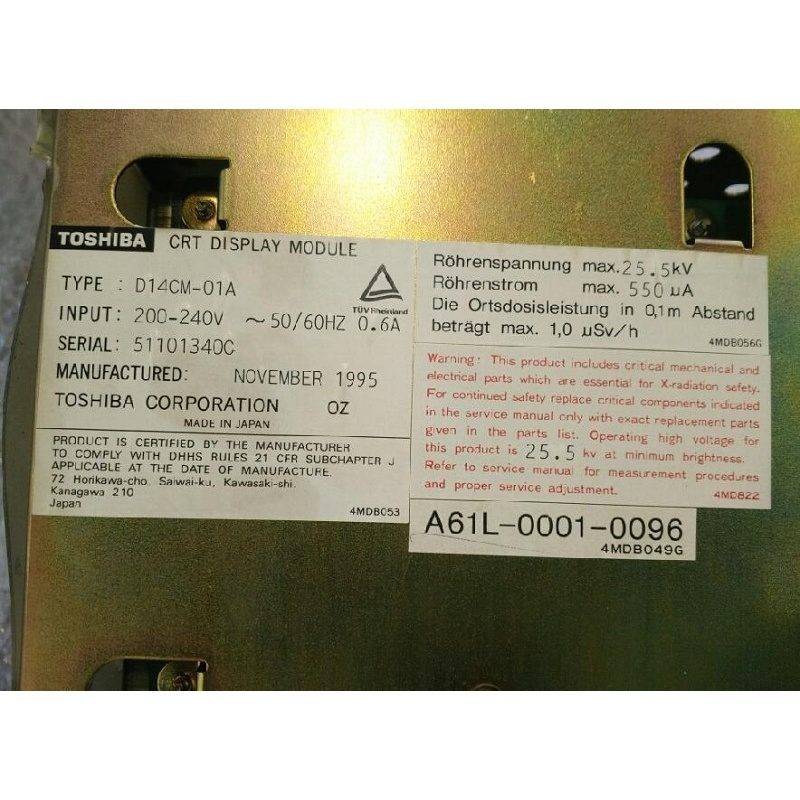

FANUC A61L-0001-0096 14-inch Color CRT product label

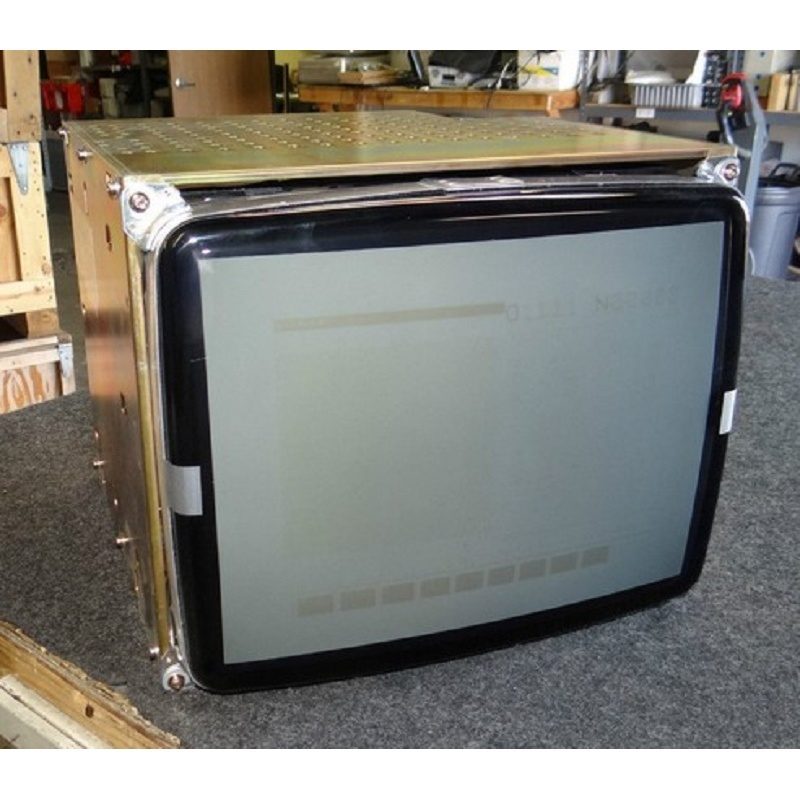

FANUC A61L-0001-0096 14-inch Color CRT original CRT monitor

Specifications

Spec	Original CRT	Kongto LCD
Technology	14-inch Color CRT	12.1-inch TFT-LCD Industrial Panel
Resolution	640x400 / 640x480	800x600
Brightness	~200 cd/m2	400 cd/m2
Lifespan	~15,000 hrs	50,000+ hrs
Power	DC 24V	DC 24V (original)
Interface	20-pin Honda MR-20M	20-pin Honda (direct compatible)
Safety	High voltage (10-15kV)	Low voltage DC
Weight	—	3.5 kg

Compatible Systems

FANUC Series 0 / 0-Mate / 0-TMate
FANUC 0i-A / 0i-B / 0i-C / 0i-D
FANUC Series 16i / 18i / 21i
All CNC machines with FANUC A61L-0001-0096 display

Common CRT Failure Symptoms

Color distortion / missing colors — CRT phosphor degradation, most common in color CRTs after 10,000+ hours
Dim display — Electron gun wear reduces brightness to unreadable levels
Screen flicker / image jitter — Flyback transformer or capacitor degradation
Focus blur / convergence error — Aging CRT yoke or deflection board
No display / blank screen — High-voltage failure or CRT heater burnout

Our LCD module eliminates all CRT-related failure modes permanently. 70% lower power, no high voltage, no flicker.

Frequently Asked Questions

Does this work with my CNC machine?

Installation time and difficulty?

Image quality vs original CRT?

Warranty and support?

What Our Customers Say

"Good product for the price. Solid build quality. Delivery was faster than expected."

— Hans V., Amsterdam, Netherlands (Jan 2026)

"Second purchase. First one still going strong after 18 months. Consistent quality."

— Steve R., Melbourne, Australia (May 2026)

"Simple straightforward upgrade. Old CRT out, new LCD in. No complications."

— Juan M., Mexico City, Mexico (Mar 2026)

Warranty & Service

2-Year Warranty — Lifetime Technical Support — Worldwide Shipping
Factory direct from Shenzhen, China. Ships within 24 hours.
Email: [email protected] | WhatsApp: +86-13686889647
No CNC parameter changes needed — Plug and play, your machine programs and settings stay intact.

Ready to replace your CRT?

$350 — In Stock — Ships within 24 hours
