FANUC A61L-0001-0094 14-inch CRT to LCD Upgrade | CNC Display Replacement

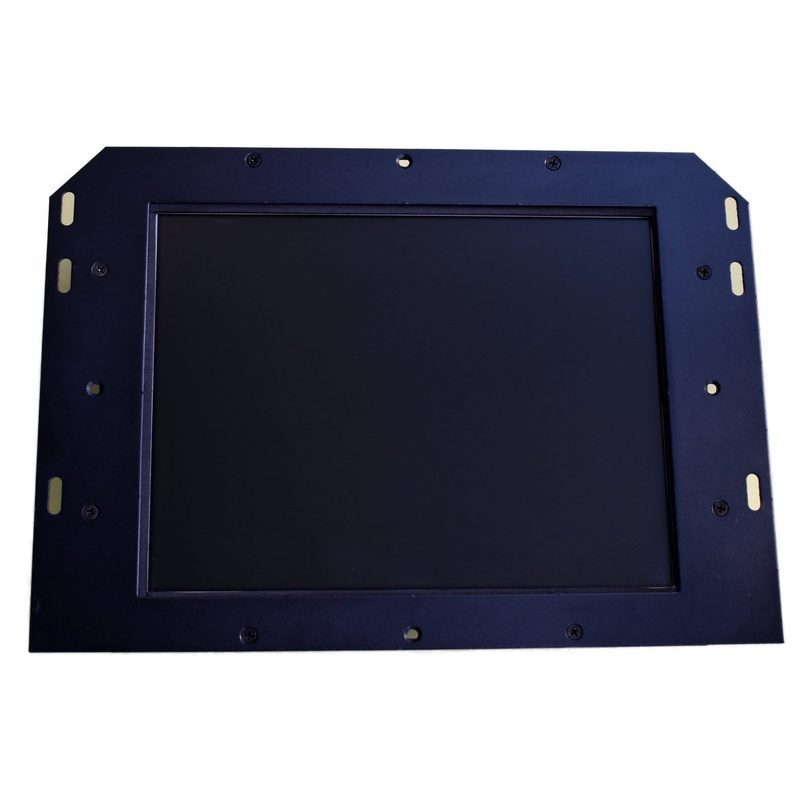

FANUC A61L-0001-0094 14-inch color CRT to 12.1-inch TFT-LCD upgrade. 400 cd/m² brightness.
$299
USD
✔️ In Stock — 2-Year Warranty
🛒 Buy Now
1
—
—
🔒 Secure checkout via PayPal. Credit/debit cards accepted.
Specifications
| Spec | Original CRT | Kongto LCD |
|---|---|---|
| Technology | 14-inch Color CRT | 12.1-inch TFT-LCD Industrial Panel |
| Resolution | 640x480 | 800x600 |
| Brightness | ~200 cd/m2 | 400 cd/m2 |
| Lifespan | ~15,000 hrs | 50,000+ hrs |
| Power | AC 100-240V | AC 100-240V (original) |
| Interface | 20-pin Honda MR-20M | 20-pin Honda (direct compatible) |
| Safety | High voltage (10-15kV) | Low voltage DC |
| Weight | — | 3.5 kg |
Market Price Comparison
| Supplier | Form | Price | Notes |
|---|---|---|---|
| Kongto Technology (CN) | 12.1-inch TFT-LCD module, factory direct | $299 | 2-year warranty, ships in 24h from Shenzhen |
| Monitech (US/CA) | 12.1-inch LCD upgrade kit (ML121LL0094S) | US $849 | New; 315 sold, 5/5 rating; cable kit included |
| T2 Industrial (eBay, Canada) | 12-inch LCD replacement with cable kit | US $799.68 | New, MPN ML121LL0094S, ships from Kitchener ON |
Prices from public listings verified 2026-09-04. Kongto sells factory-direct — no middleman markup, 2-year warranty included.
Compatible Systems
- FANUC Series 0i-A / 0i-B / 0i-C / 0i-D
- FANUC Series 16i / 18i / 21i
- All CNC machines with FANUC A61L-0001-0094 display
Frequently Asked Questions
Does this work with my CNC machine?
Yes. Uses same connector as original CRT. Drop-in replacement. No parameter changes needed.
Installation time and difficulty?
10-15 minutes: power off, remove screws, swap display, reconnect. No soldering required.
Image quality vs original CRT?
800x600 resolution, higher brightness, 50,000+ hr lifespan. Sharper image, no flicker.
Warranty and support?
2-Year Warranty, lifetime technical support, worldwide shipping from our Shenzhen factory.
Warranty & Service
2-Year Warranty — Lifetime Technical Support — Worldwide Shipping
Email: [email protected] | WhatsApp: +86-13686889647
No CNC parameter changes needed — plug and play, your machine programs and settings stay intact.
CRT failure symptoms & repair cost · Customer results · Quality testing process
Email: [email protected] | WhatsApp: +86-13686889647
No CNC parameter changes needed — plug and play, your machine programs and settings stay intact.
CRT failure symptoms & repair cost · Customer results · Quality testing process
Ready to replace your CRT?
$299 — In Stock — Ships within 24 hours
