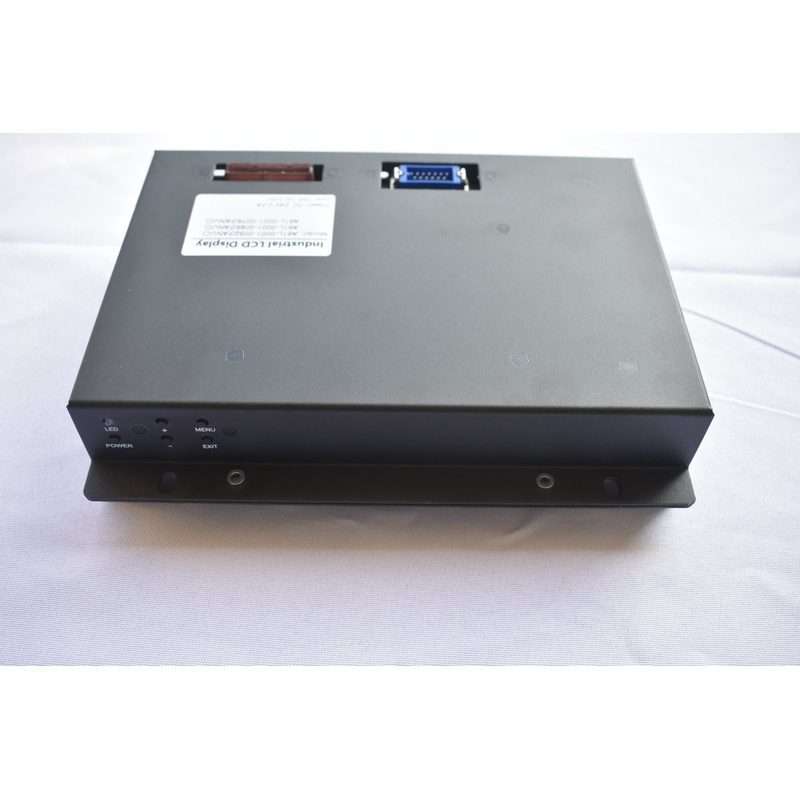

FANUC A61L-0001-0086 9-inch CRT Replacement | LCD CNC Monitor Upgrade

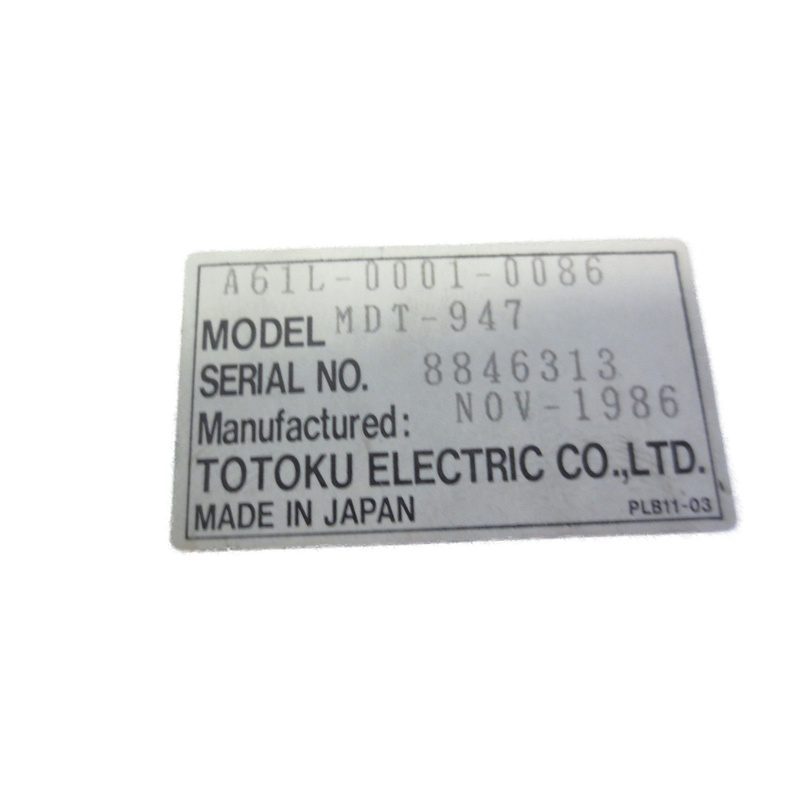

FANUC A61L-0001-0086 9-inch CRT to 8-inch TFT-LCD upgrade. Factory direct, 50,000hr lifespan, plug-and-play. Also cross-referenced as MDT-947.
$280
USD
✔️ In Stock — 2-Year Warranty
🛒 Buy Now
1
—
—
🔒 Secure checkout via PayPal. Credit/debit cards accepted.
Specifications
| Spec | Original CRT | Kongto LCD |
|---|---|---|

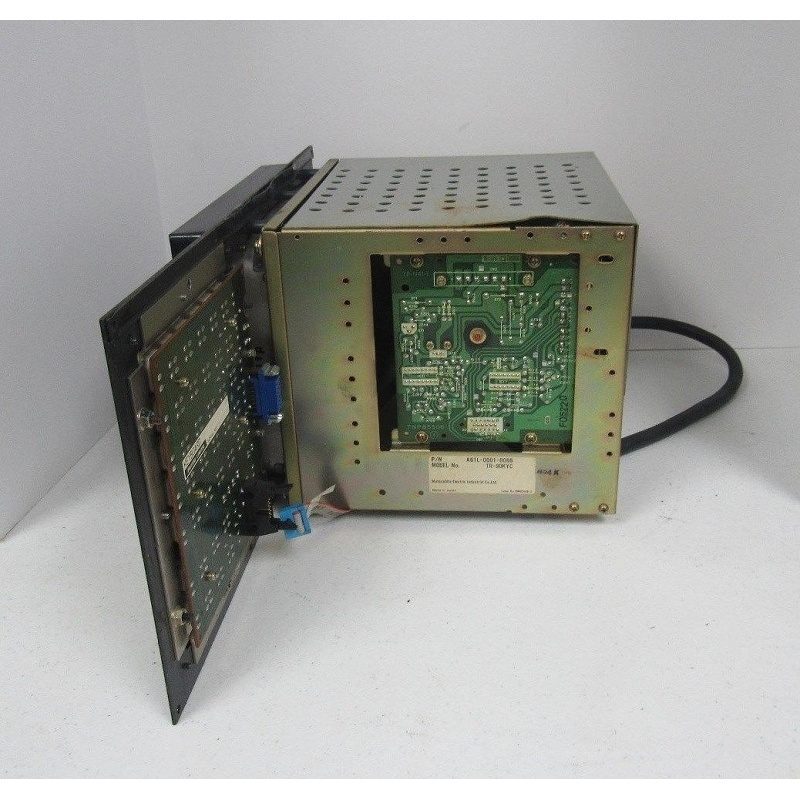

| Technology | 9-inch Monochrome CRT | 8-inch TFT-LCD Industrial Panel |
| Resolution | 640x400 / 640x480 | 800x600 |
| Brightness | ~200 cd/m2 | 350-450 cd/m2 |
| Lifespan | ~15,000 hrs | 50,000+ hrs |
| Power | DC 24V | DC 24V (original) |
| Interface | 20-pin Honda MR-20M | 20-pin Honda (direct compatible) |
| Safety | High voltage (10-15kV) | Low voltage DC |
| Weight | — | 1.5 kg |
Compatible Systems
- FANUC Series 0 / 0-Mate / 0-TMate
- FANUC 0i-A / 0i-B / 0i-C / 0i-D
- FANUC Series 16i / 18i / 21i
- All CNC machines with FANUC A61L-0001-0086 display
Common CRT Failure Symptoms
- Blank screen / no power — Flyback transformer failure, most common in aging CRTs
- Dim or unreadable display — CRT phosphor wear after 15,000+ hours of operation
- Flickering or image distortion — Capacitor degradation in sync circuits
- No image / raster only — Video amplifier or electron gun failure
- Intermittent display — Loose internal connections or cold solder joints
Our LCD module eliminates all CRT-related failure modes permanently. Higher brightness, lower power, no high voltage.
Frequently Asked Questions
Does this work with my CNC machine?
Yes. Uses same connector as original CRT. Drop-in replacement. No parameter changes needed.
Installation time and difficulty?
10-15 minutes: power off, remove screws, swap display, reconnect. No soldering required.
Image quality vs original CRT?
800x600 resolution, higher brightness, 50,000+ hr lifespan. Sharper image, no flicker.
Warranty and support?
2-Year Warranty, lifetime technical support, worldwide shipping from our Shenzhen factory.
What Our Customers Say
"Very satisfied. Replaced CRT on our FANUC 0M. Boot up immediately, no adjustments."
"Good product for the price. Solid build quality. Delivery was faster than expected."
"Second purchase. First one still going strong after 18 months. Consistent quality."
Warranty & Service
2-Year Warranty — Lifetime Technical Support — Worldwide Shipping
Factory direct from Shenzhen, China. Ships within 24 hours.
Email: [email protected] | WhatsApp: +86-13686889647
No CNC parameter changes needed — Plug and play, your machine programs and settings stay intact.
Factory direct from Shenzhen, China. Ships within 24 hours.
Email: [email protected] | WhatsApp: +86-13686889647
No CNC parameter changes needed — Plug and play, your machine programs and settings stay intact.
Ready to replace your CRT?
$280 — In Stock — Ships within 24 hours
