Haas CNC CRT to LCD Upgrade Case Study

From Legacy CRT to High-Performance LCD — Professional Upgrade for Haas VF / SL / EC Series

Industry Pain Points: Aging CRT Monitors in Haas Equipment

Haas Automation CNC machines (VF Series, SL Series, EC Series) are widely used in precision machining workshops worldwide for their reliability and ease of use. However, machines installed 15–20 years ago almost universally use CRT (Cathode Ray Tube) displays, which degrade significantly over time.

Common failure symptoms include:

Screen flickering — Unstable image, eye strain for operators
Color distortion / monochrome failure — Critical display information becomes unreadable
Brightness fade — CRT ages and dims; maximum brightness setting no longer helps
High-voltage failure — CRT high-voltage circuits fail, causing intermittent black screen
Obsolete spare parts — Original Haas CRT monitors are long out of production; replacements are unavailable or extremely expensive

When a CRT monitor fails, the machine tool stops operating — directly impacting production schedules and delivery commitments.

Aging CRT monitor on Haas VF Series machine — Fig.1: Aging CRT monitor on Haas VF Series — flickering, dim, approaching end-of-life | Source: Kongto Technology

The LCD Replacement Solution: Non-Destructive Upgrade, Plug-and-Play

For classic Haas models including VF Series, SL Series, and EC Series, we provide an industrial-grade LCD monitor non-destructive replacement solution:

Hardware compatible — Perfectly matches Haas original interface; no machine circuit modification required; direct CRT replacement
Image quality upgrade — Industrial-grade HD LCD panel, high contrast, anti-interference, no flicker
Stable and durable — Wide-temperature design, shock-resistant and dust-proof
Long-term supply guarantee — In stock; supports customization for all Haas machine models

Installation Note: Please carefully read the specification sheet before installation. Confirm power supply and signal interface specifications.

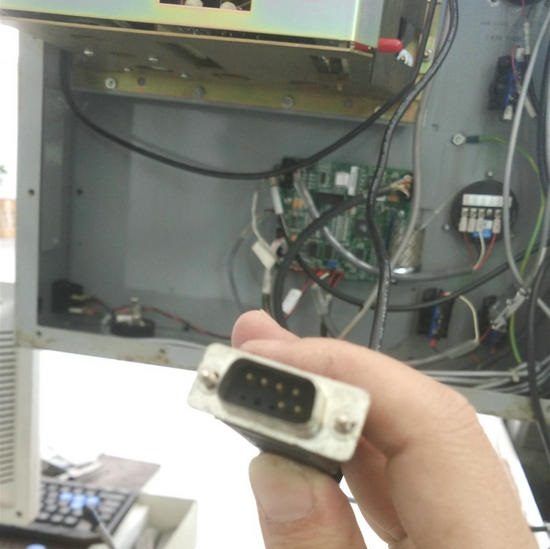

Haas original CRT monitor interface before replacement — Fig.2: Haas original CRT monitor interface (before replacement) | Source: Kongto Technology

Haas LCD replacement monitor plug-and-play interface after replacement — Fig.3: Haas LCD replacement — plug-and-play interface (after replacement) | Source: Kongto Technology

Real Implementation Case Study

Case: Precision Parts Manufacturing Factory

Haas VF-3 / VF-5 Vertical Machining Centers

Machine Models:
Haas VF-3, VF-5 (3 units)

Issue:
CRT monitor failure, frequent downtime

Solution:
LCD plug-and-play replacement

Install Time:
30 minutes per machine

Background: Multiple Haas VF-3/VF-5 vertical machining centers experienced CRT monitor failures, with frequent downtime affecting order delivery.

Results after LCD upgrade:

On-site installation: Each machine completed within 30 minutes; production resumed the same day
Performance: Sharp, clear image; zero anomalies in machine system operation
Maintenan
