Mitsubishi KF-M7099H LCD upgrade installed on CNC machine front view

Mitsubishi KF-M7099H
LCD Upgrade Display

Q: Does this work with Mitsubishi Meldas M50 and M60 controls?

Yes. The KF-M7099H was used across M50, M60, M300, M500, and M600 series controls. The LCD works with all of them.

Q: Does this also fit BM09DF or FCUA-CT100 CRTs?

Yes. The KF-M7099H, BM09DF, and FCUA-CT100 share the same mounting pattern, connector, and signal protocol. Our LCD replaces all three.

Q: Installation time?

10–15 minutes. Power off, swap displays, reconnect two keyed connectors, power on.

Q: Warranty?

2-Year Warranty, lifetime technical support, worldwide shipping.

Q: Why is my Fanuc A61L-0001-0093 CRT monitor blinking or flickering, and how do I fix it?

A blinking or flickering Fanuc CRT is typically caused by aging high-voltage flyback transformers inside the original 9-inch CRT display. The most reliable fix is to replace the obsolete CRT with a plug-and-play LCD upgrade. Our LCD retrofit modules feature automated horizontal/vertical frequency synchronization that eliminates screen flickering instantly without rewiring. No temporary CRT repair will last more than 6-12 months.

Q: Is it cheaper to repair my old CNC CRT or upgrade to an LCD?

Based on real customer data, CRT repair is significantly more expensive long-term. A typical Fanuc 0-TC CRT required 4 repairs in 18 months totaling over $1,800, plus over a week of machine downtime. An LCD upgrade costs $155-$350 one-time, lasts 50,000+ hours with zero maintenance, and installs in under 15 minutes. Case studies show 5-year savings of over 98% when upgrading instead of repairing.

Q: Can I use a standard consumer LCD monitor to replace my Fanuc CNC CRT display?

No. Standard consumer LCD monitors cannot recognize the low-frequency RGB analog signals (MDA/CGA/EGA timing) that legacy Fanuc CNC systems output. They will display an "Unsupported Signal" error. Consumer monitors also lack the 20-pin Honda connector and cannot withstand shop-floor vibrations, oil mist, and high temperatures. You need an industrial-grade CRT-to-LCD retrofit kit with proprietary timing firmware and original connector compatibility.

9-inch TFT-LCD plug-and-play replacement. No CNC parameter changes needed. 30-minute installation.

$155 USD

In Stock — 2-Year Warranty

Get a Quote Tech Article

🛒 Buy Now

Unit Price:

Qty:

Ship to:

Total Wt:

Shipping: —

Total: —

Payment button loading...

🔒 Secure checkout via PayPal. Credit/debit cards accepted.

Tech Specs: CRT vs Kongto LCD

Spec	Original CRT	Kongto LCD
Technology	9" Monochrome CRT	TFT-LCD Industrial Panel
Resolution	640x400	800x600 (Higher)
Brightness	200 cd/m2	250 cd/m2
Lifespan	~15,000 hrs	50,000+ hrs
Power	25-30W	<=10W (60%+ savings)
Temperature	0~40C	-10~+60C
Interface	Direct motherboard connector	Direct motherboard connector (100% compatible)
Safety	High voltage (10-15kV)	Low voltage DC 12/24V
Weight	~1.5kg	~1.5kg

Compatible Systems

Mitsubishi Meldas M50/M500/M520
Mitsubishi MELDAS Series
Also fits BM09DF and FCUA-CT100 compatible machines

Common Mitsubishi KF-M7099H CRT Display Failures

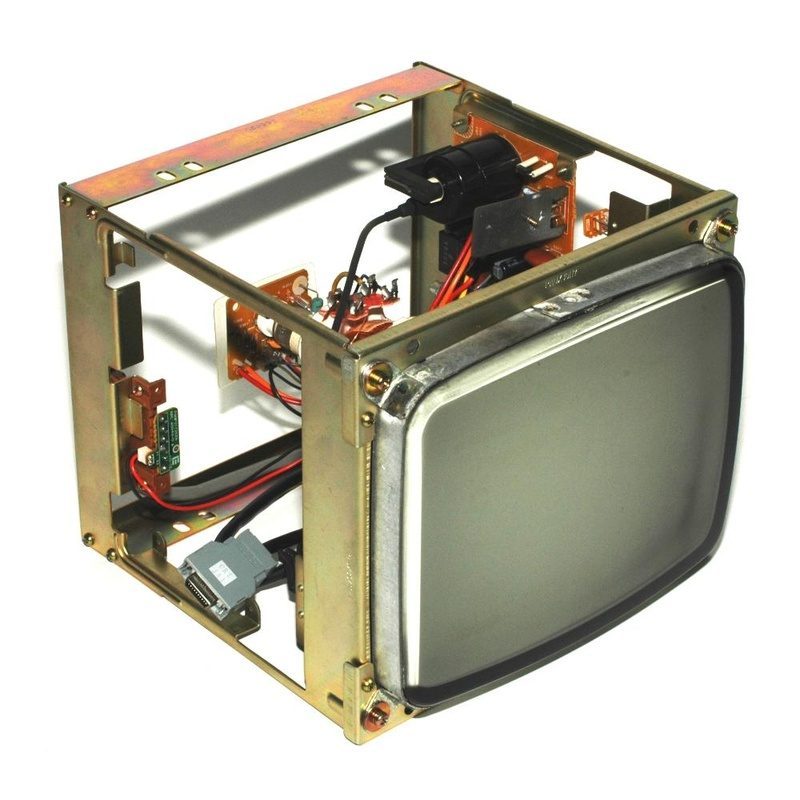

The KF-M7099H is a 9-inch monochrome CRT used on Mitsubishi Meldas CNC systems (M50/M60/M300/M500/M600). After decades of use, these units fail in predictable ways:

Blank screen / no raster — The CRT flyback transformer fails. The CNC powers up but the display stays dark.
Dim display — CRT phosphor degradation. The image is too faint to read under normal shop lighting.
Shrinking or rolling image — Dried-out electrolytic capacitors in the deflection driver cause the image to collapse or roll.
Intermittent display — Cold solder joints cause the display to cut in and out when the machine is moved or vibrated.

These are CRT hardware failures. The Mitsubishi CNC control is typically still generating the correct video — our LCD displays it immediately after installation.

Mitsubishi KF-M7099H Signal Wiring

The KF-M7099H uses a monochrome TTL-level video signal. Our LCD module accepts this directly — no sync combiner or level converter needed.

Pin	Signal	Description
1	GND	Chassis / Signal Ground
2	Video	Monochrome composite video (TTL 0–5V)
3	GND	Video Ground
4	HS	Horizontal Sync
5	VS	Vertical Sync
6	+24V	DC Power Input
7	GND	Power Ground
8–10	NC	Not Connected on this model

Frequently Asked Questions

Does this work with Mitsubishi Meldas M50 and M60 controls?

Yes. The KF-M7099H was used across M50, M60, M300, M500, and M600 series controls. The LCD works with all of them.

Does this also fit BM09DF or FCUA-CT100 CRTs?

Yes. The KF-M7099H, BM09DF, and FCUA-CT100 share the same mounting pattern, connector, and signal protocol. Our LCD replaces all three.

Installation time?

10–15 minutes. Power off, swap displays, reconnect two keyed connectors, power on.

Warranty?

2-Year Warranty, lifetime technical support, worldwide shipping.

Why is my Fanuc A61L-0001-0093 CRT monitor blinking or flickering, and how do I fix it?

A blinking or flickering Fanuc CRT is typically caused by aging high-voltage flyback transformers inside the original 9-inch CRT display. The most reliable fix is to replace the obsolete CRT with a plug-and-play LCD upgrade. Our LCD retrofit modules feature automated horizontal/vertical frequency synchronization that eliminates screen flickering instantly without rewiring. No temporary CRT repair will last more than 6-12 months.

Is it cheaper to repair my old CNC CRT or upgrade to an LCD?

Based on real customer data, CRT repair is significantly more expensive long-term. A typical Fanuc 0-TC CRT required 4 repairs in 18 months totaling over $1,800, plus over a week of machine downtime. An LCD upgrade costs $155-$350 one-time, lasts 50,000+ hours with zero maintenance, and installs in under 15 minutes. Case studies show 5-year savings of over 98% when upgrading instead of repairing.

Can I use a standard consumer LCD monitor to replace my Fanuc CNC CRT display?

No. Standard consumer LCD monitors cannot recognize the low-frequency RGB analog signals (MDA/CGA/EGA timing) that legacy Fanuc CNC systems output. They will display an "Unsupported Signal" error. Consumer monitors also lack the 20-pin Honda connector and cannot withstand shop-floor vibrations, oil mist, and high temperatures. You need an industrial-grade CRT-to-LCD retrofit kit with proprietary timing firmware and original connector compatibility.

What Our Customers Say

"CRT was too dim to read. LCD arrived fast, installed in 15 minutes. Crystal clear. Great upgrade."

— John D., USA (June 2026)

"Perfect plug-and-play replacement. No modifications needed. Works great. Ordering more."

— Marco R., Italy (May 2026)

"After 20+ years our CRT died. This LCD brought our CNC back to life. Excellent quality."

— Akira T., Japan (June 2026)

Warranty & Service

1-Year Warranty - Lifetime Technical Support - Free Shipping Worldwide

Ready to upgrade?

[email protected] | +86-13686889647 | WhatsApp

Wholesale / OEM Orders

We accept bulk orders and OEM customization. Factory direct, fast delivery, stable quality. MOQ negotiable. Contact us for volume pricing.

📞 +86-13686889647 | ✉️ [email protected]
