Mitsubishi FCUA-CT100 9-inch CRT to 8-inch LCD Upgrade | M500 M520 Display

Mitsubishi FCUA-CT100 9-inch CRT to 8-inch TFT-LCD replacement for M500/M520 systems. Factory direct, plug-and-play. Ships today.

View Specs & Guide

$175 USD ✔️ In Stock — 2-Year Warranty

🛒 Buy Now

1
—
—

Payment button loading...

🔒 Secure checkout via PayPal. Credit/debit cards accepted.

Mitsubishi LCD upgrade display

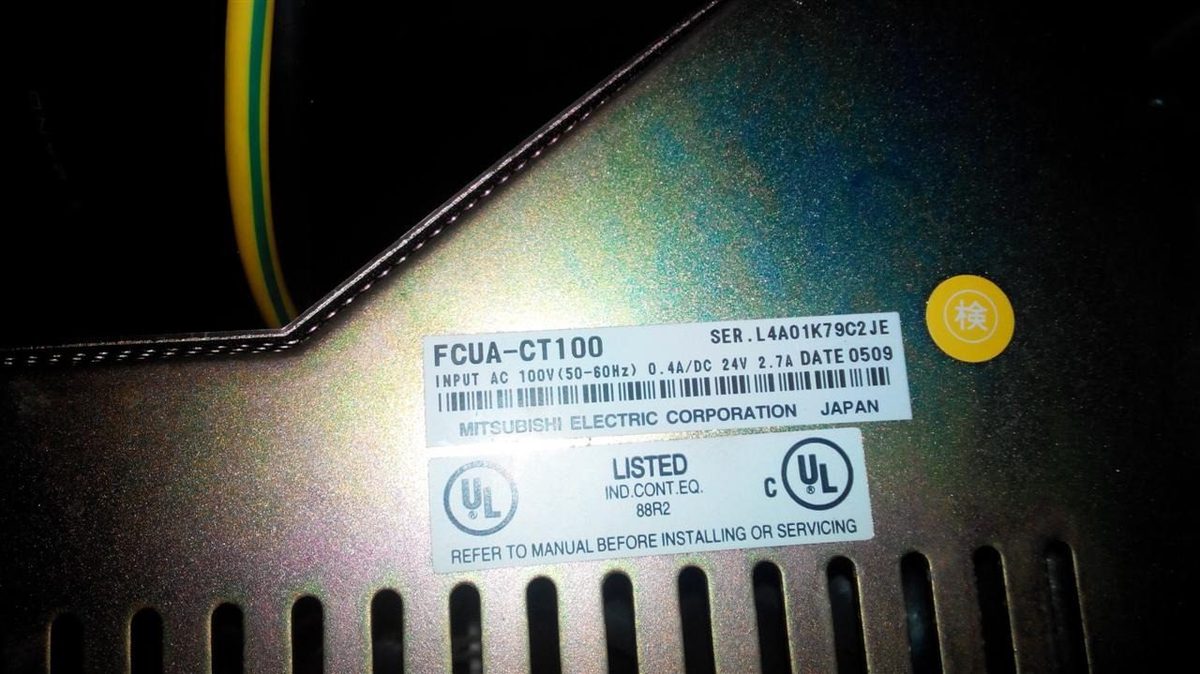

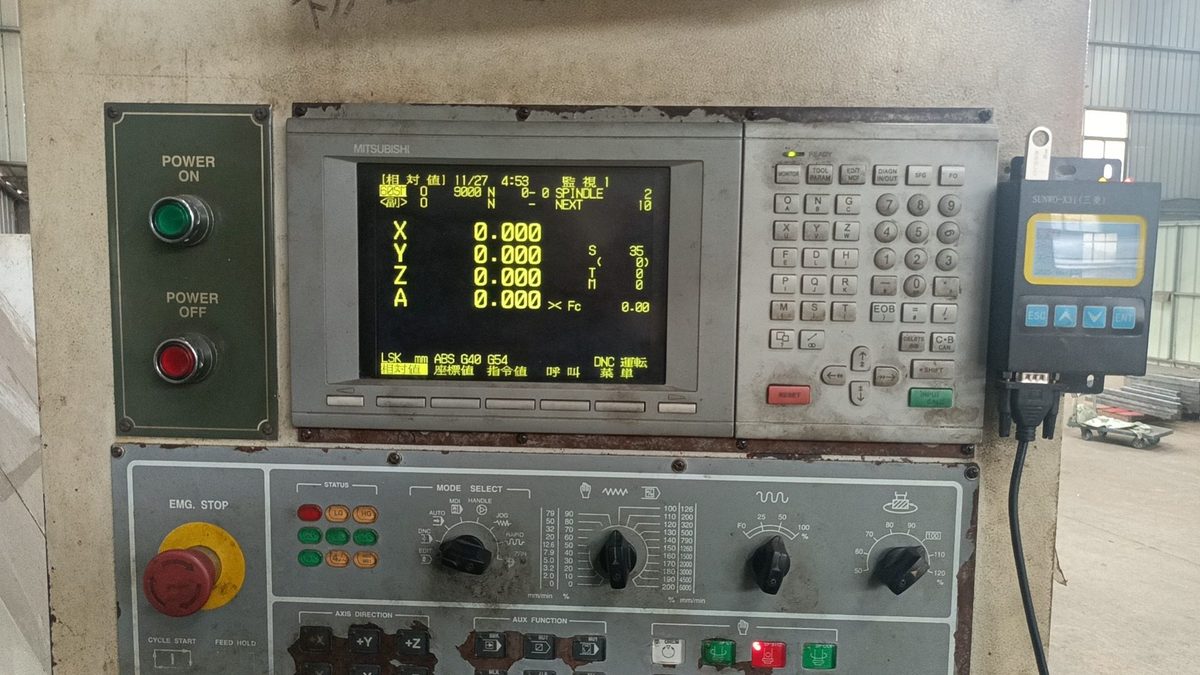

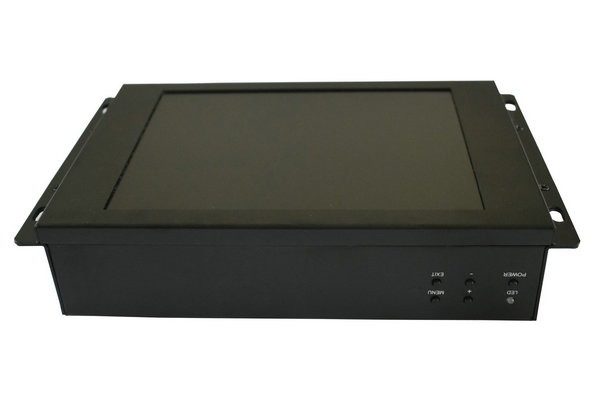

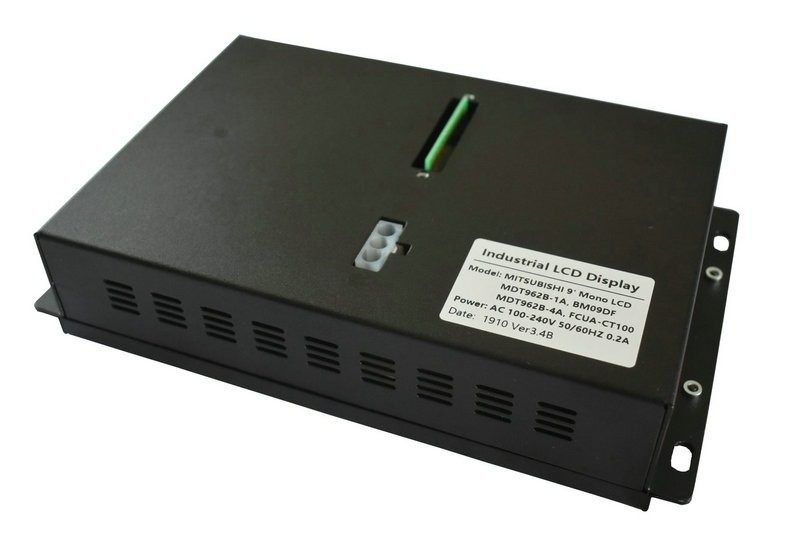

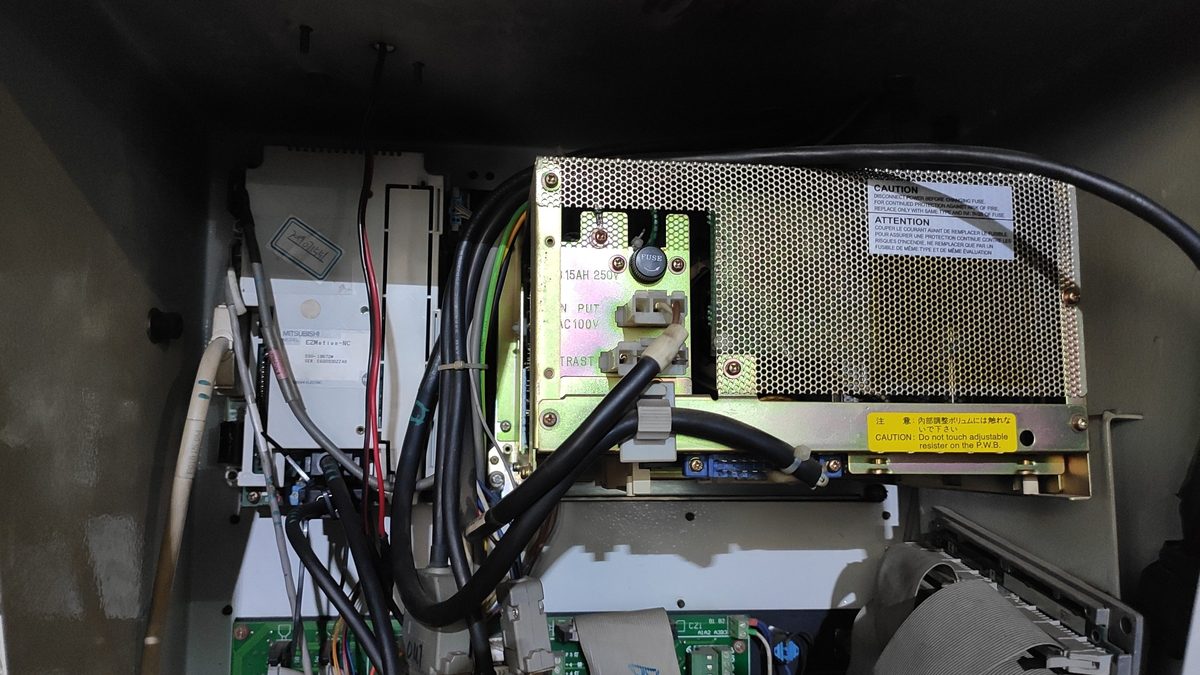

Mitsubishi FCUA-CT100 9-inch CRT to LCD replacement panel - front view Mitsubishi FCUA-CT100 9-inch CRT to LCD replacement panel - back view Mitsubishi FCUA-CT100 9-inch CRT to LCD upgrade installation effect Mitsubishi FCUA-CT100 9-inch CRT product label Mitsubishi FCUA-CT100 9-inch CRT original CRT monitor

Specifications

SpecOriginal CRTKongto LCD
Technology9-inch Monochrome CRT8-inch TFT-LCD Industrial Panel
Resolution640×400 / 640×480800×600
Brightness~200 cd/m²350-450 cd/m²
Lifespan~15,000 hrs50,000+ hrs
Power SupplyAC 100-240VAC 100-240V (compatible)
InterfaceMitsubishi 10-pin10-pin direct compatible
Signal TypeRGB analogTTL / LVDS
Weight—1.5 kg

Compatible Systems

Frequently Asked Questions

Which CNC systems is this upgrade compatible with?
Mitsubishi M500/M520, M64, and E60 Series CNC systems. Uses the same connector as your original CRT — plug-and-play drop-in, no parameter changes needed.
Installation time and difficulty?
10-15 minutes: power off, remove 4 screws, swap display, reconnect. No soldering.
Image quality vs original CRT?
800×600 resolution, 350-450 cd/m² brightness, 50,000+ hr lifespan. Sharper, no flicker.
Warranty and support?
2-Year Warranty, lifetime support, worldwide shipping.

Warranty & Service

2-Year Warranty — Lifetime Technical Support — Worldwide Shipping
Email: [email protected] | WhatsApp: +86-13686889647
No CNC parameter changes needed — plug and play, your machine programs and settings stay intact.
CRT failure symptoms & repair cost · Customer results · Quality testing process

Ready to replace your CRT?

$175 — In Stock — Ships within 24 hours
