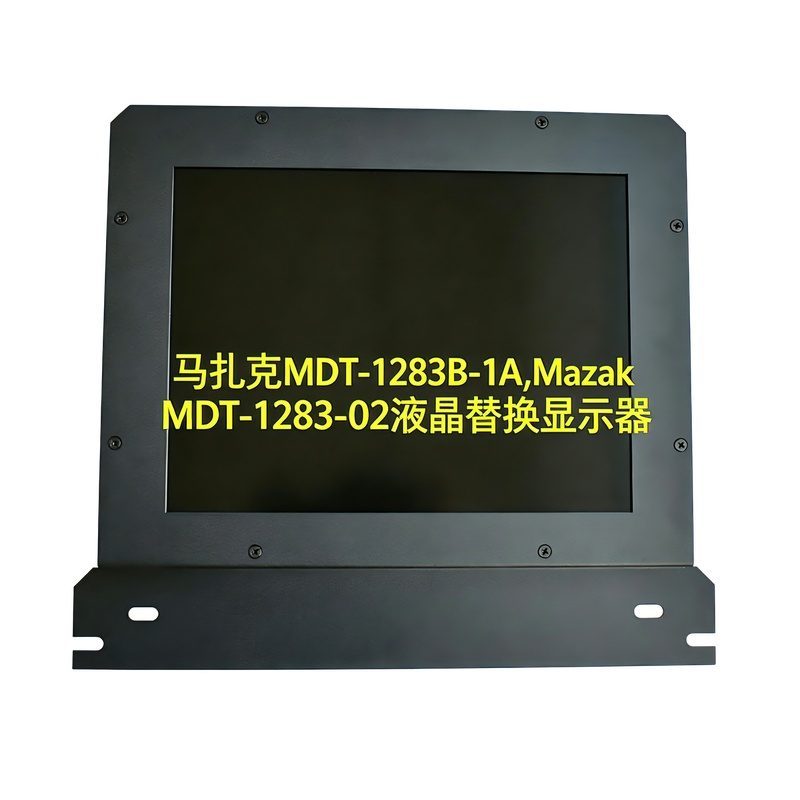

Mazak MDT1283B-1A LCD Replacement

Mazak MDT1283B-1A

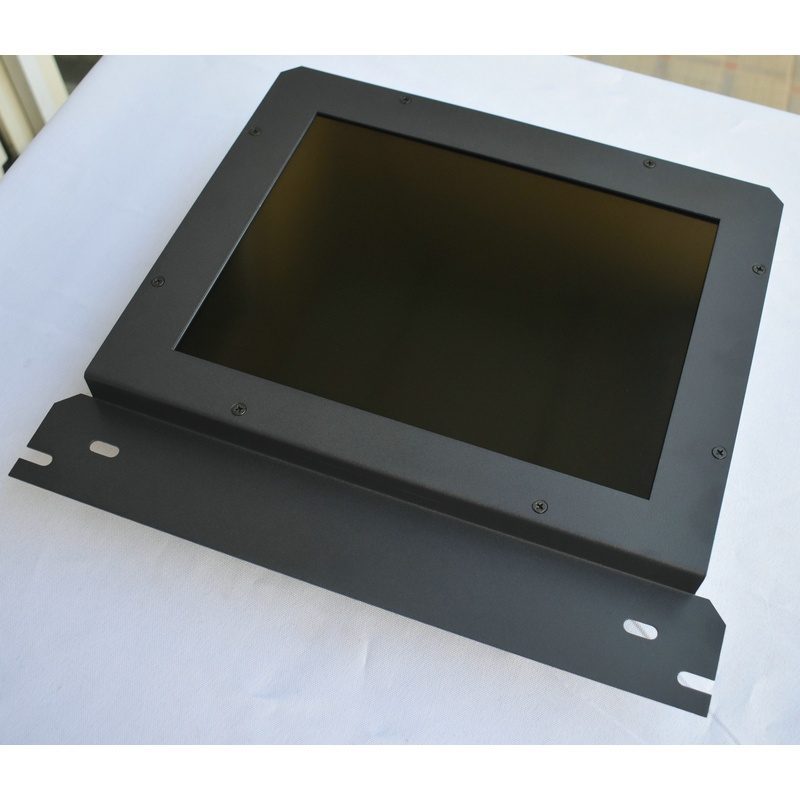

LCD Replacement Display

10.4-inch TFT TFT-LCD plug-and-play replacement. No modifications needed. 15-30 minute installation.

$355 USD

In Stock — 2-Year Warranty

Get a QuoteInstallation Guide

🛒 Buy Now

1
—
—

Payment button loading...

🔒 Secure checkout via PayPal. Credit/debit cards accepted.

Specifications: Original CRT vs Kongto LCD

SpecOriginal CRTKongto LCD
Technology12-inch Monochrome CRTTFT-LCD Industrial Panel
Screen Size12-inch12.1" LED-backlit LCD
Resolution640x400 / 640x480800x600
Brightness~200 cd/m2350-450 cd/m2
Lifespan~15,000 hrs50,000+ hrs
PowerDC 24VDC 24V (original)
InterfaceMulti-pin (MC712/MC714)Multi-pin (MC712/MC714) (direct compatible)
SafetyHigh voltage (10-15kV)Low voltage DC
Weight~2.5kg~2.5kg

Compatible Systems

Common MAZAK MDT1283B CRT Display Failures

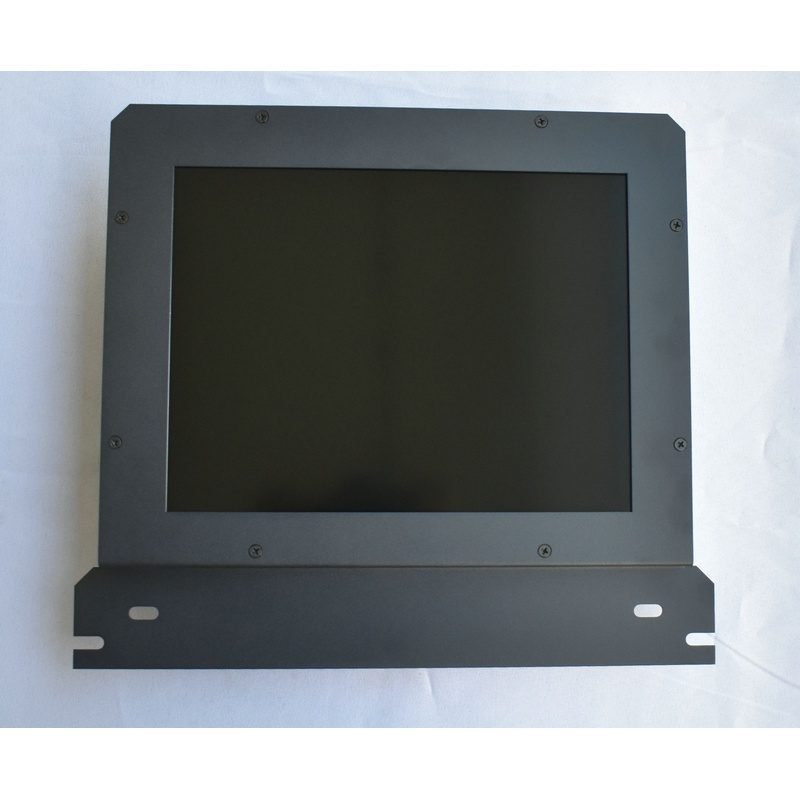

The MAZAK MDT1283B is a CRT display found on Mazak machines with Mazatrol controls, 12-inch CRT.

  • Blank or dim display — Mazak CRT flyback or phosphor failure after 20+ years.
  • Color shift (color units) — CRT neck board driver failure on Mazak color displays.
  • Flickering / geometry distortion — Capacitor aging in the deflection yoke circuit.

CRT hardware failures. The Mazak control (Mazatrol) continues to generate the correct video signal — our LCD displays it correctly.

Signal Wiring

Our LCD module connects directly to the existing CRT connector — no adapter or rewiring needed.

PinSignalDescription
1GNDSignal Ground
2Video (Mono) / R (Color)Video input
3GND / G (Color)Video Ground or Green channel
4B (Color) / NCBlue channel (color) or NC (mono)
5HSHorizontal Sync
6VSVertical Sync
7+24VDC Power
8GNDPower Ground

Note: Our LCD auto-detects whether the signal is monochrome or color and adjusts accordingly.

Frequently Asked Questions

Will this work with Mazatrol controls?

Yes. Designed for Mazak machines using Mazatrol M32, M2, T-plus, T32, 640, and Fusion controls.

What models does this replace?

This replaces MDT1283B-1A, DR5614, C-5470NS, AIQA8DSP40, and compatible 12–14 inch Mazak CRTs.

Installation time?

10–15 minutes. Power off, swap displays, reconnect connectors, power on.

Warranty?

2-Year Warranty, lifetime support, worldwide shipping.
