Mazak 14-Inch Color CRT
LCD Replacement Display
12.1-inch TFT TFT-LCD plug-and-play replacement. No modifications needed. 15-30 minute installation.
In Stock — 2-Year Warranty
🛒 Buy Now
🔒 Secure checkout via PayPal. Credit/debit cards accepted.

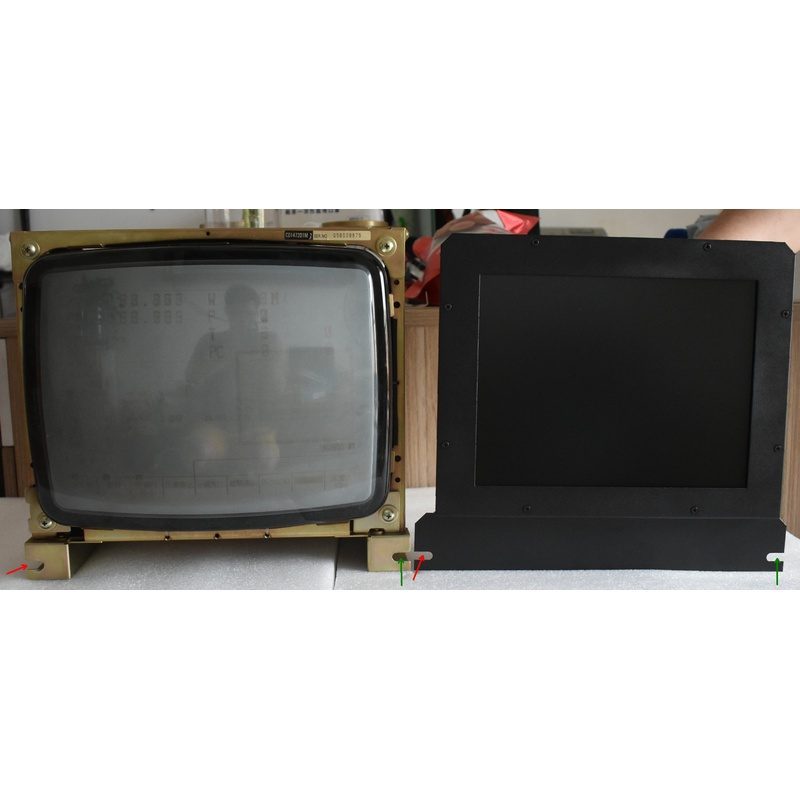

Specifications: Original CRT vs Kongto LCD
| Spec | Original CRT | Kongto LCD |
|---|---|---|
| Technology | 14-inch Color CRT | TFT-LCD Industrial Panel |
| Screen Size | 14-inch | 12.1" LED-backlit LCD |
| Resolution | 640x400 / 640x480 | 800x600 |
| Brightness | ~200 cd/m2 | 350-450 cd/m2 |
| Lifespan | ~15,000 hrs | 50,000+ hrs |
| Power | DC 24V | DC 24V (original) |
| Interface | 26-pin / MC714 | 26-pin / MC714 (direct compatible) |
| Safety | High voltage (10-15kV) | Low voltage DC |
| Weight | ~3.5kg | ~3.5kg |
Compatible Systems
- Mazak DR5614 (14" color CRT)
- Mazak C-5470 / C-5470NS (14" color CRT)
- Mazak AIQA8DSP40 (Sharp 14" CRT)
- Mazak 26S-14O19L (14" CRT)
- Mazak HM-12PDB / MDT1216
- OEM Part D72MA001840
- Compatible Mazatrol T-Plus / T2 / T3

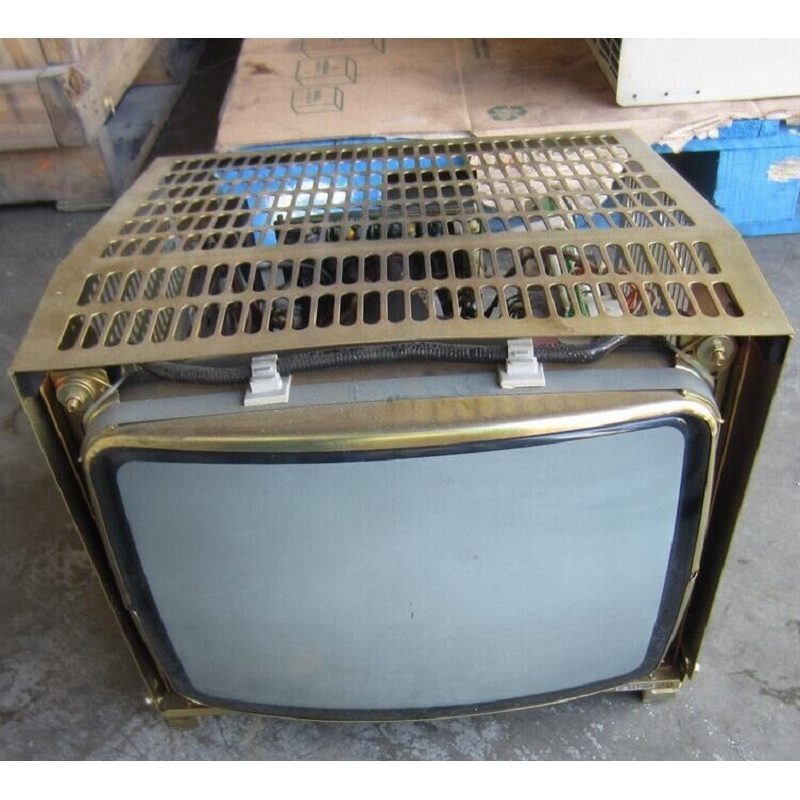

Common MAZAK 14 INCH CRT CRT Display Failures
The MAZAK 14 INCH CRT is a CRT color CRT display found on Mazak machines with Mazatrol controls.
- Blank or dim display — Mazak CRT flyback or phosphor failure after 20+ years.
- Color shift (color units) — CRT neck board driver failure on Mazak color displays.
- Flickering / geometry distortion — Capacitor aging in the deflection yoke circuit.

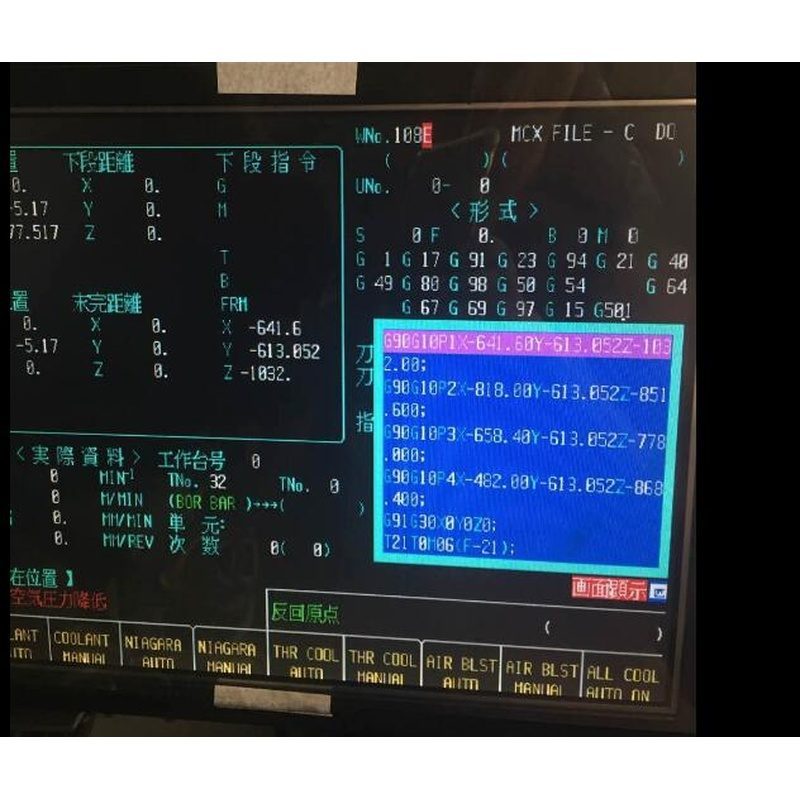

CRT hardware failures. The Mazak control (Mazatrol) continues to generate the correct video signal — our LCD displays it correctly.

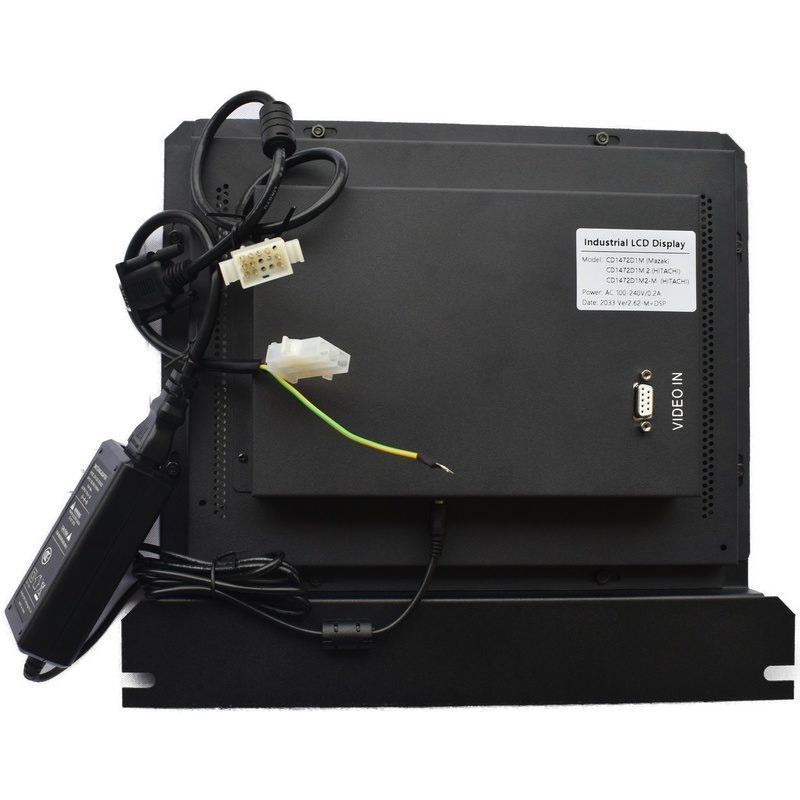

Signal Wiring
Our LCD module connects directly to the existing CRT connector — no adapter or rewiring needed.
| Pin | Signal | Description |
|---|---|---|
| 1 | GND | Signal Ground |
| 2 | Video (Mono) / R (Color) | Video input |
| 3 | GND / G (Color) | Video Ground or Green channel |
| 4 | B (Color) / NC | Blue channel (color) or NC (mono) |
| 5 | HS | Horizontal Sync |
| 6 | VS | Vertical Sync |
| 7 | +24V | DC Power |
| 8 | GND | Power Ground |
Note: Our LCD auto-detects whether the signal is monochrome or color and adjusts accordingly.
Frequently Asked Questions
Will this work with Mazatrol controls?
What models does this replace?
Installation time?
Warranty?
