Sharp AIQA8DSP40 14"ColorCRT
LCD Upgrade Display
Sharp AIQA8DSP40 14"ColorCRT转12.1"TFT-LCDPlug-and-play Upgrade Solution.专为Mazak AIQA8DSP40设计，CompatibleMazatrol T-32/640。26-PinInterface直连，No CNC parameter changes required，15-30 minute installation。
🛒 Buy Now
🔒 Secure checkout via PayPal. Credit/debit cards accepted.
Spec Comparison: Original CRT vs Kongto LCD
| Parameter | Original CRT | Kongto LCD |
|---|---|---|
| Screen Technology | 14"ColorCRT | Industrial TFT-LCD |
| Screen Size | 14" | 12.1" Industrial TFT-LCD |
| Resolution | 640x400 / 640x480 | 800x600 (Higher) |
| Brightness | ~200 cd/m² | 350-450 cd/m² |
| Lifespan | ~15,000Hours | 50,000+Hours |
| Power Consumption | 25-30W | 8-12W (60%+ Energy Saving) |
| Interface | 26-Pin | 26-Pin (100% Compatible) |
| Safety | High Voltage (10-15kV) | Low-Voltage DC 24V |
| Weight | ~3.5kg (incl. packaging) | ~3.5kg (incl. packaging) |
Compatible Systems

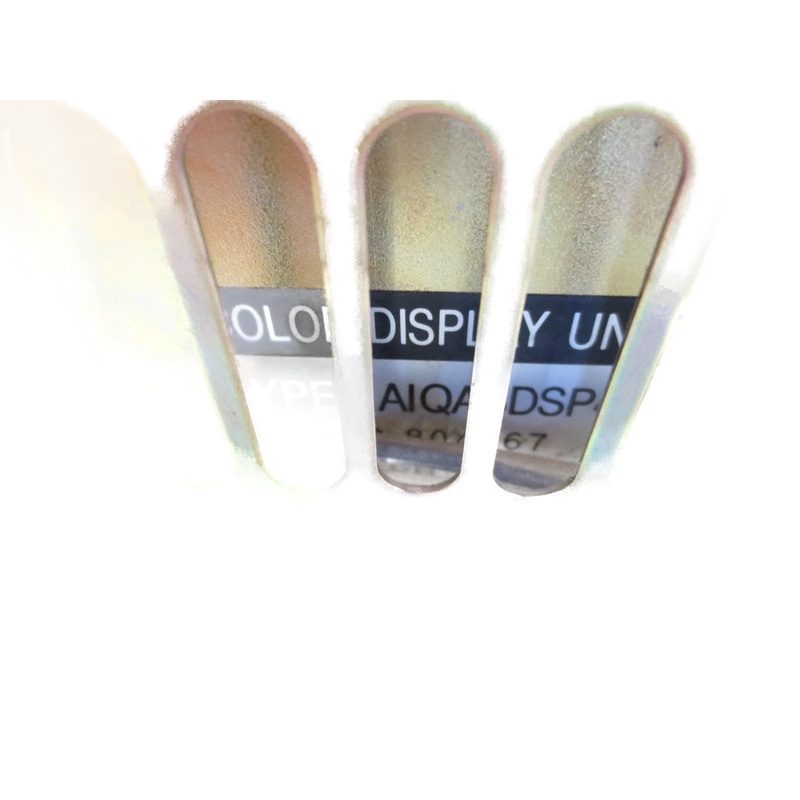

- Mazak AIQA8DSP40（Sharp 14"ColorCRT）
- CompatibleMazatrol T-32/640控制 Series
- 26-PinInterface标准
Sharp AIQA8DSP40 CRTCommon Failures

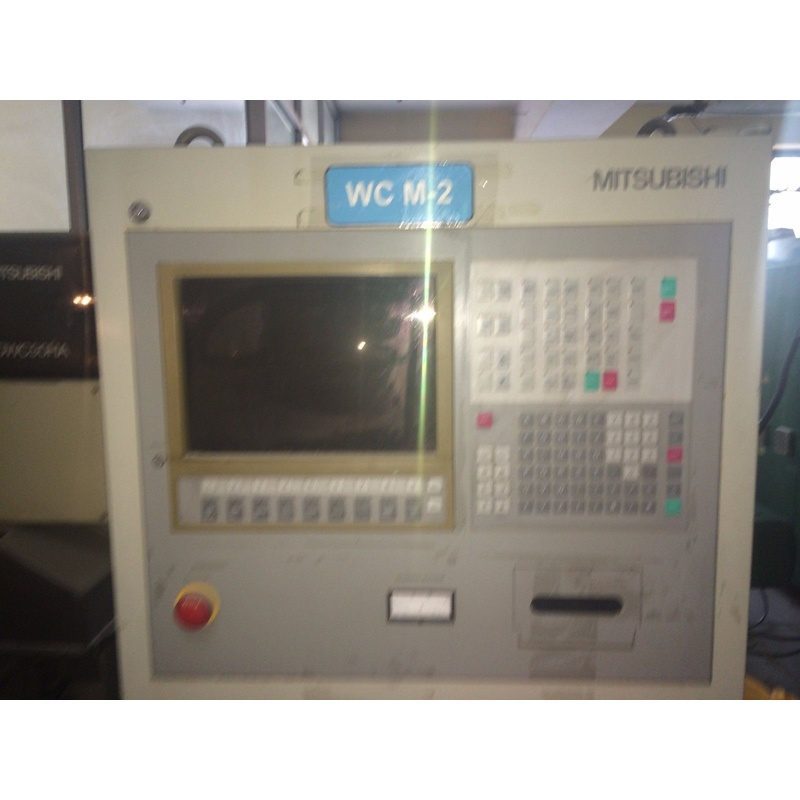

Sharp AIQA8DSP40是用于Mazak Mazatrol T-32/640控制 Series的14"ColorCRT显 Display，Common failures after 20+ years of service:：
- Black screen or dim display — CRT flyback transformer or phosphor failure。
- Color shift — CRT socket driver board failure。
- Flickering/Geometric distortion — Deflection circuit capacitor aging。
Common CNC CRT Display Problems
After 15-30 years of operation, CRTs develop characteristic failure modes:
- Blank screen / no display — Heater or flyback transformer failure. CNC still operates but screen stays dark.
- Dim display / low brightness — Phosphor degradation from extended use.
- Flickering or shaky image — Sync circuit components drift out of spec.
- Horizontal/vertical line collapse — Deflection circuit failure.
- Burned-in image / ghosting — Static elements permanently visible on phosphor.
The CNC control itself is typically still functional — replacing just the display with our LCD module restores full visibility.
Signal Wiring & Pinout (HONDA 20-Pin)
The CRT connects via a standard HONDA 20-pin connector. Our LCD module uses the same connector — no rewiring or adapter boards needed.
| Pin | Signal | Description |
|---|---|---|
| 1-2 | GND | Signal Ground |
| 3 | R (Video) | Red / Monochrome Video |
| 4 | GND | Video Ground |
| 5 | HS | Horizontal Sync (TTL) |
| 6 | VS | Vertical Sync (TTL) |
| 7-8 | NC | Not Connected |
| 9 | +24V | DC Power Input |
| 10 | GND | Power Ground |
| 11-20 | NC/GND | Spare or Chassis Ground |
Frequently Asked Questions
Does this LCD replacement work with all CNC CNC models?
Will I lose any CNC functionality after replacing the CRT?
Installation time and difficulty?
Image quality compared to original CRT?
Warranty and support terms?
All of The above are CRT hardware failures..Mazak控制 Series（Mazatrol T-32/640）通常功能正常 — Our LCD module directly restores the display。
Signal Connection（26-PinInterface）

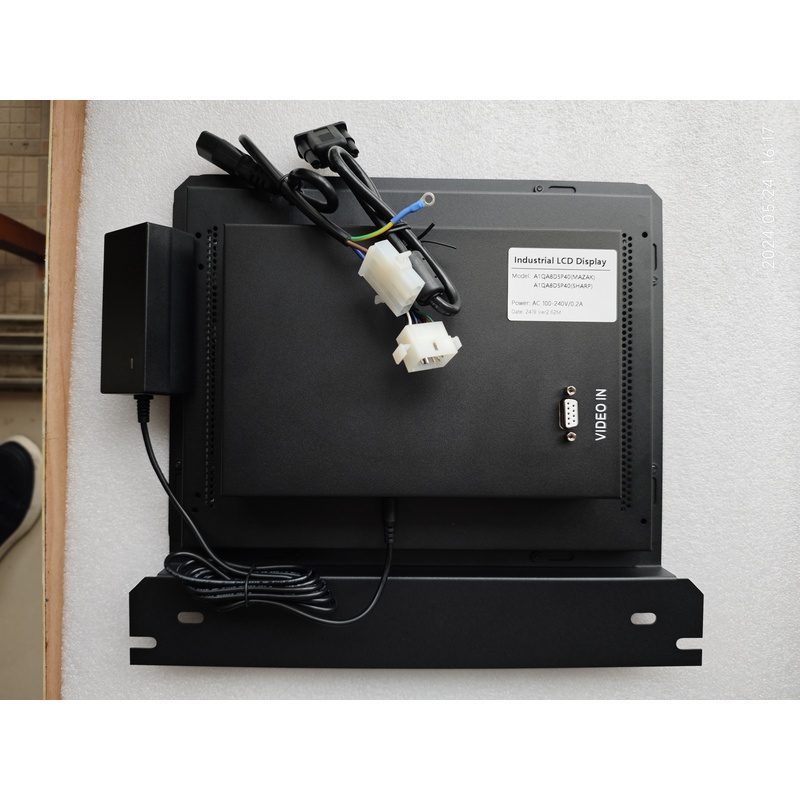

我们的LCD模块直接连接AIQA8DSP40原CRTInterface — No adapters or rewiring needed。
| Pin | Signal | Description |
|---|---|---|
| 1 | GND | Signal Ground |
| 2 | Video（Monochrome）/ R（Color） | Video Input |
| 3 | GND / G（Color） | Video Ground / Green Channel |
| 4 | B（Color）/ NC | Blue Channel or NC |
| 5 | HS | Horizontal Sync |
| 6 | VS | Vertical Sync |
| 7 | +24V | DC Power |
| 8 | GND | Power Ground |
What Our Customers Say
"CRT was too dim to read. LCD arrived fast, installed in 15 minutes. Works perfectly."
— John D., USA (June 2026)
"Perfect plug-and-play replacement. No modifications needed."
— Marco R., Italy (May 2026)
"After 20+ years our CRT died. This LCD brought our CNC back. Excellent quality."
— Akira T., Japan (June 2026)
Warranty与服务
2年Warranty
Upgrade Now您的Sharp AIQA8DSP40 CRT
