FANUC
FANUC A61L-0001-0076 9-inch CRT to LCD | Monitor Replacement Upgrade

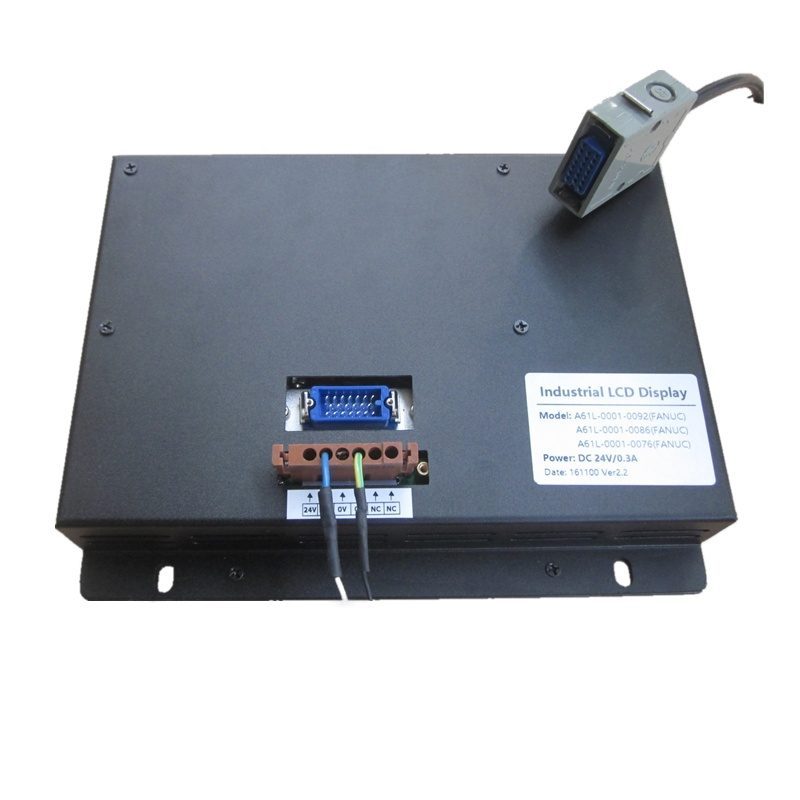

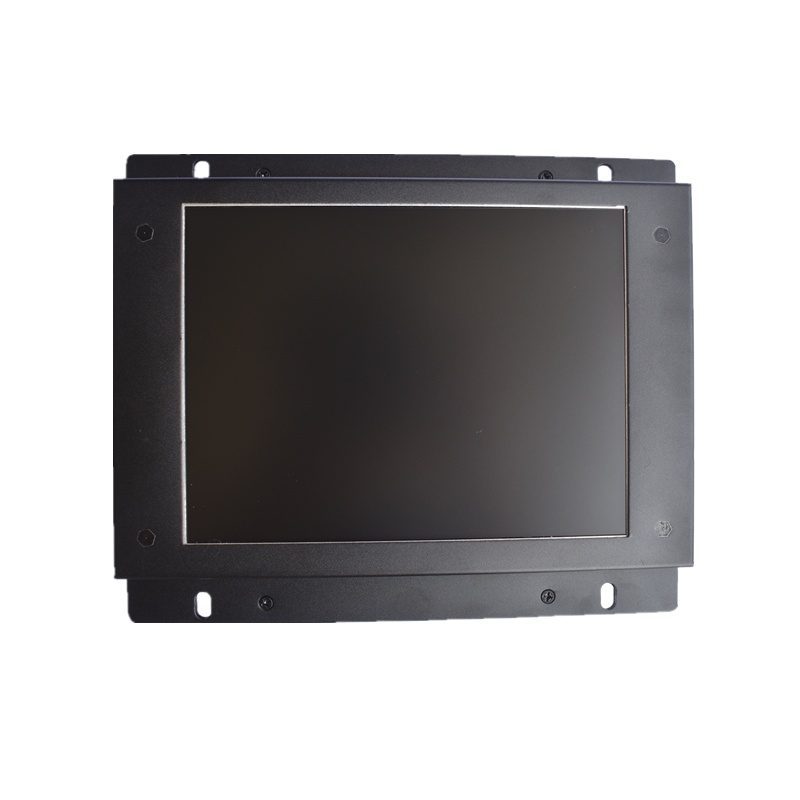

FANUC A61L-0001-0076 9-inch CRT to 8-inch TFT-LCD replacement. Factory direct, plug-and-play, in-position swap.
$280
USD
✔️ In Stock — 2-Year Warranty
🛒 Buy Now
1
—
—
🔒 Secure checkout via PayPal. Credit/debit cards accepted.
Specifications

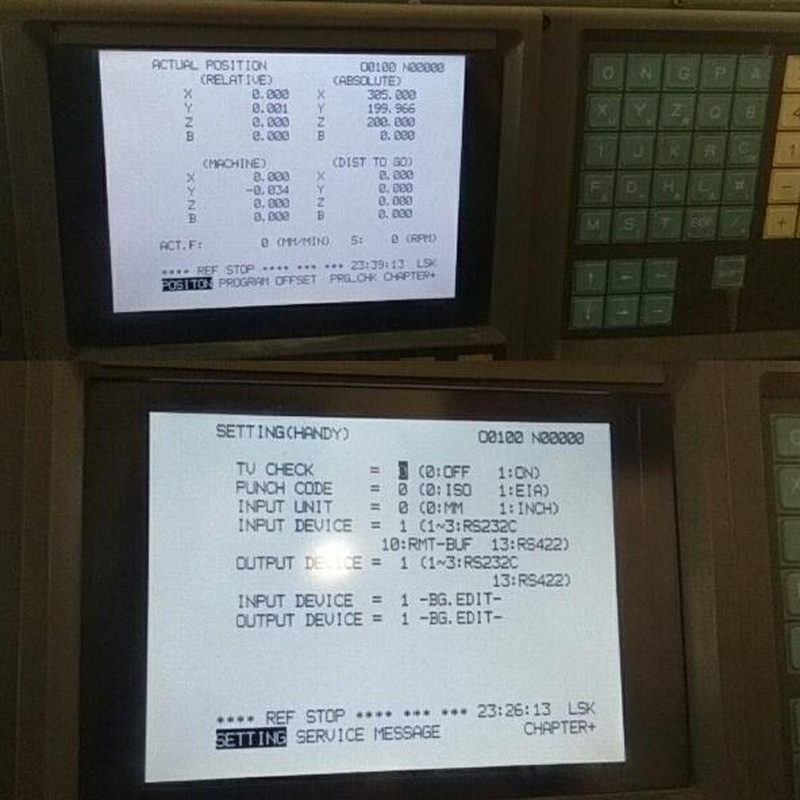

| Spec | Original CRT | Kongto LCD |
|---|---|---|
| Technology | 9-inch Monochrome CRT | 8-inch TFT-LCD Industrial Panel |
| Resolution | 640x400 / 640x480 | 800x600 |
| Brightness | ~200 cd/m2 | 350-450 cd/m2 |
| Lifespan | ~15,000 hrs | 50,000+ hrs |
| Power | DC 24V | DC 24V (original) |
| Interface | 20-pin Honda MR-20M | 20-pin Honda (direct compatible) |
| Safety | High voltage (10-15kV) | Low voltage DC |
| Weight | — | 1.5 kg |
Compatible Systems
- FANUC Series 0 / 0-Mate / 0-TMate
- FANUC 0i-A / 0i-B / 0i-C / 0i-D
- FANUC Series 16i / 18i / 21i
- All CNC machines with FANUC A61L-0001-0076 display
Common CRT Failure Symptoms
- Blank screen / no power — Flyback transformer failure, most common in aging CRTs
- Dim or unreadable display — CRT phosphor wear after 15,000+ hours of operation
- Flickering or image distortion — Capacitor degradation in sync circuits
- No image / raster only — Video amplifier or electron gun failure
- Intermittent display — Loose internal connections or cold solder joints
Our LCD module eliminates all CRT-related failure modes permanently. Higher brightness, lower power, no high voltage.
Frequently Asked Questions
Does this work with my CNC machine?
Yes. Uses same connector as original CRT. Drop-in replacement. No parameter changes needed.
Installation time and difficulty?
10-15 minutes: power off, remove screws, swap display, reconnect. No soldering required.
Image quality vs original CRT?
800x600 resolution, higher brightness, 50,000+ hr lifespan. Sharper image, no flicker.
Warranty and support?
2-Year Warranty, lifetime technical support, worldwide shipping from our Shenzhen factory.
What Our Customers Say
"Perfect plug-and-play. No modifications needed. Works great on our FANUC 0i-MC."
"After 20 years our CRT finally died. This LCD brought our machining center back to life."
"Great quality LCD. Much brighter than the old CRT. Easy 10-minute swap."
Warranty & Service
2-Year Warranty — Lifetime Technical Support — Worldwide Shipping
Factory direct from Shenzhen, China. Ships within 24 hours.
Email: [email protected] | WhatsApp: +86-13686889647
No CNC parameter changes needed — Plug and play, your machine programs and settings stay intact.
Factory direct from Shenzhen, China. Ships within 24 hours.
Email: [email protected] | WhatsApp: +86-13686889647
No CNC parameter changes needed — Plug and play, your machine programs and settings stay intact.
Ready to replace your CRT?
$280 — In Stock — Ships within 24 hours
