Does this work with my FANUC CNC machine?

Yes. FANUC LCD upgrade modules use the same connector pinout as the original CRT. Compatible with FANUC 0/0i/16i/18i/21i series. Drop-in replacement — no parameter changes needed.

How long does installation take?

10-15 minutes. Power off the machine, unplug the old CRT, connect the new LCD module, secure with screws. No soldering required.

Is it compatible with my FANUC CNC control?

Yes. Direct replacement for FANUC A61L CRT displays and compatible with FANUC 0/0i/16i/18i/21i series controls.

What warranty and support?

2-Year warranty, lifetime technical support, worldwide shipping from Shenzhen factory.

Volume discounts available for 5+ units. Contact info@cncdisplay.com for a bulk quote.

FANUC

FANUC A61L-0001-0072 9-inch LCD Upgrade | CRT Replacement CNC Monitor

Name: FANUC A61L-0001-0072 9-inch LCD Upgrade CNC Display | CRT Replacement Monitor
Brand: Kongto Technology
SKU: KTO-FANUC-0072
Price: 480 USD
Availability: InStock

FANUC A61L-0001-0072 9-inch CRT to 8-inch TFT-LCD upgrade. Factory direct, in-position replacement, 30-min install.

View Specs & Guide

$480 USD ✔️ In Stock — 2-Year Warranty

🛒 Buy Now

Unit Price:

Qty:

Ship to:

Total Wt:

Shipping: —

Total: —

Payment button loading...

🔒 Secure checkout via PayPal. Credit/debit cards accepted.

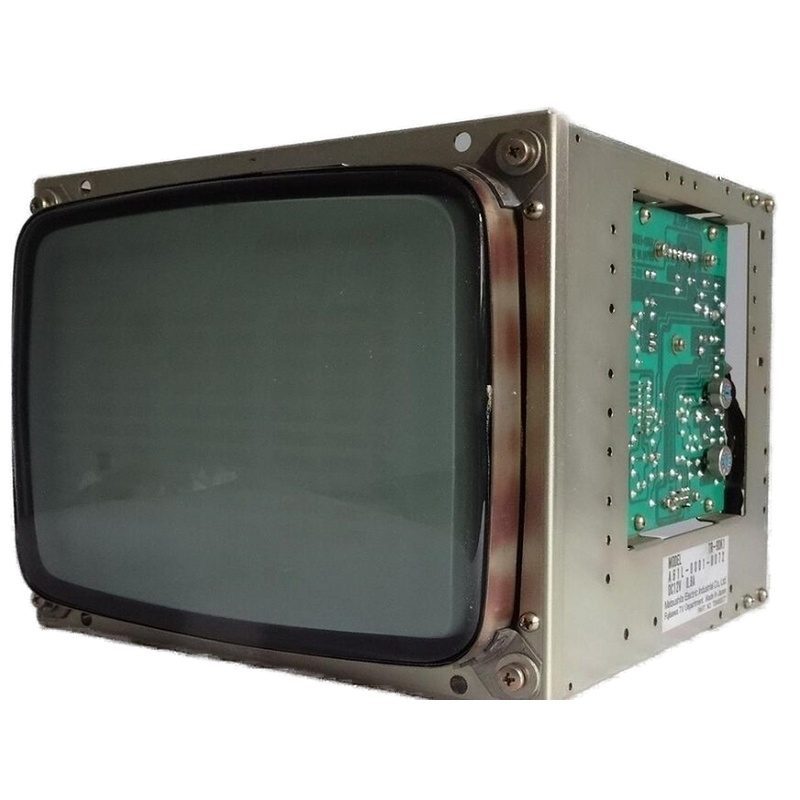

FANUC A61L-0001-0072 9-inch LCD replacement panel - front view

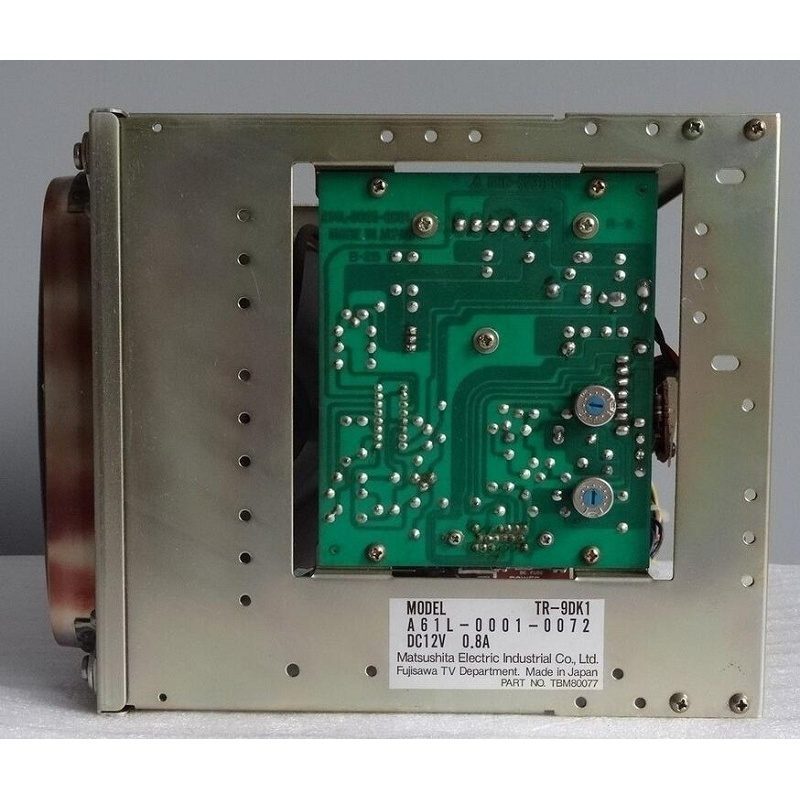

FANUC A61L-0001-0072 9-inch LCD replacement panel - back view

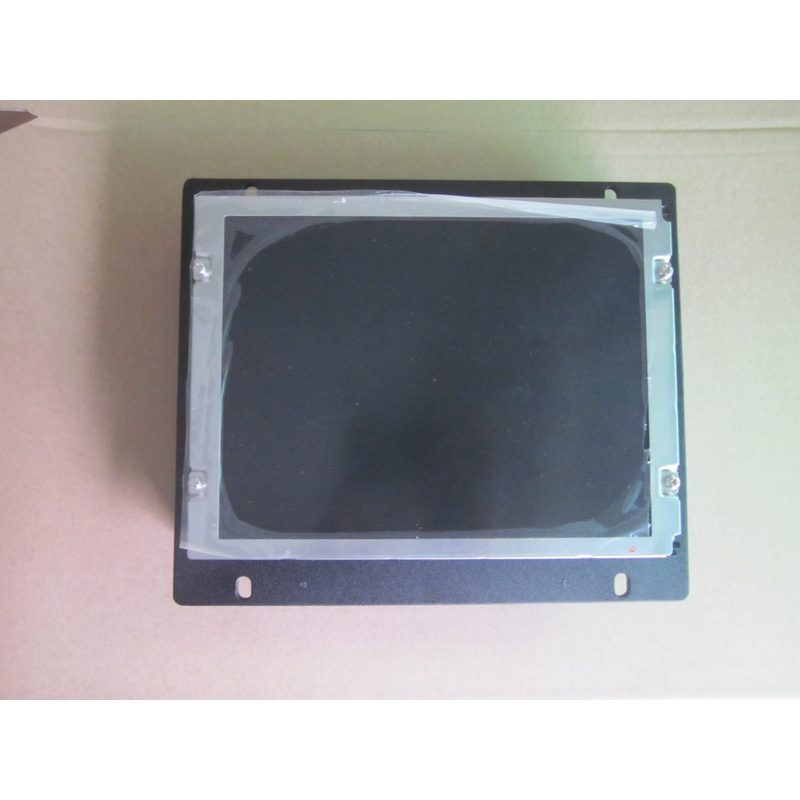

FANUC A61L-0001-0072 9-inch original CRT monitor

Specifications

Spec	Original CRT	Kongto LCD
Technology	9-inch Monochrome CRT	8-inch TFT-LCD Industrial Panel
Resolution	640x400 / 640x480	800x600
Brightness	~200 cd/m2	350-450 cd/m2
Lifespan	~15,000 hrs	50,000+ hrs
Power	DC 24V	DC 24V (original)
Interface	20-pin Honda MR-20M	20-pin Honda (direct compatible)
Safety	High voltage (10-15kV)	Low voltage DC
Weight	—	1.5 kg

Compatible Systems

FANUC Series 0 / 0-Mate / 0-TMate
FANUC 0i-A / 0i-B / 0i-C / 0i-D
FANUC Series 16i / 18i / 21i
All CNC machines with FANUC A61L-0001-0072 display

Common CRT Failure Symptoms

Blank screen / no power — Flyback transformer failure, most common in aging CRTs
Dim or unreadable display — CRT phosphor wear after 15,000+ hours of operation
Flickering or image distortion — Capacitor degradation in sync circuits
No image / raster only — Video amplifier or electron gun failure
Intermittent display — Loose internal connections or cold solder joints

Our LCD module eliminates all CRT-related failure modes permanently. Higher brightness, lower power, no high voltage.

Frequently Asked Questions

Does this work with my CNC machine?

Installation time and difficulty?

Image quality vs original CRT?

Warranty and support?

What Our Customers Say

"Ordered for our FANUC 16i. Arrived quickly, installed easily. Great upgrade solution."

— Raj P., Mumbai, India (Jun 2026)

"Brilliant upgrade. Our machine shop has replaced 5 CRTs with Kongto LCDs."

— James W., Toronto, Canada (Apr 2026)

"Perfect fit for our CNC lathe. No system modifications required. Very happy."

— Anders N., Oslo, Norway (Mar 2026)

Warranty & Service

2-Year Warranty — Lifetime Technical Support — Worldwide Shipping
Factory direct from Shenzhen, China. Ships within 24 hours.
Email: [email protected] | WhatsApp: +86-13686889647
No CNC parameter changes needed — Plug and play, your machine programs and settings stay intact.
